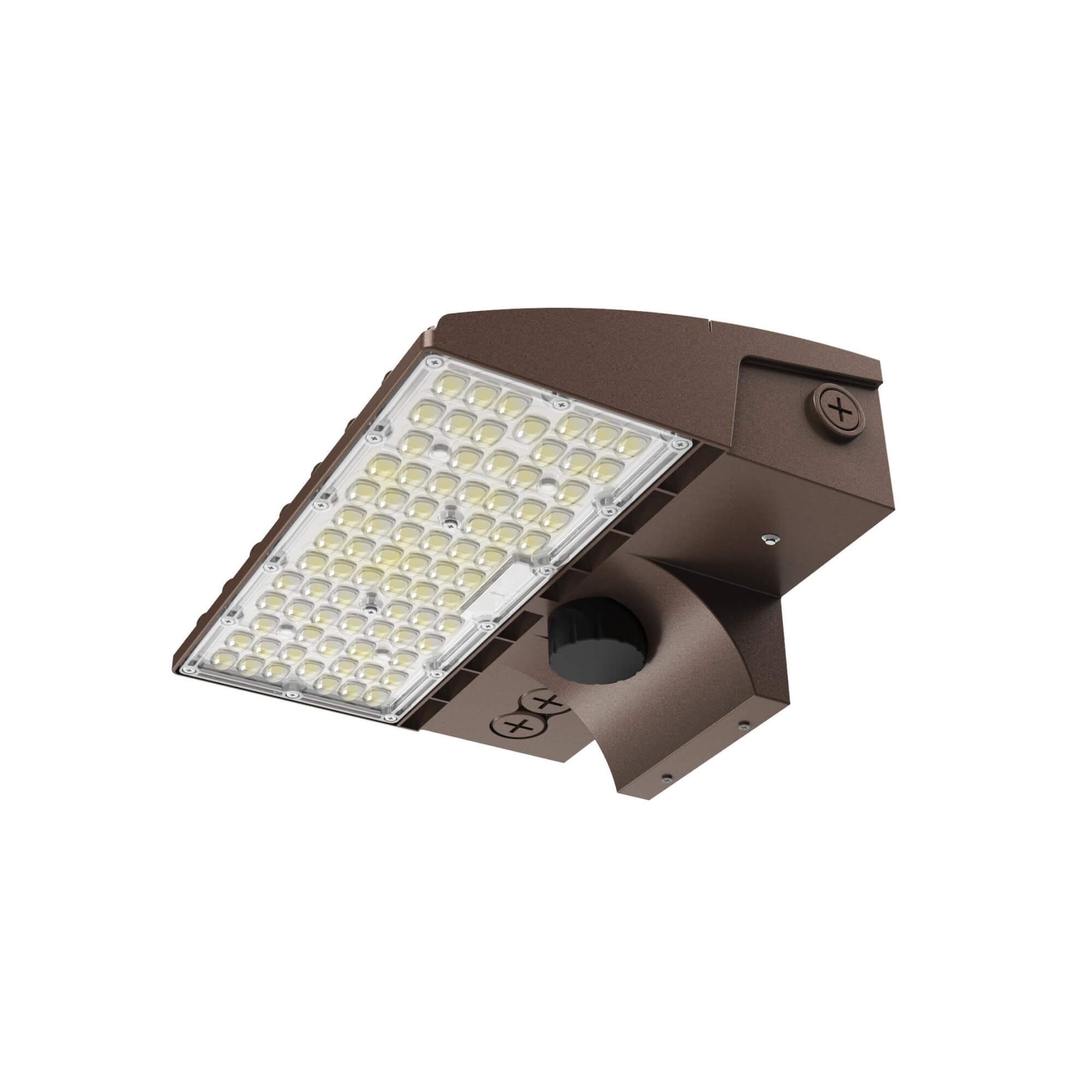

Eagleshine Wall Packs Wall Pack EAGAL-G7005


LED area light fixtures are used in parking lots, airports, college and corporate campuses, shopping centers and strip malls, business complexes, hospitals, residential neighborhoods, arenas, parks and various outdoor spaces. These outdoor area lights provide a wide and steady beam of light to keep a location illuminated through the night.


Watts(W): 90-120-150W
Size: 340mm/13.39" x 359.7mm/14.16"
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

340mm/13.39" x 359.7mm/14.16"

Watts(W)

90-120-150W, 180-240-300W

Lumen(lm)

12600-16800-21000 lm, 25200-33500-4200 lm

CCT(K)

3000K/3500K/4000K/5000K

Qualifications

DLC Standard/DLC Premium. ETL/CETL List

Design and Installation

Feactures

Available
Switchable Color and Adjustable Lumen Technology. Faster installation and
cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth"

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

Organize content into multiple columns to share useful information to your customers about your products, values...

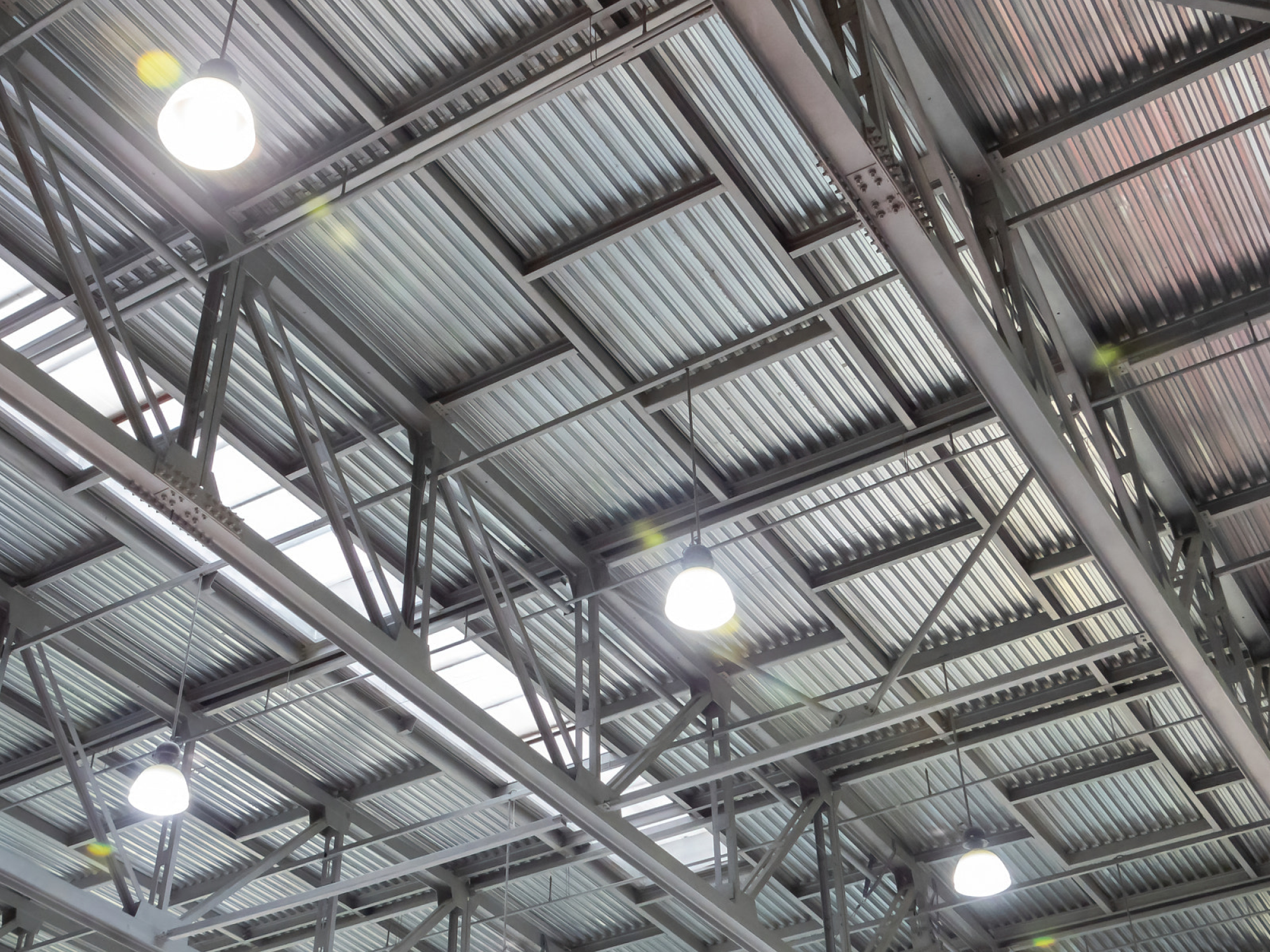

Warehouse

Parking Lot

Specification Comparison

EAGAL-150W-G7005
EAGAL-300W-G7005
Size 340mm/13.39" x 359.7mm/14.16" 340mm/13.39" x 359.7mm/14.16"
Nominal Wattage 90-120-150W 180-240-300W
Input Voltage AC 120-277V, 120-347V  AC 120-277V, 120-347V
Lumen Delivered 12600-16800-21000 lm 25200-33500-42000 lm
Nominal Efficacy 140 lm/w 140 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
