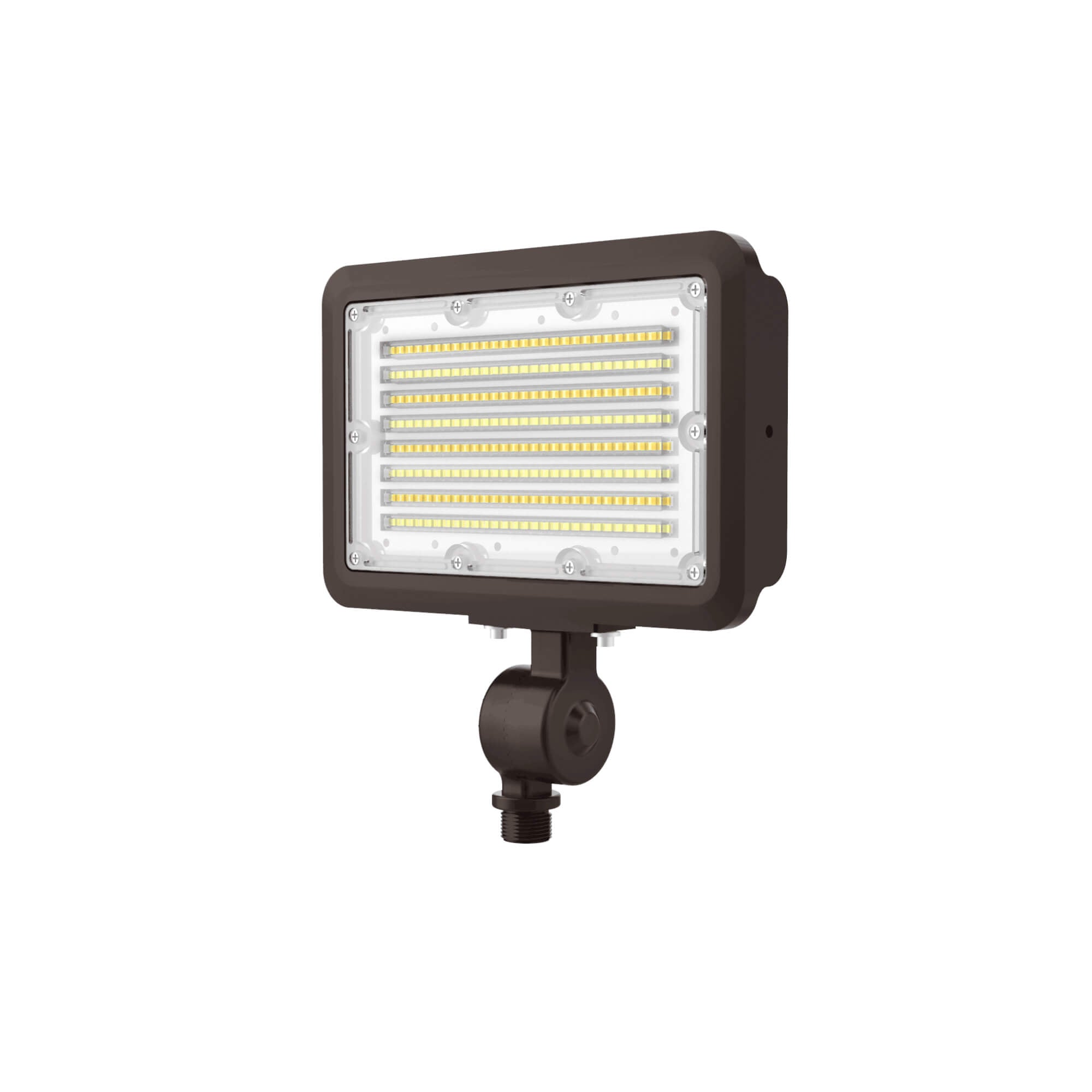

Eagleshine Wall Packs EAGFL-CS006
LED area light fixtures are used in parking lots, airports, college and corporate campuses, shopping centers and strip malls, business complexes, hospitals, residential neighborhoods, arenas, parks and various outdoor spaces. These outdoor area lights provide a wide and steady beam of light to keep a location illuminated through the night.
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
220mm/8.66" x 115mm/4.53", 270mm/10.63" x 193mm/7.60", 319mm/12.56" x 262mm/10.31"
36W-48W-60W, 60W-80W-100W, 90W-120W-150W, 120W-160W-200W, 144W-192W-240W
4680-6240-7800 lm, 7800-10400-13000 lm, 11700-15600-19500 lm, 15600-20800-26000 lm, 18720-24960-31200 lm
3000K/3500K/4000K/5000K
DLC Standard/DLC Premium.
ETL/CETL List
Design and Installation
Feactures
Available
Switchable Color and Adjustable Lumen Technology. Faster installation and
cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth"
Accessories
SENSOR control, Emergency kits, suspension kits.
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...
Warehouse
Parking lot
Specification Comparison
 EAGFL-60W-CS006
|
EAGFL-100W-CS006
|
EAGFL-150W-CS006
|
EAGFL-200W-CS006
|
EAGFL-240W-CS006
|
|
| Size | 220mm/8.66" x 115mm/4.53" | 220mm/8.66" x 115mm/4.53" | 270mm/10.63" x 193mm/7.60" | 270mm/10.63" x 193mm/7.60" | 319mm/12.56" x 262mm/10.31" |
| Nominal Wattage | 36W-48W-60W | 60W-80W-100W | 90W-120W-150W | 120W-160W-200W | 144W-192W-240W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 4680-6240-7800 lm | 7800-10400-13000 lm | 11700-15600-19500 lm | 15600-20800-26000 lm | 18720-24960-31200 lm |
| Nominal Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
