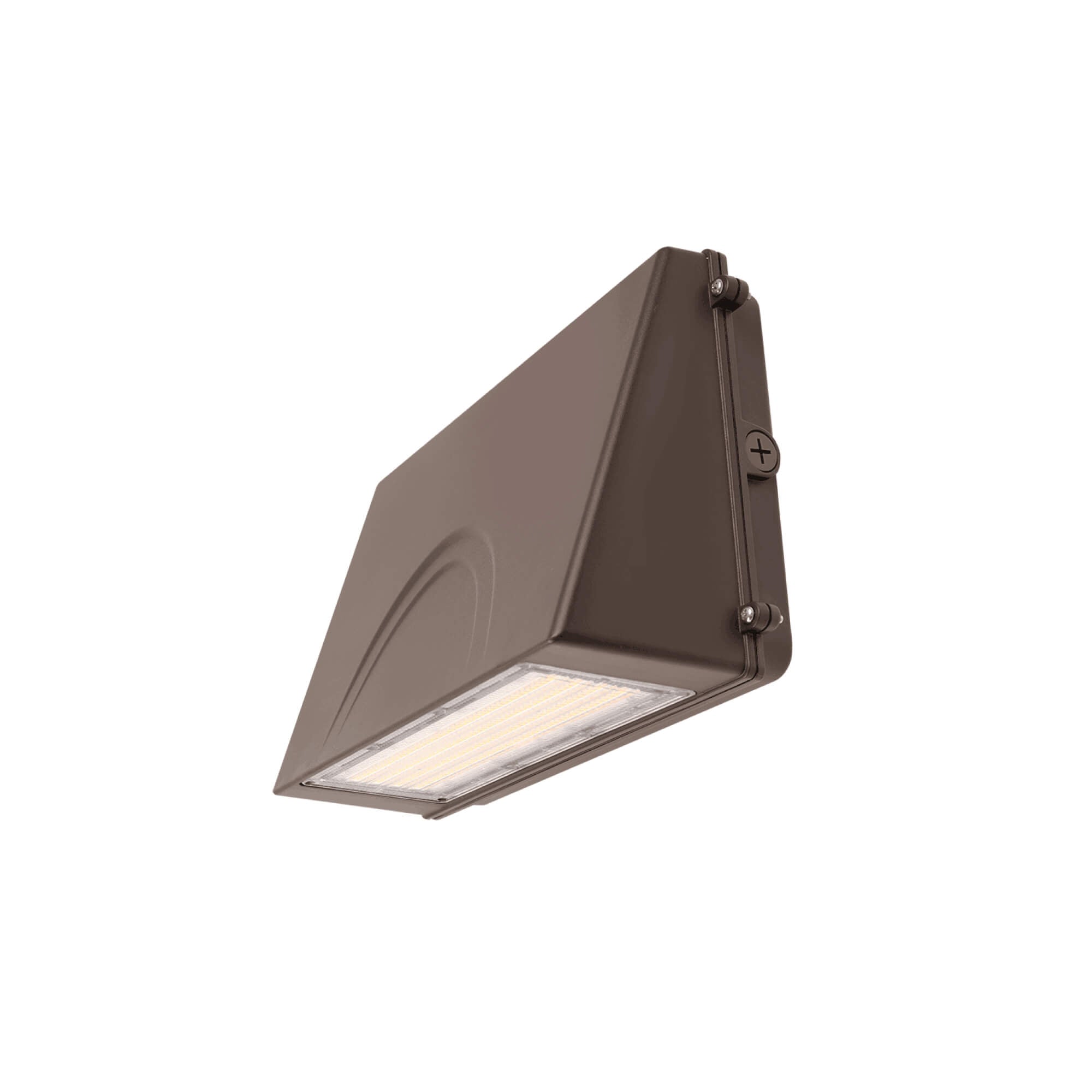

Eagleshine Wall Packs EAGWP-FC02
Eagleshine LED Wall Packs with different features to fit any outdoor lighting application. Whether it is efficiency, durability, or other particular lighting characteristics that are important to you, there is a Eagleshine LED Wall Pack to provide the perfect lighting solution. At Eagleshine, the future is field adjustable. That means more and more Eagleshine LED products including wall packs are being designed and produced with selectable power and CCT to provide unmatched flexibility. Selectable wattage allows you to toggle between three different lumen outputs. Adjusting illumination can allow for installation flexibility, and gives you the option to maximize energy savings or light output. CCT tunability allows you to choose from three color temperatures with the flick of a switch, giving you the freedom to customize an area's appearance with a single fixture.
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
360.8mm/14.20"x153mm/6.02"x235.5mm/9.27"
40W, 50W, 60W, 100W, 120W
4900 lm-16800 lm
5200 lm-15600 lm
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available
Switchable Color and Adjustable Lumen Technology. Faster installation and
cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth"
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...
Parking Lot
Warehouse
Specification Comparison
 EAGWP-40W-FC02
|
EAGWP-50W-FC02
|
EAGWP-60W-FC02
|
EAGWP-100W-FC02
|
EAGWP-120W-FC02
|
|
| Size | 360.8mm/14.20"x153mm/6.02"x235.5mm/9.27" | 360.8mm/14.20"x153mm/6.02"x235.5mm/9.27" | 360.8mm/14.20"x153mm/6.02"x235.5mm/9.27" | 360.8mm/14.20"x153mm/6.02"x235.5mm/9.27" | 360.8mm/14.20"x153mm/6.02"x235.5mm/9.27" |
| Nominal Wattage | 40W | 50W | 60W | 100W | 120W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 1950 lm | 2600 lm | 2600 lm | ||
| Nominal Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
