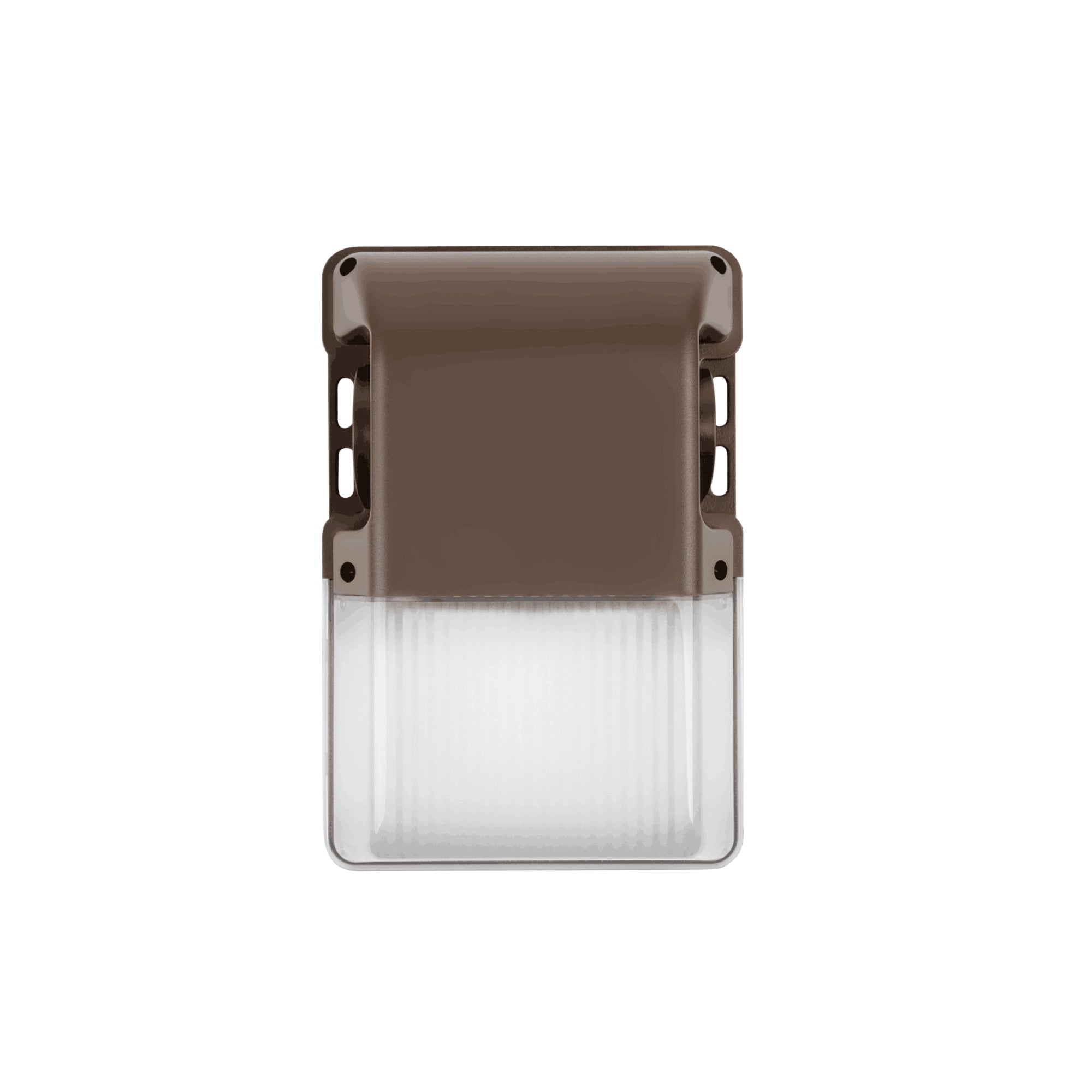

Eagleshine Wall Packs WALL PACKS EAGWP-MIN02


LED Wall Packs are shock resistant and offer high lumens for bright light. Eagleshine's cost-effective, commercial grade wall packs are ideal for outdoor spaces such as building exteriors, driveway parking and garages due to their high output and added security. These long lasting IP65 rated wall packs provide dependable outdoor lighting for your commercial or industrial business. Reduce maintenance time and save money on your power bill with long lasting and energy efficient LEDs, the better alternative.


Watts(W): 15W
Size: 223mm/8.78"X150.5mm/5.93"X 65mm/2.56"
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

223mm/8.78"X150.5mm/5.93"X 65mm/2.56"

Watts(W)

15W, 20W, 25W

Lumen(lm)

1950 lm-3250 lm

CCT(K)

3000K/3500K/4000K/5000K

Qualifications

DLC Standard/DLC Premium. ETL/CETL List

Design and Installation

Feactures

Available
Switchable Color and Adjustable Lumen Technology. Faster installation and
cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth"

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

Organize content into multiple columns to share useful information to your customers about your products, values...

Parking Lot

Warehouse

Specification Comparison

EAGWP-15W-MIN02
EAGWP-20W-MIN02
EAGWP-25W-MIN02
Size 223mm/8.78"X150.5mm/5.93"X 65mm/2.56" 223mm/8.78"X150.5mm/5.93"X 65mm/2.56" 223mm/8.78"X150.5mm/5.93"X 65mm/2.56"
Nominal Wattage 15W 20W 25W
Input Voltage AC 120-277V, 120-347V  AC 120-277V, 120-347V  AC 120-277V, 120-347V
Lumen Delivered 1950 lm 2600 lm 3250 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80
Power Factor >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years
