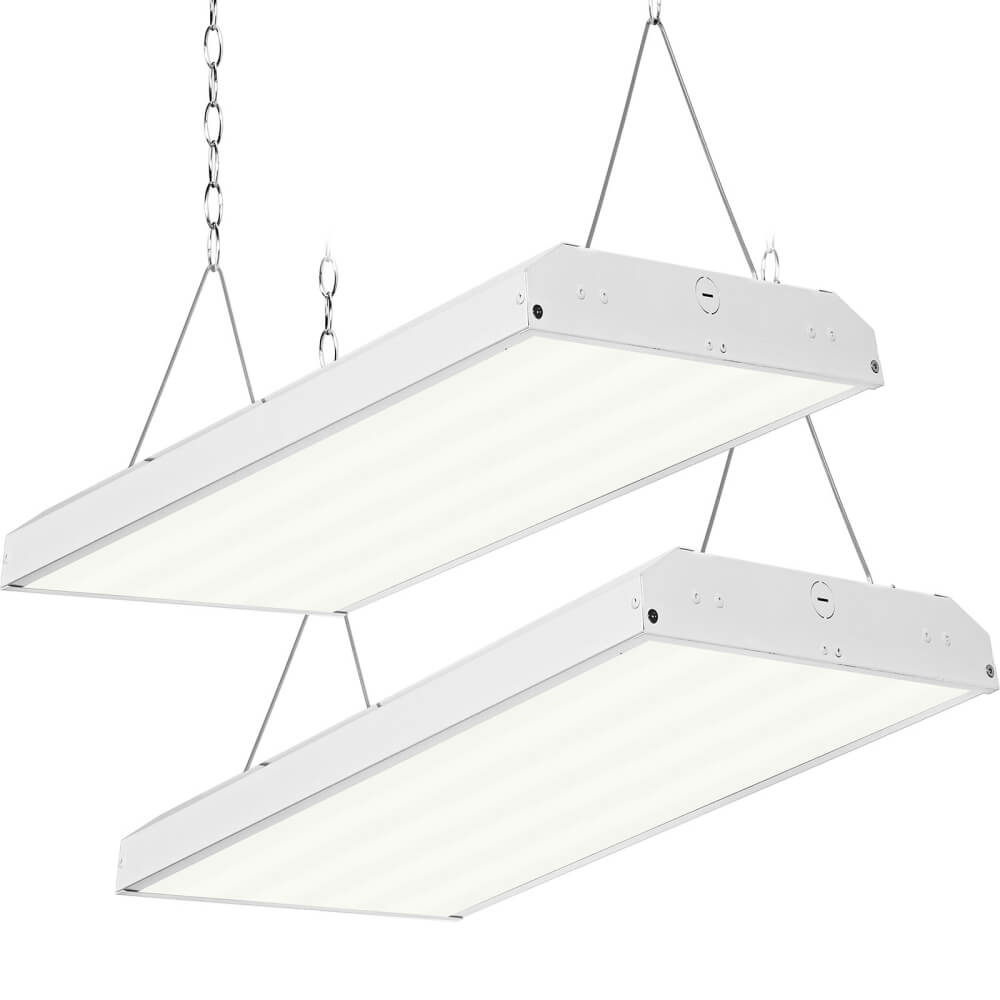

LED Linear High Bay Light 80W-325W 10800 lumen-43875 lumen Compatible with Industrial 120-277V 0-10V dimming PIR sensor emergency control ready
The Linear LED High Bay from Halcon Lighting provides high-performance luminaires for industrial applications. This is making it easier and quicker to install. Built with quality to last and performance to get the job done. Available Switchable White and Adjustable Lumen Technology.
l 80W-325W various wattage selectable,
l 135 LPW, comes in two lengths 2ft, 4ft
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l Garage, workshop, warehouse, factory using
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2ft, 4ft
80W, 100W, 140W, 165W, 225W, 325W
10400 lm-42250 lm
Value
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...

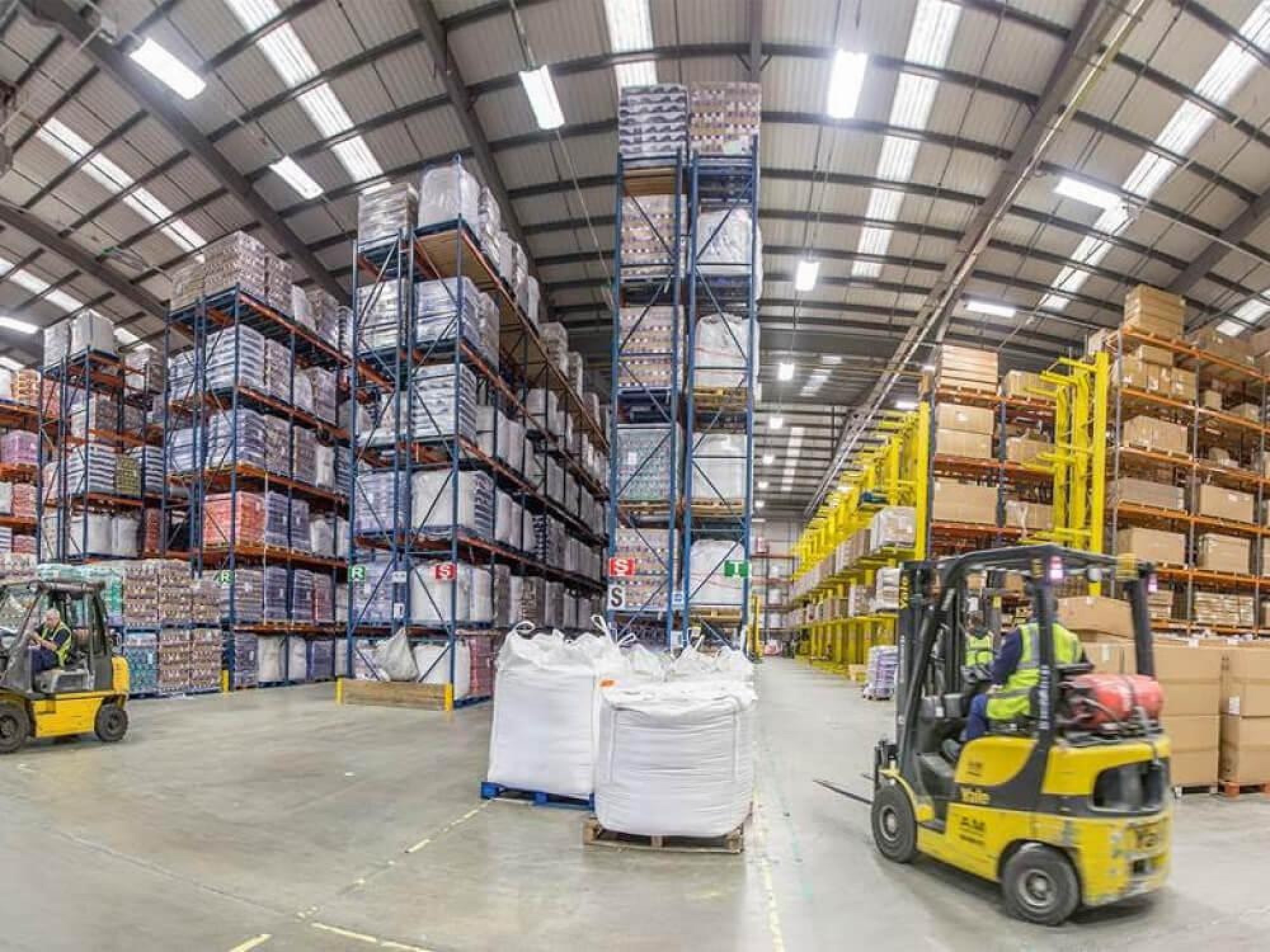

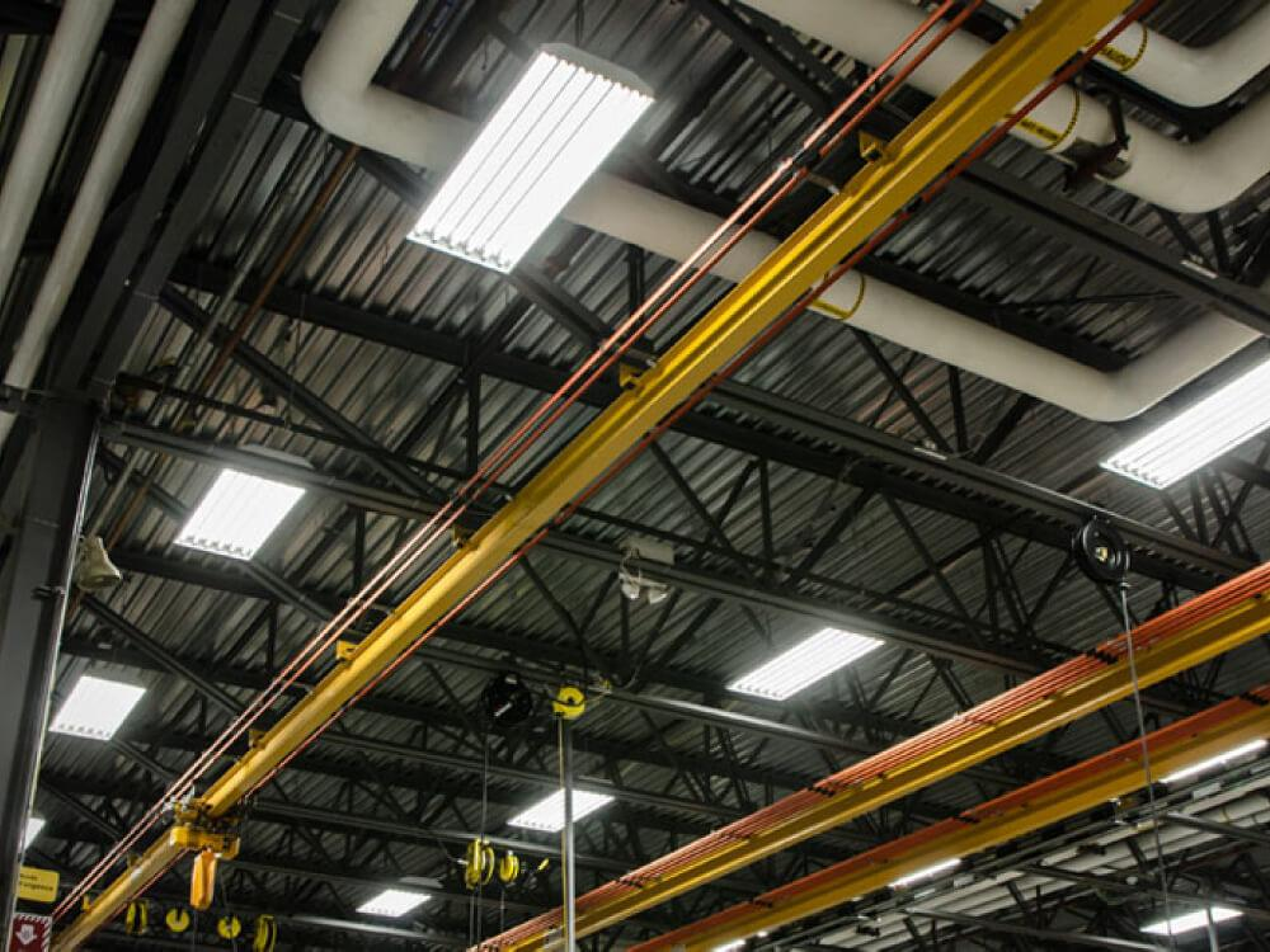

factory
factory
factory
Specification Comparison

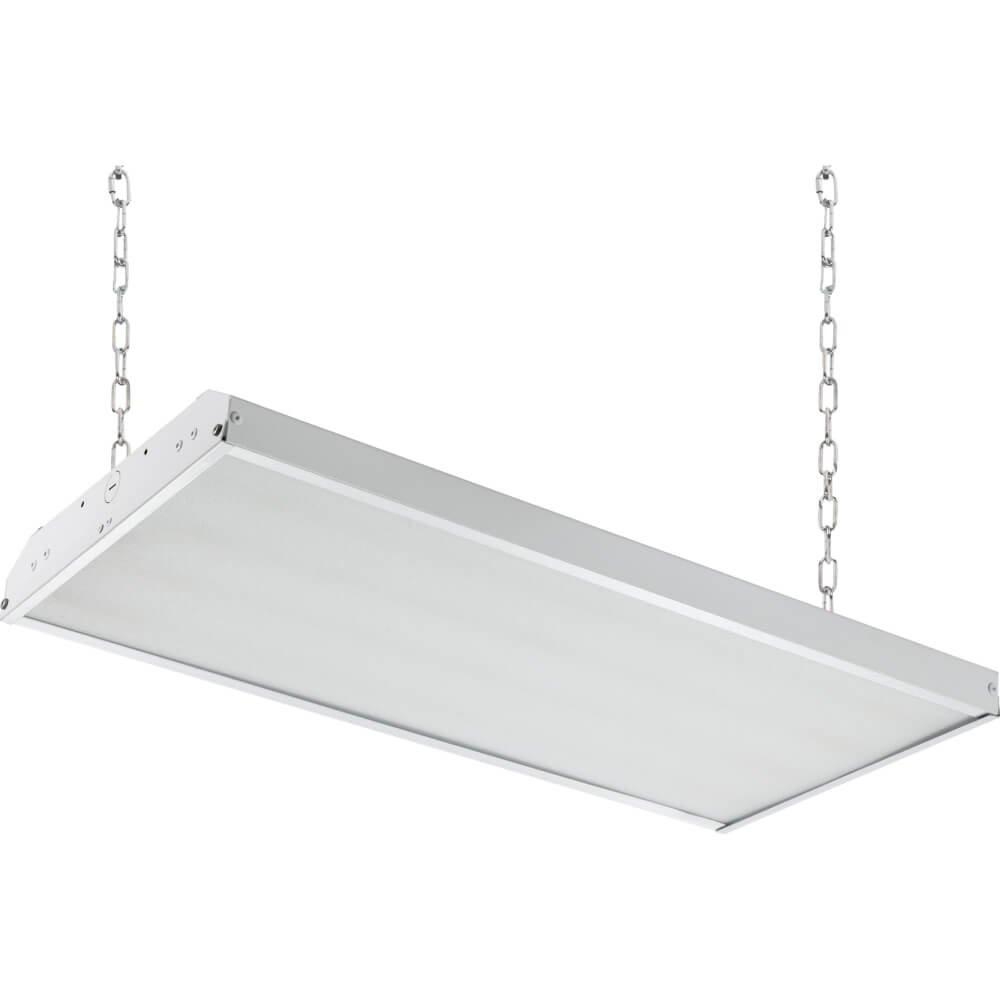

 HG-L225-80W/2ft
|
HG-L225-100W/2ft
|
HG-L225-140W/2ft
|
HG-L225-165W/2ft
|
HG-L225-220W/2ft
|

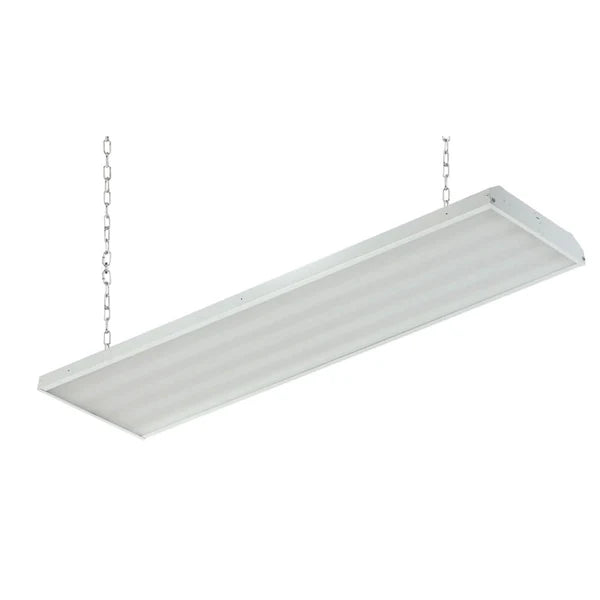

HG-L225-165W/4ft
|
HG-L225-225W/4ft
|
HG-L325W/4ft
|
|
| Size | 630x320x52.5mm | 606x320x52.5mm | 606x320x52.5mm | 604x440x52.5mm | 606x440x52.5mm | 1165x320x52.5mm | 1165x320x52.5mm | 1165x320x52.5mm |
| Nominal Wattage | 80W | 100W | 140W | 165W | 220W | 165W | 225W | 325W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 10400 lm | 13000 lm | 18200 lm | 21450 lm | 28600 lm | 29250 lm | 42250 lm | 42250 lm |
| Nominal Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
