Modern architectural led troffer 20W/30W/40W/50W Wattage Tunable CCT Tunable 3000K to 5000K ETL DLC listed Emergency back and sensor control ready

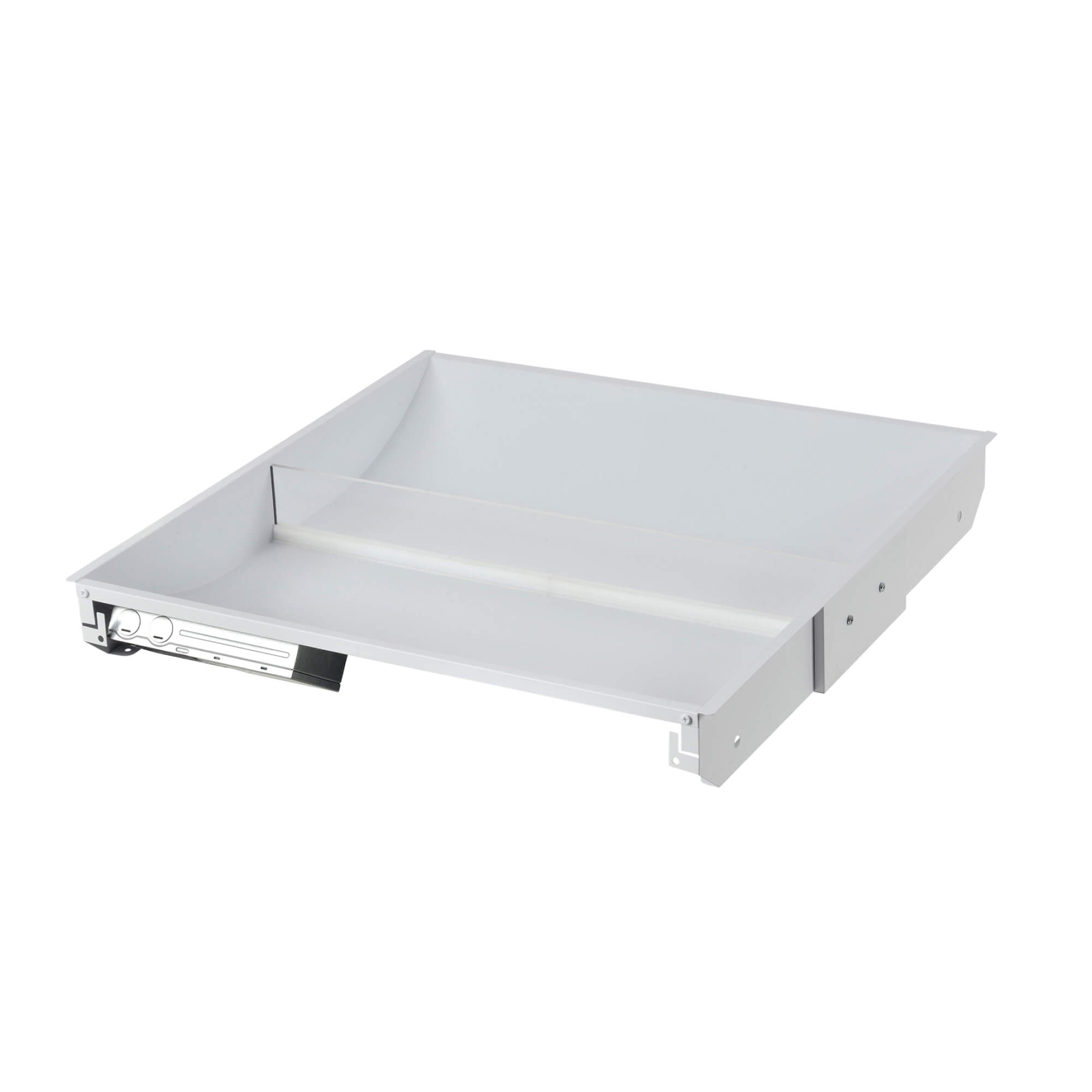

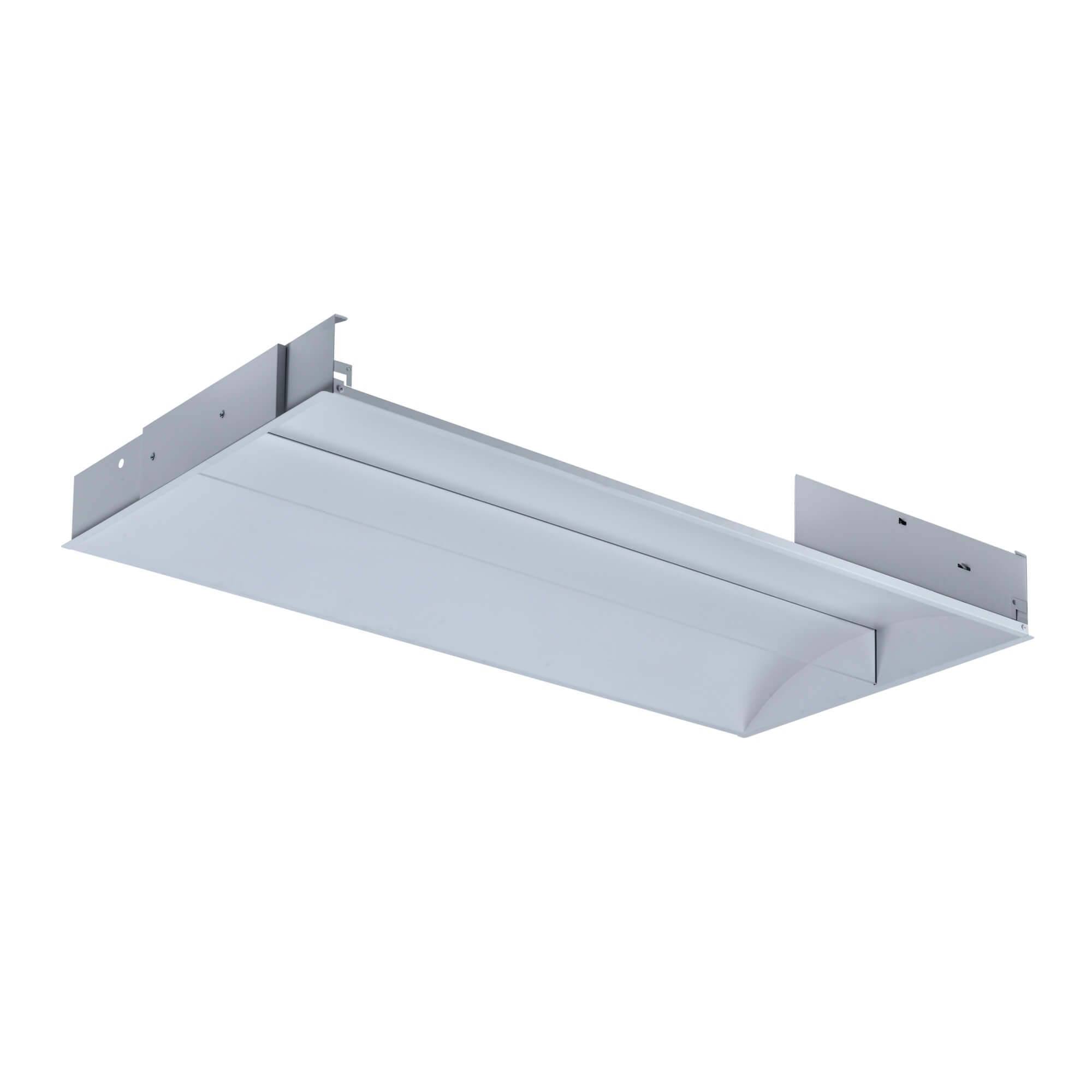

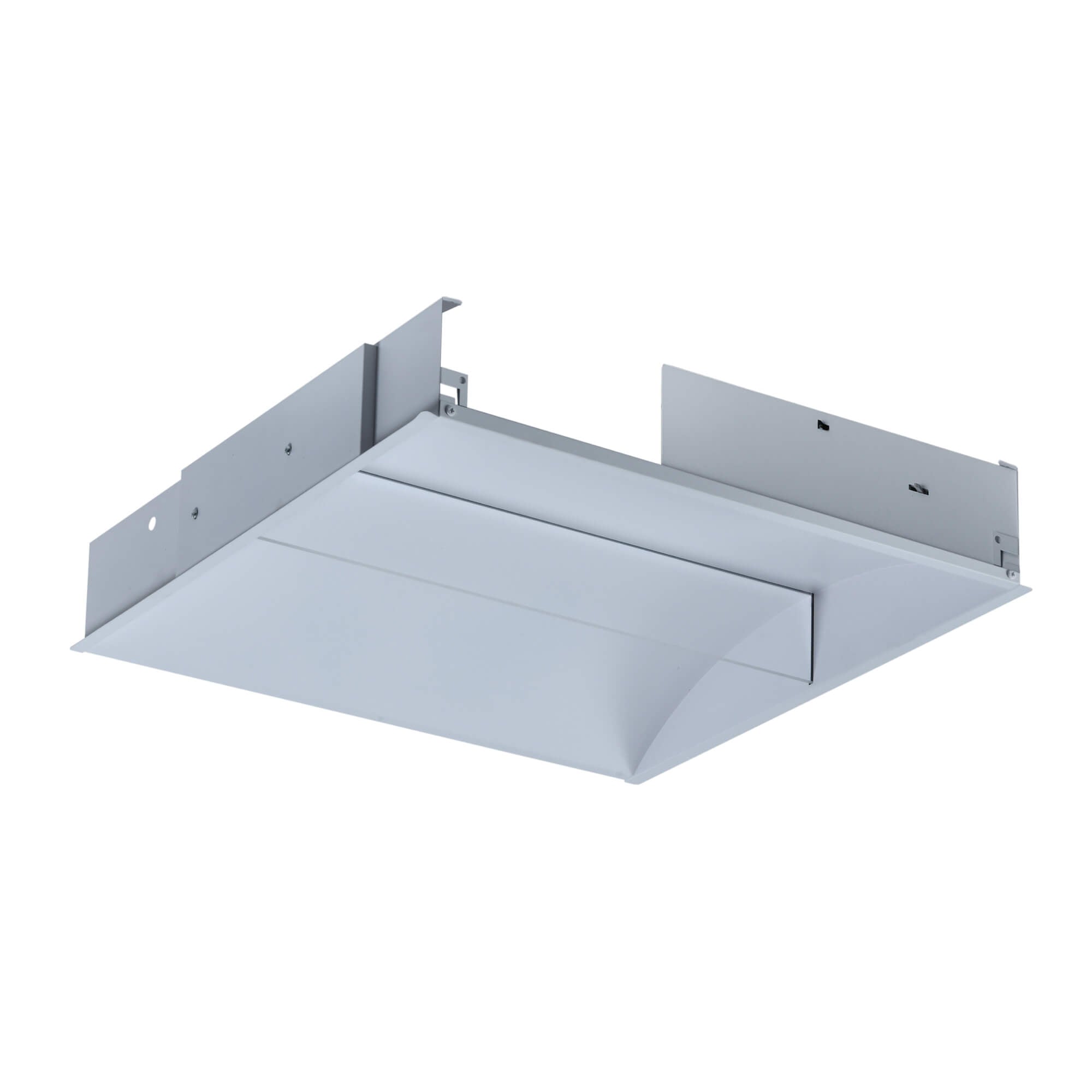

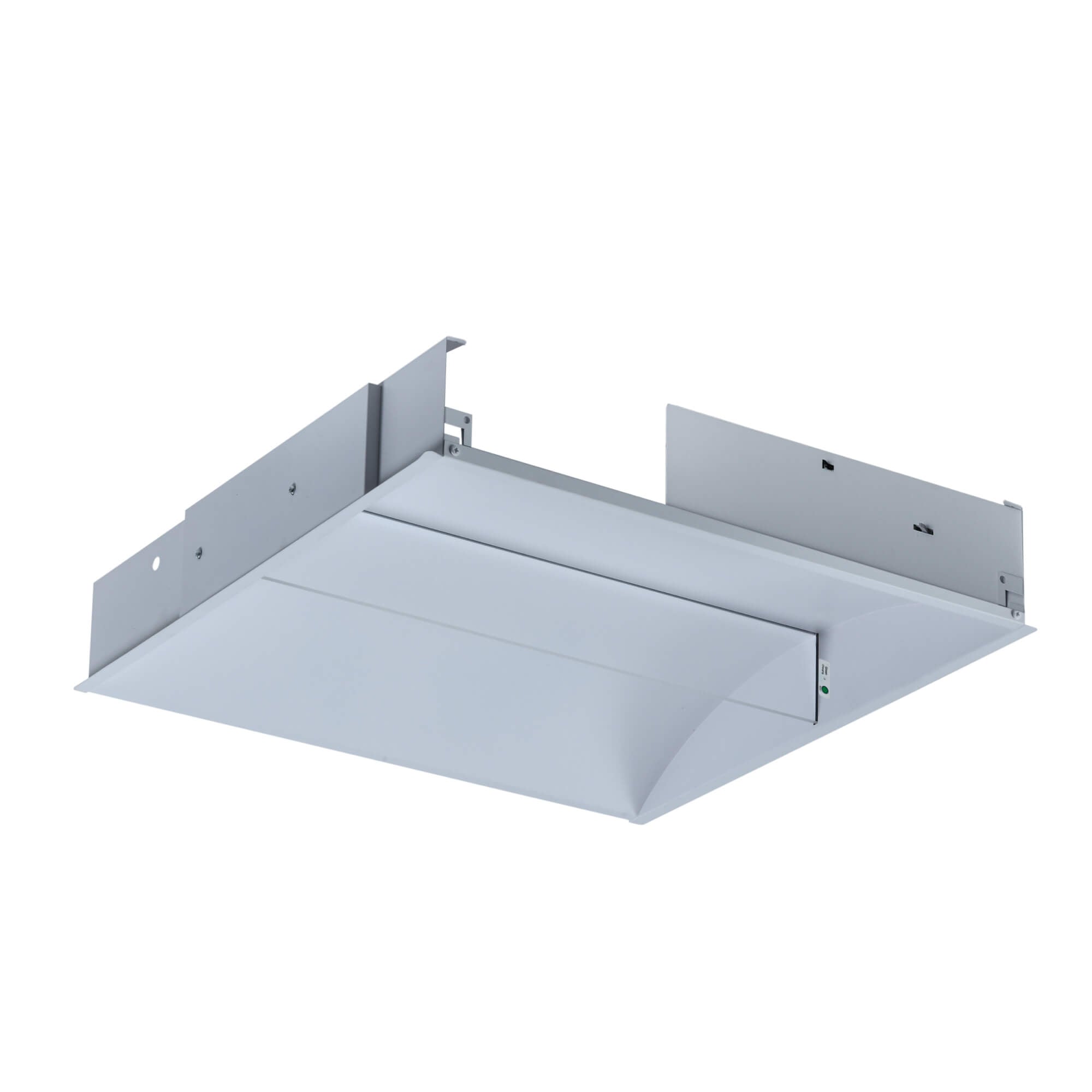

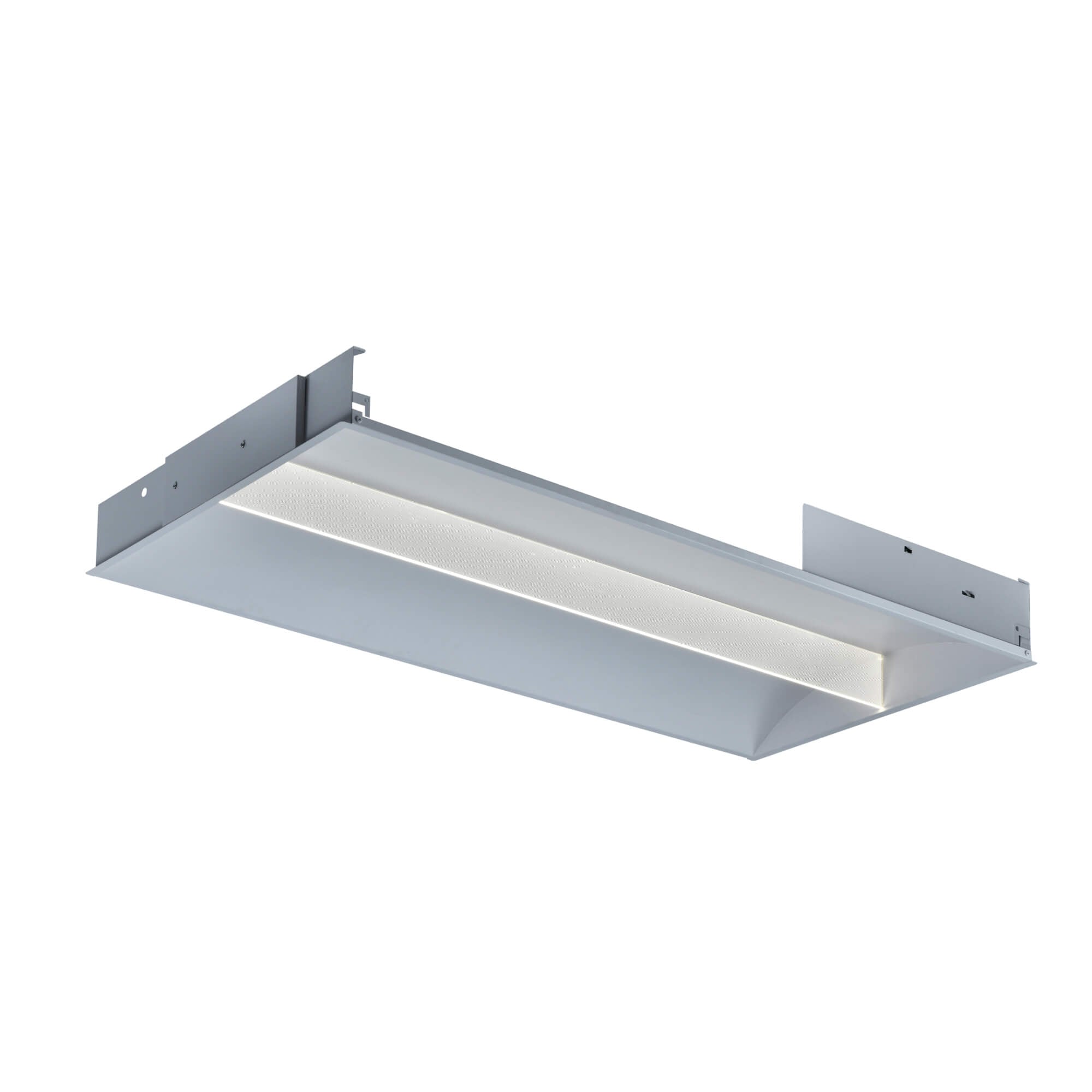

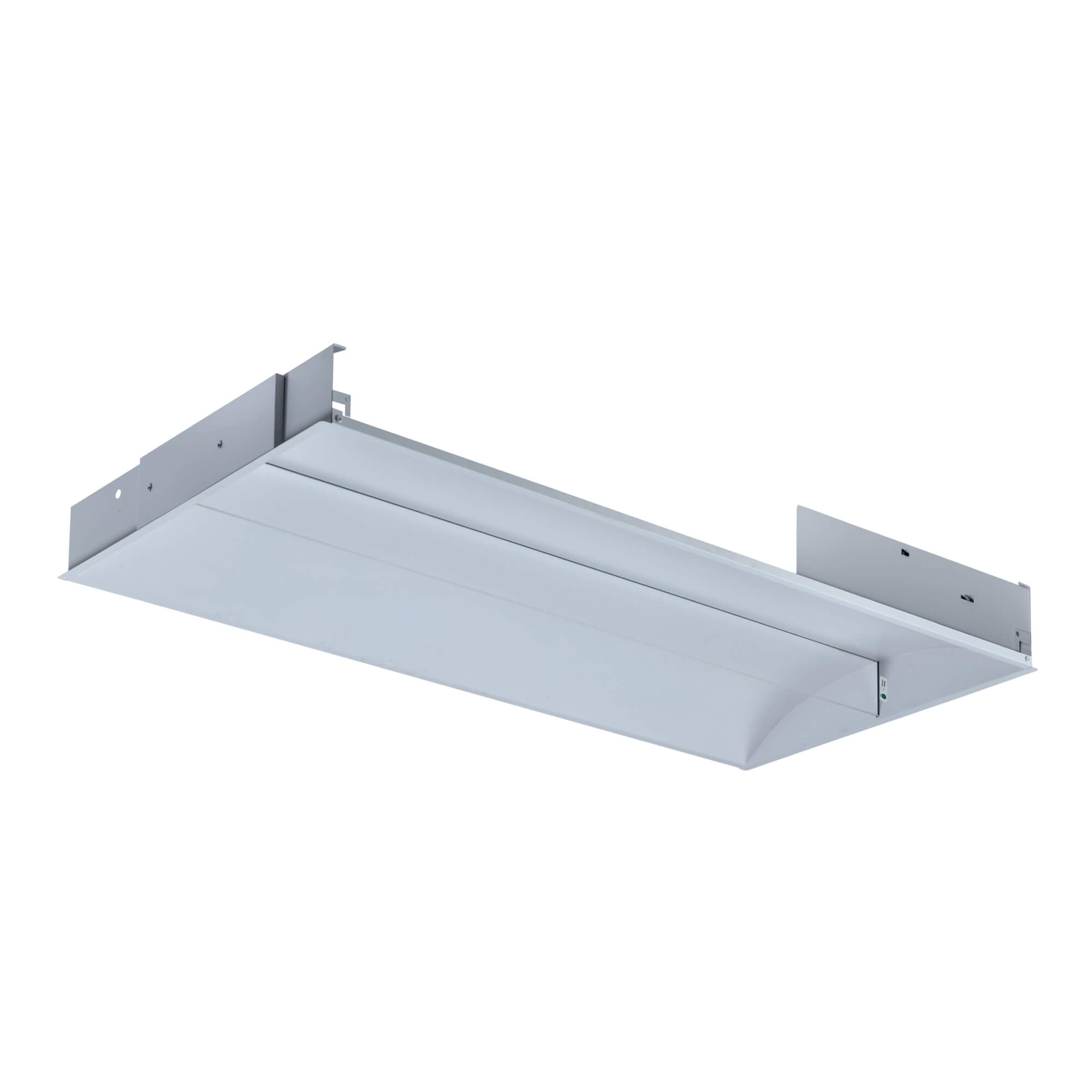

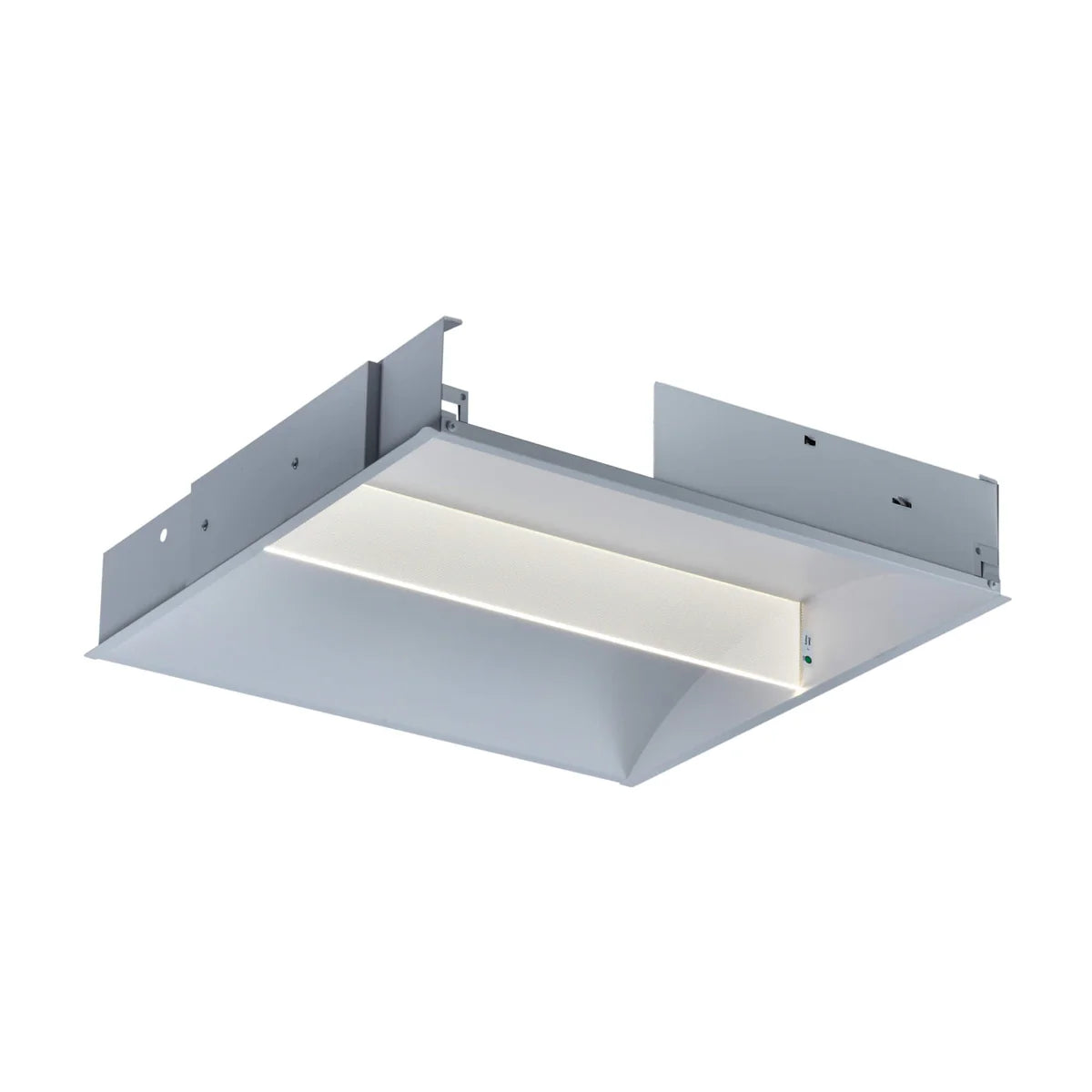

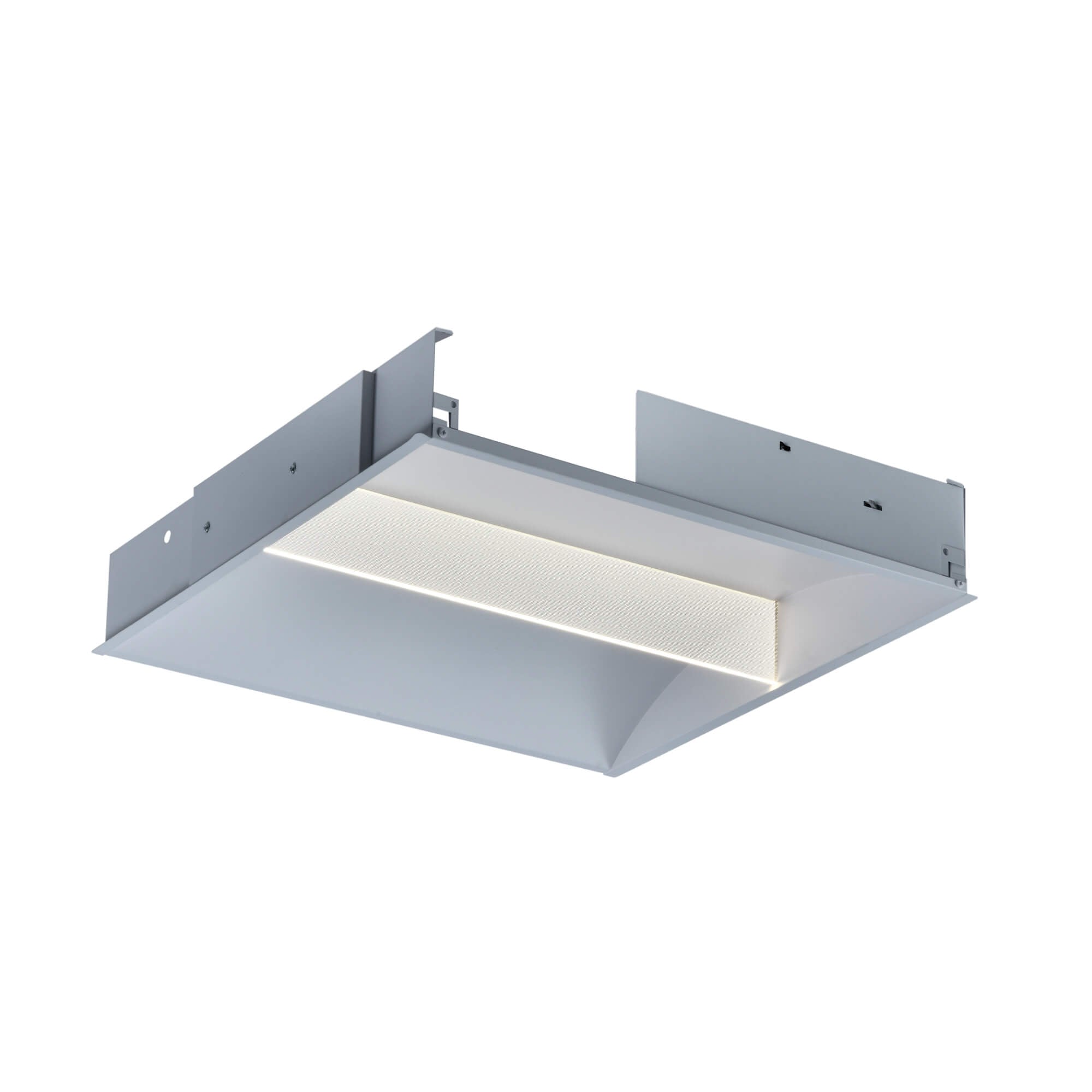

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.
l 20W-70W various wattage selectable,
l 125 LPW, comes in 2'x2', 2'x4', 1'x4'
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l Office, education, health care, hospitality and retail interiors
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2'x2', 2'x4'
24W/35W/40W, 30W/40W/50W, 30W/35W/40W/50W, 50W/60W/72W
4600 lm-8280 lm
3000K/3500K/4000K/5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Specification Comparison
E1907-22
|
E1907-24
|
E1907-24
|
E1907-24
|
|
Size | 603x603x80mm | 603x603x80mm | 1213x603x80mm | 1213x603x80mm |
Nominal Wattage | 24W/35W/40W | 30W/40W/50W | 30W/35W/40W/50W | 50W/60W/72W |
Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
Lumen Delivered | 4600 lm | 5750 lm | 5750 lm | 8280 lm |
Nominal Efficacy | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w |
CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
CRI | >80 | >80 | >80 | >80 |
Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
Dimming | 0-10V | 0-10V | 0-10V | 0-10V |
Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
