2x2 2x4 model architectural led troffer panel light 20/30/40W/50W 4 Color Options 3000K to 5000K Dimmable Drop Ceiling Lights 2500 to 6250 Lumens Damp Rated 120-277V, ETL DLC listed

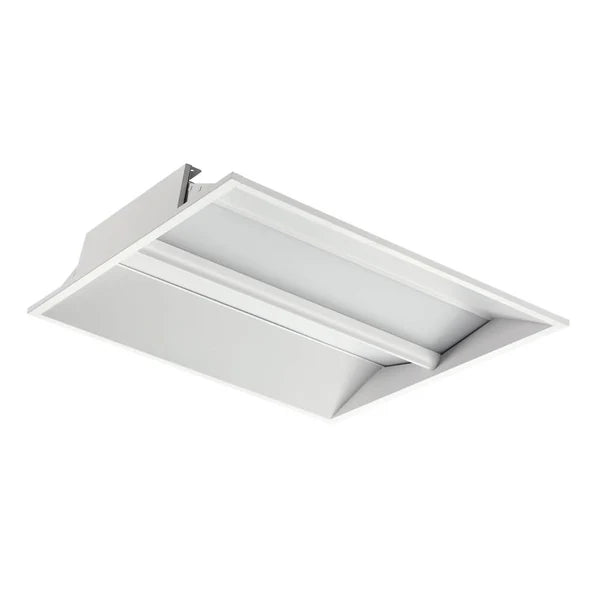

The Eagleshine Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.

l 20W-70W various wattage selectable,
l 125 LPW, comes in 2'x2', 2'x4', 1'x4'
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  O
ffice, education, health care, hospitality and retail interiors


Watts(W): 20W
Size: 2'x2'
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

2'x2', 2'x4'

Watts(W)

50W/42W, 36W/24W

Lumen(lm)

2760 lm-5750 lm

Heading

Value

CCT(K)

3000K / 3500K / 4000K / 5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification Comparison

Size 603x603x90mm 1213x603x90mm
Nominal Wattage 50W/42W 36W/24W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2760 lm 5750 lm
Nominal Efficacy 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
