LED indept architectural troffer 2x2 2x4 1x4 up to 6000 lumen ETL listed 120-277V 0-10V dimming emergency sensor control ready

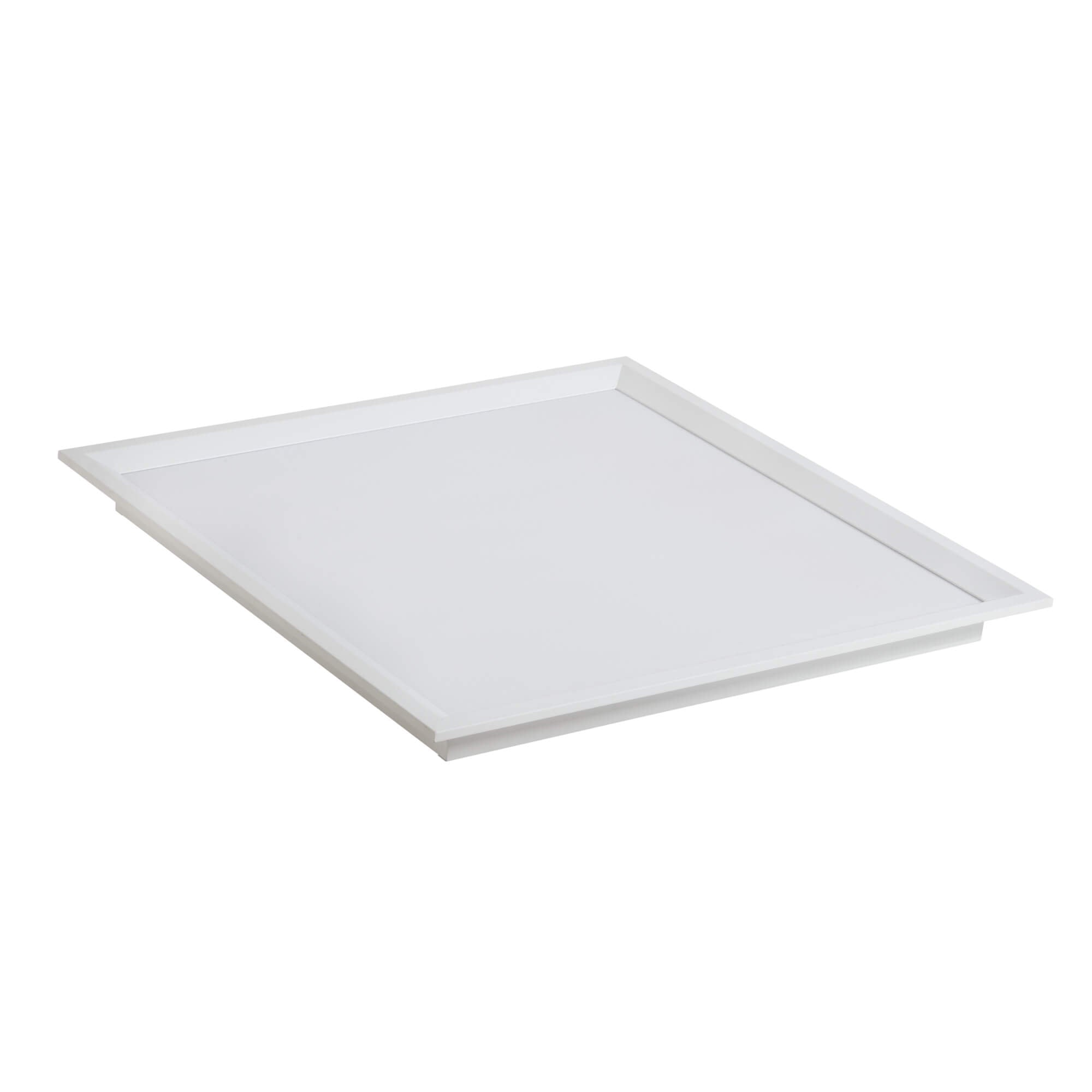

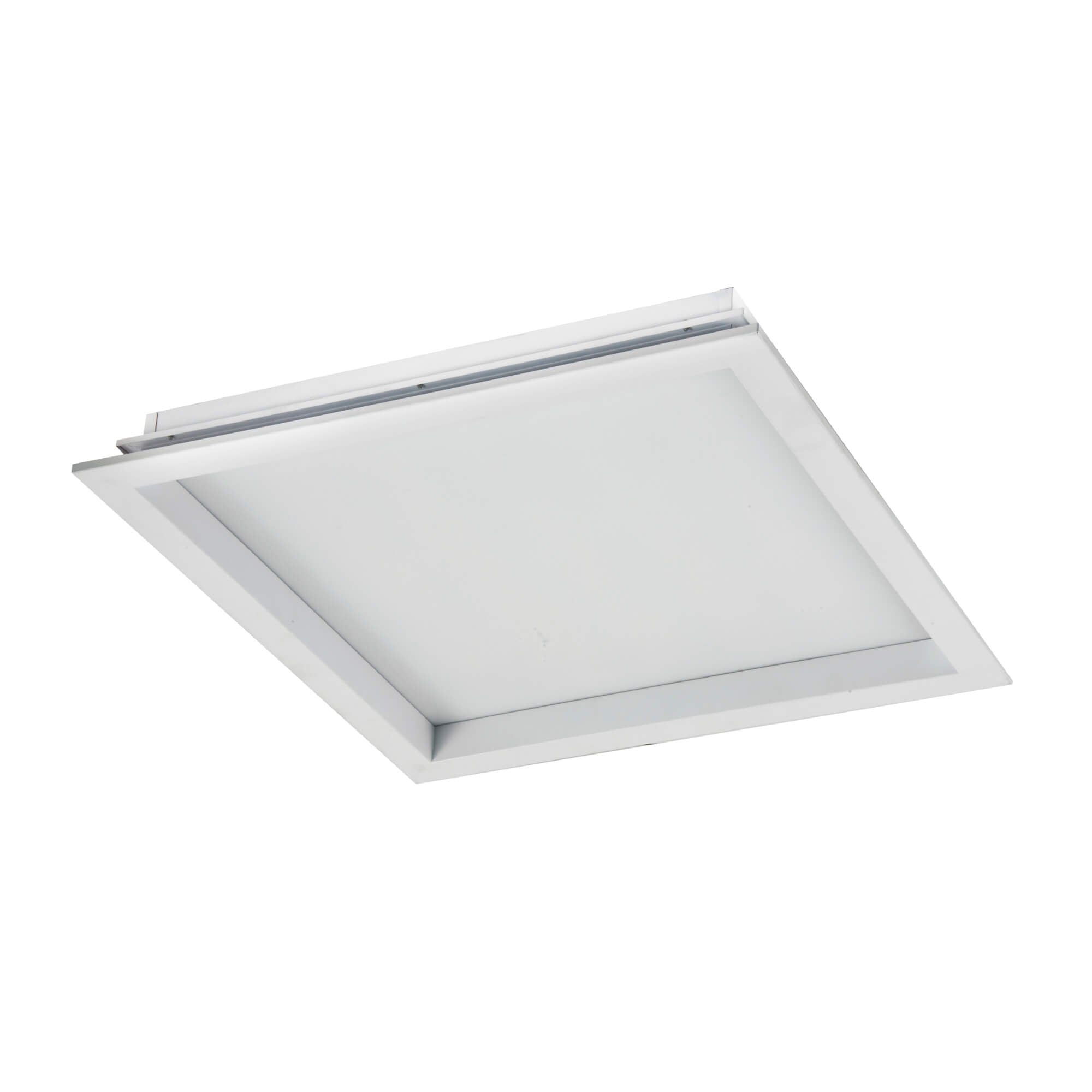

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light. to generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area. This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.


Watts(W): 24W/35W/40W
Size: 2'x2'
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.


2'x2', 2'x4'


24W/35W/40W, 30W/35W/40W/50W


4600 lm-5750 lm




3000K / 3500K / 4000K / 5000K


DLC Standard / DLC Premium.ETL / CETL List

Design and Installation


Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth


SENSOR control, Emergency kits, suspension kits.

Specification Comparison

Size 603x603x50mm 1213x603x50mm
Nominal Wattage 24W/35W/40W 30W/35W/40W/50W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 24W/35W/40W 5750 lm
Nominal Efficacy 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
