LED linear linkable light strip diffuser 2ft 4ft 8ft (5400 lumen to 11475 lumen) CCT 3000K-5000K and watts selectable 0-10V Dimmable Surface and pendant Mount ETL & DLC Listed
The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.
l 20W-85W various wattage selectable,
l 135 LPW, comes in 2ft,4ft, 8ft
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l office, education, health care, hospitality, corridors, stairwells, schools and utility areas.
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2ft, 4ft, 8ft
15/20/25W, 20/25/40W, 55/60/65W, 70/80/85W
5400 lumen to 11475 lumen
Value
3000K/3500K/4000K/5000K
DLC Standard/DLC.
ETL/CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...

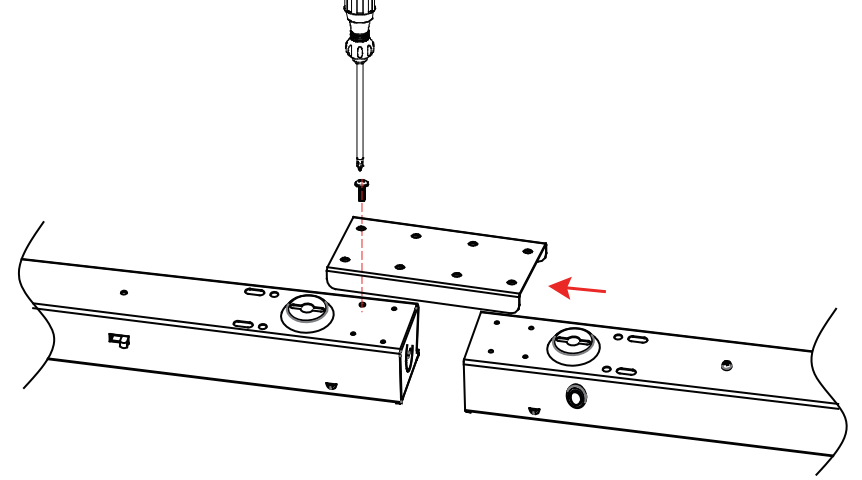

Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

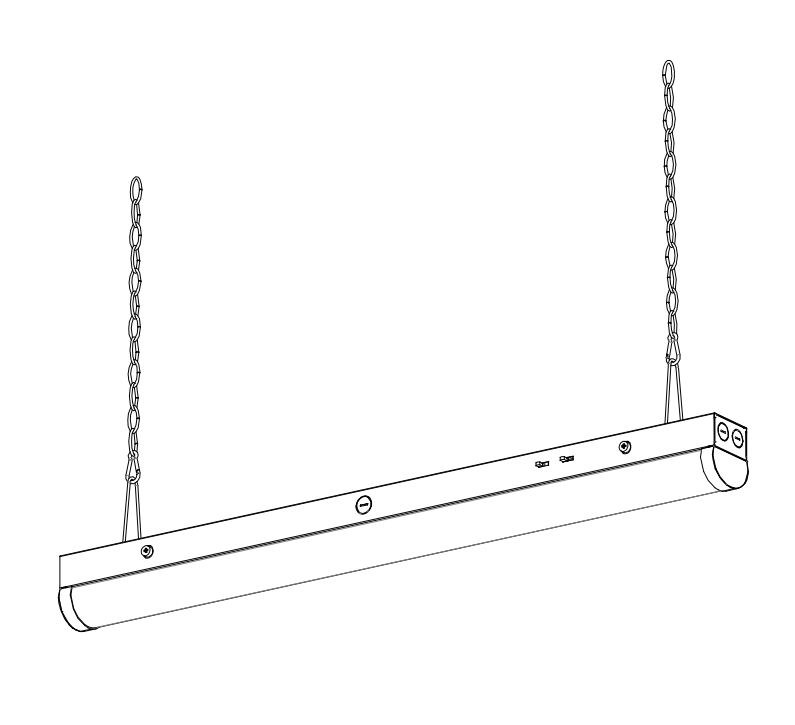

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...
Office Unit
Specification Comparison
 HG-L205C-252F
|
HG-L205C-404F
|
HG-L205C-658F
|
HG-L205C-858F
|
|
| Size | 609x75x83mm | 1200x75x83mm | 1200x75x83mm | 1200x75x83mm |
| Nominal Wattage | 15/20/25W | 20/25/40W | 55/60/65W | 55/60/65W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 3250 lm | 5200 lm | 8450 lm | 8450 lm |
| Nominal Efficacy | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
