Linear High bay 80W 140W 165W 225W or 325W (10800 lumen-43875 lumen) Wattages & Color Selectable 4000K-5000K Universal Voltage 120 277V 0-10V dimming Bluetooth sensor emergency back up

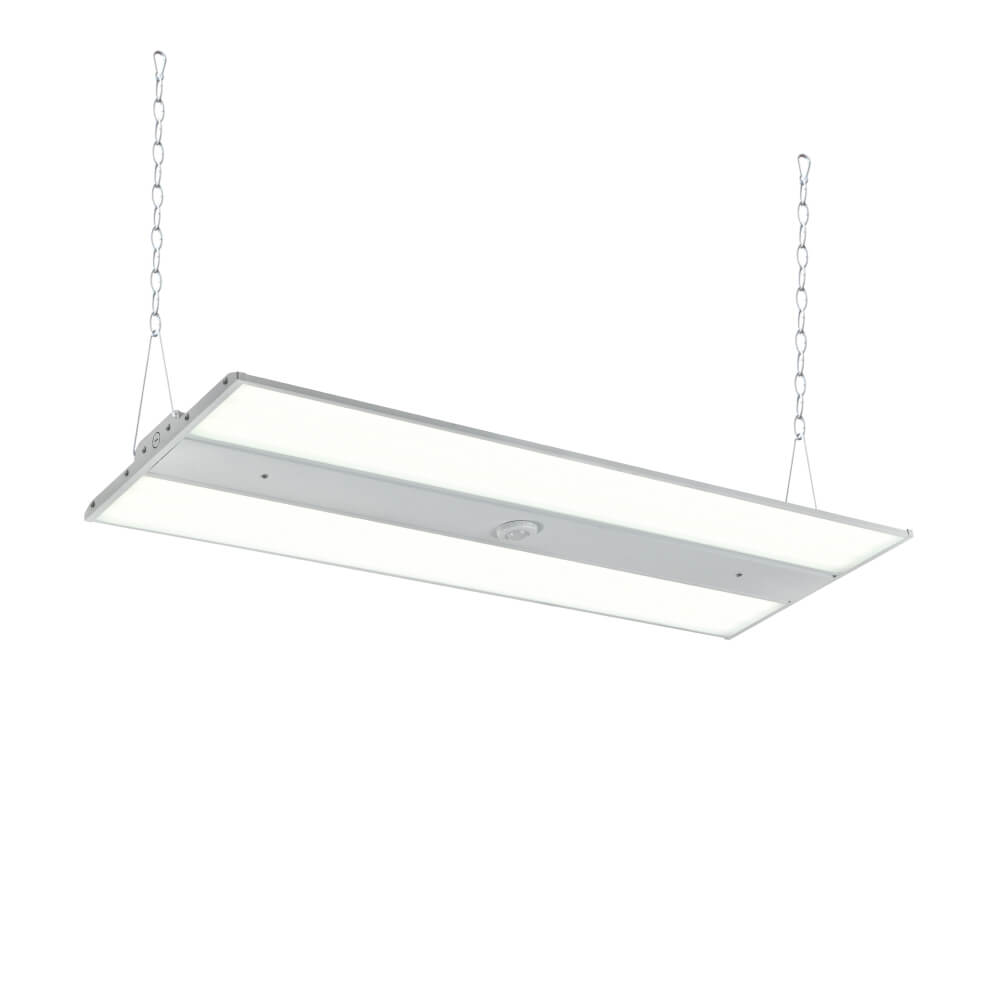

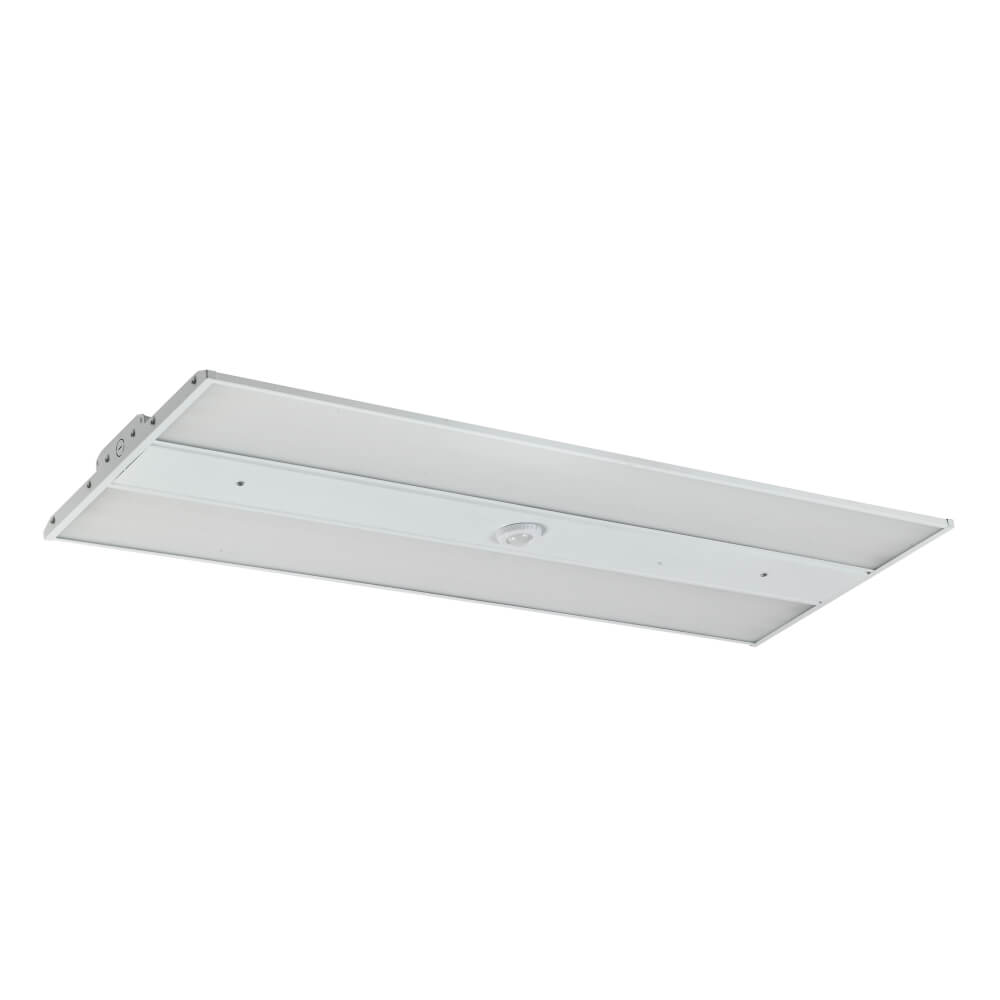

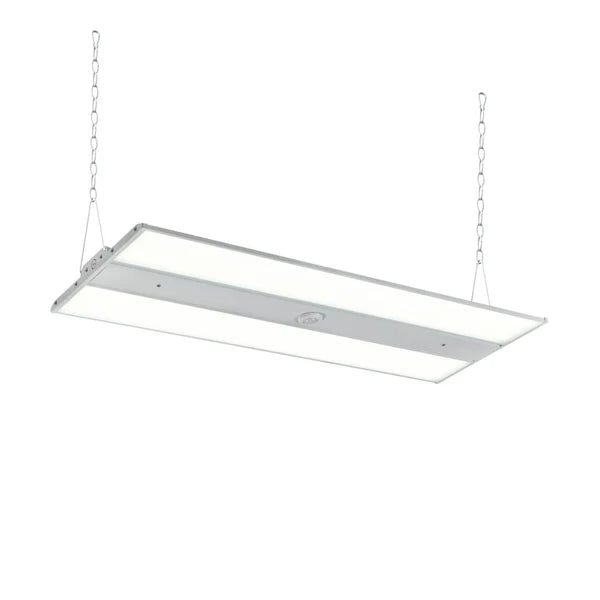

Halcon new slim High bay Linear can be customized with CCT selectable & wattage selectable, used for high ceiling applications such as warehouses, distribution centers, manufacturing facilities and big box retailers. This high bay can be installed with Bluetooth sensor and emergency, it is DLC NLC qualified, making it attractive for large utility rebates.

l  80W-325W various wattage selectable,
l  135 LPW, comes in two lengths 2ft, 4ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l
Garage, workshop, warehouse, factory using




Watts(W): 80W
Size: 2ft
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

2ft, 4ft

Watts(W)

80W, 100W, 140W, 165W, 225W, 325W

Lumen(lm)

10400 lm-42250 lm

Heading

Value

CCT(K)

3000K / 3500K / 4000K / 5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

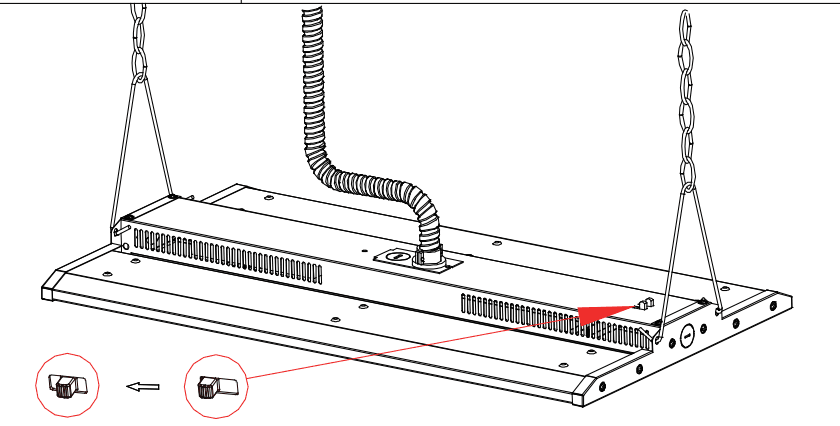

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

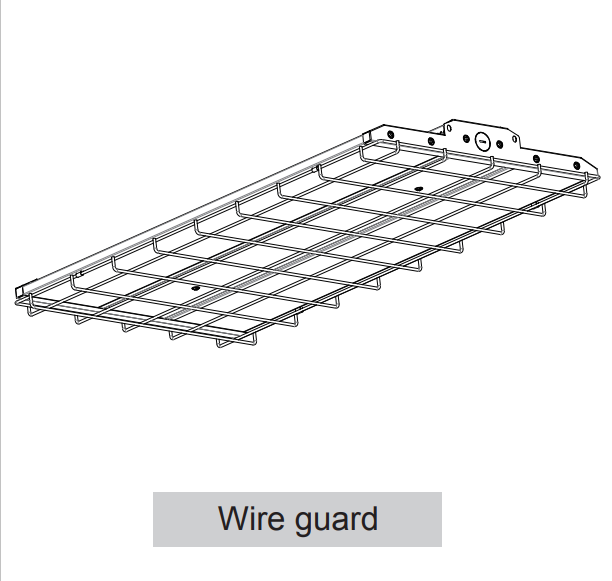

Accessories

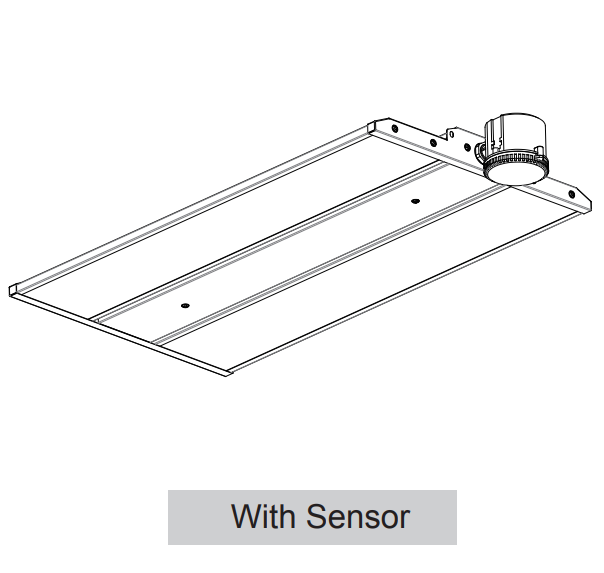

SENSOR control, Emergency kits, suspension kits.

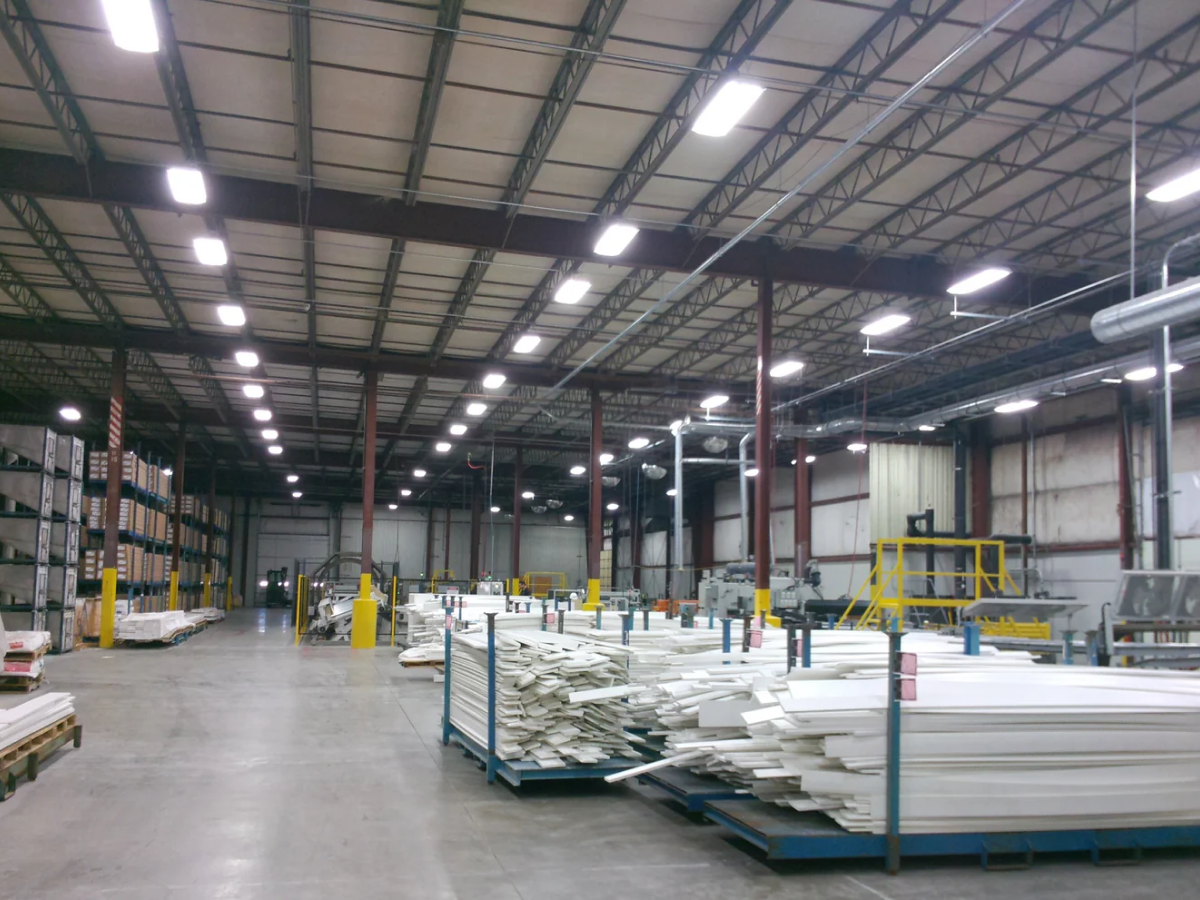

Use Cases

Organize content into multiple columns to share useful information to your customers about your products, values...

factory

factory

factory

factory

Specification Comparison

HG-L225C-80W/2ft
HG-L225C-100W/2ft
HG-L225C-140W/2ft
HG-L225C-165W/2ft
HG-L225C-220W/2ft
HG-L225C-165W/4ft
HG-L225C-225W/4ft
HG-L325W/4ft
Size 630x320x52.5mm 606x320x52.5mm 606x320x52.5mm 604x440x52.5mm 606x440x52.5mm 1165x320x52.5mm 1165x320x52.5mm 1165x440x52.5mm
Nominal Wattage 80W 100W 140W 165W 220W 165W 225W 325W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 10400 lm 13000 lm 18200 lm 21450 lm 28600 lm 29250 lm 42250 lm 42250 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
