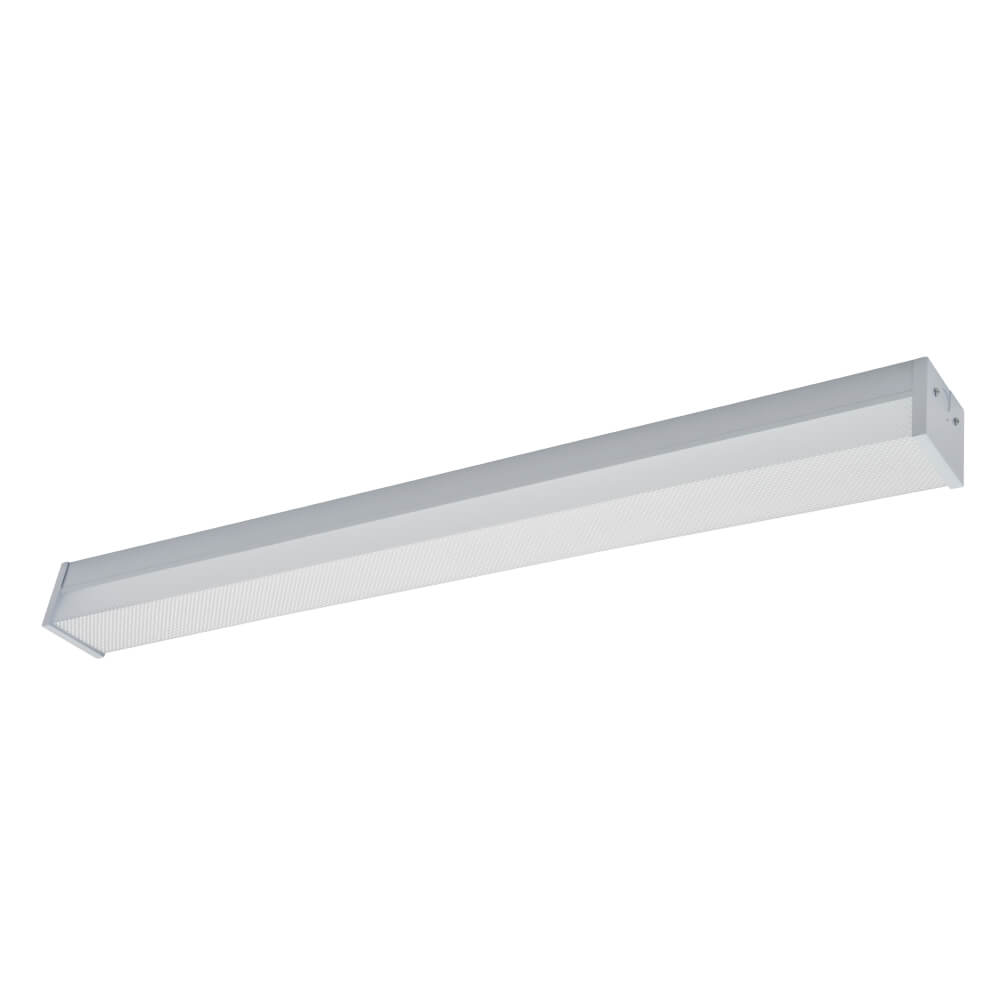

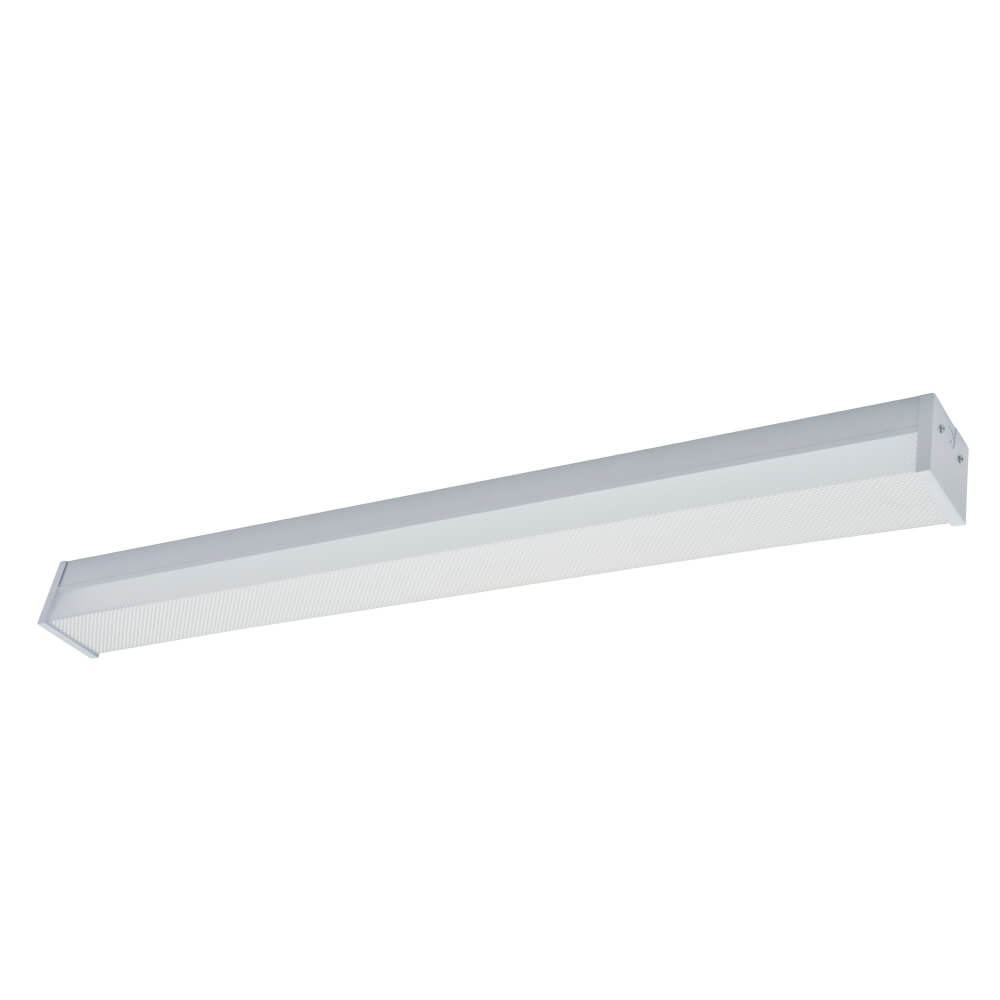

LED Wrap Light prismatic 2ft 4ft 8ft Wattage selectable CCT selectable 120-277V 0-10V dimming ETL and DLC listed emergency back up and sensor control ready
A cost-effective utility wrap by Halcon lighting with tremendous flexibility, both wattage and CCT selectable, controls ready, and provides an emergency battery backup option. This durable linear fixture delivers long lasting illumination and critical energy savings in locations where lights are on 24/7, such as stairwells, parking garages and utility areas.
l 20W-70W various wattage selectable,
l 125 LPW, comes in 2'x2', 2'x4', 1'x4'
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l Office, education, health care, hospitality and retail interiors
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2ft, 4ft, 5ft, 6ft, 8ft
20W, 30W, 40W, 60W, 80W
2500 lm-10000 lm
Value
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Specification Comparison
 HG-L239-20W/2ft
|
HG-L239-30W/4ft
|
HG-L239-40W/5ft
|
HG-L239-60W/5ft
|
HG-L239-80W/6ft
|
HG-L239-100W/8ft
|
HG-L239-100W/8ft
|
|
| Size | 602x105x96mm | 1175x105x96mm | 1175x105x96mm | 1475x105x96mm | 14875x105x96mm | 1775x105x96mm | 2475x105x96mm |
| Nominal Wattage | 20W | 30W | 40W | 40W | 60W | 80W | 100W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 2400 lm | 3600 lm | 4800 lm | 4800 lm | 7200 lm | 9600 lm | 12000 lm |
| Nominal Efficacy | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
