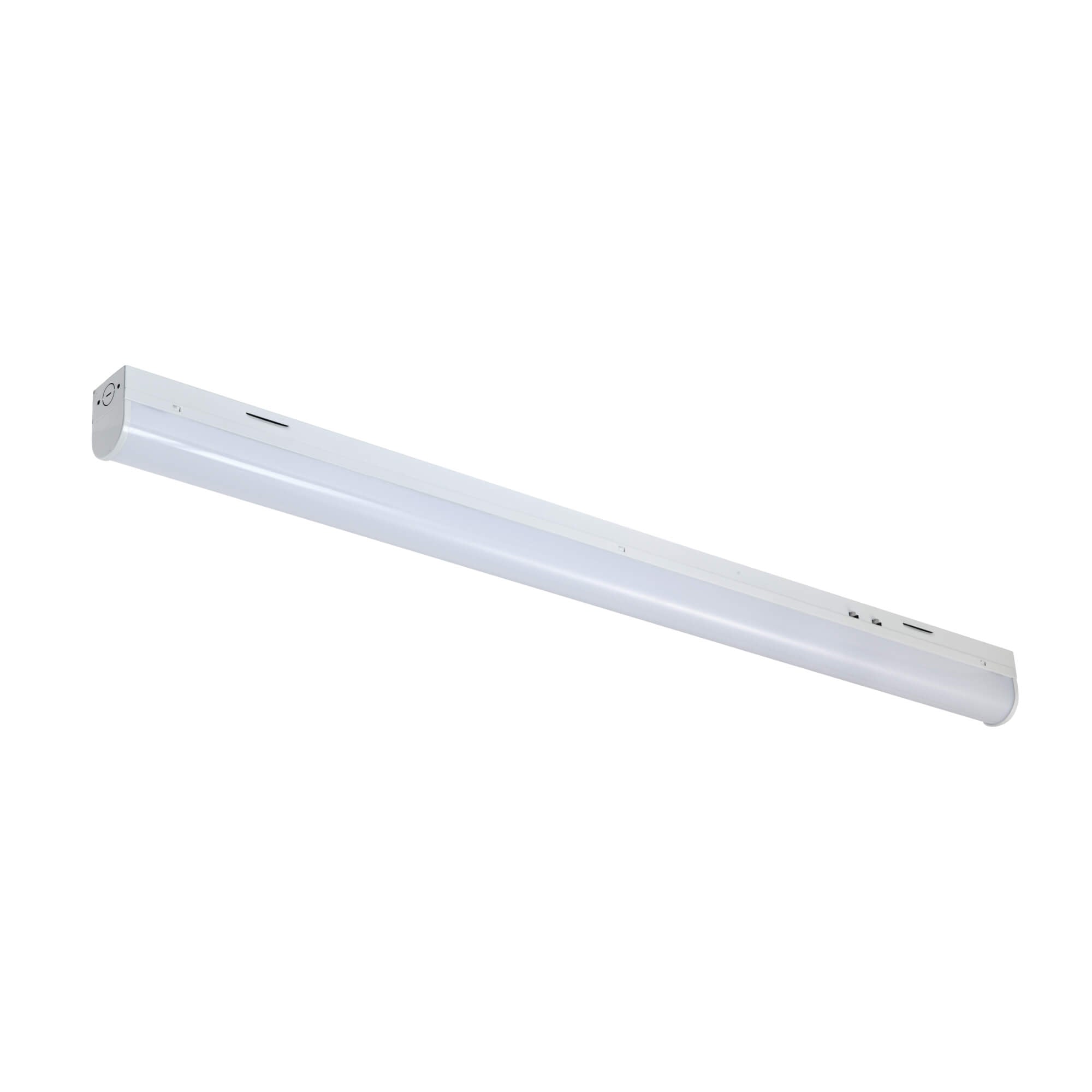

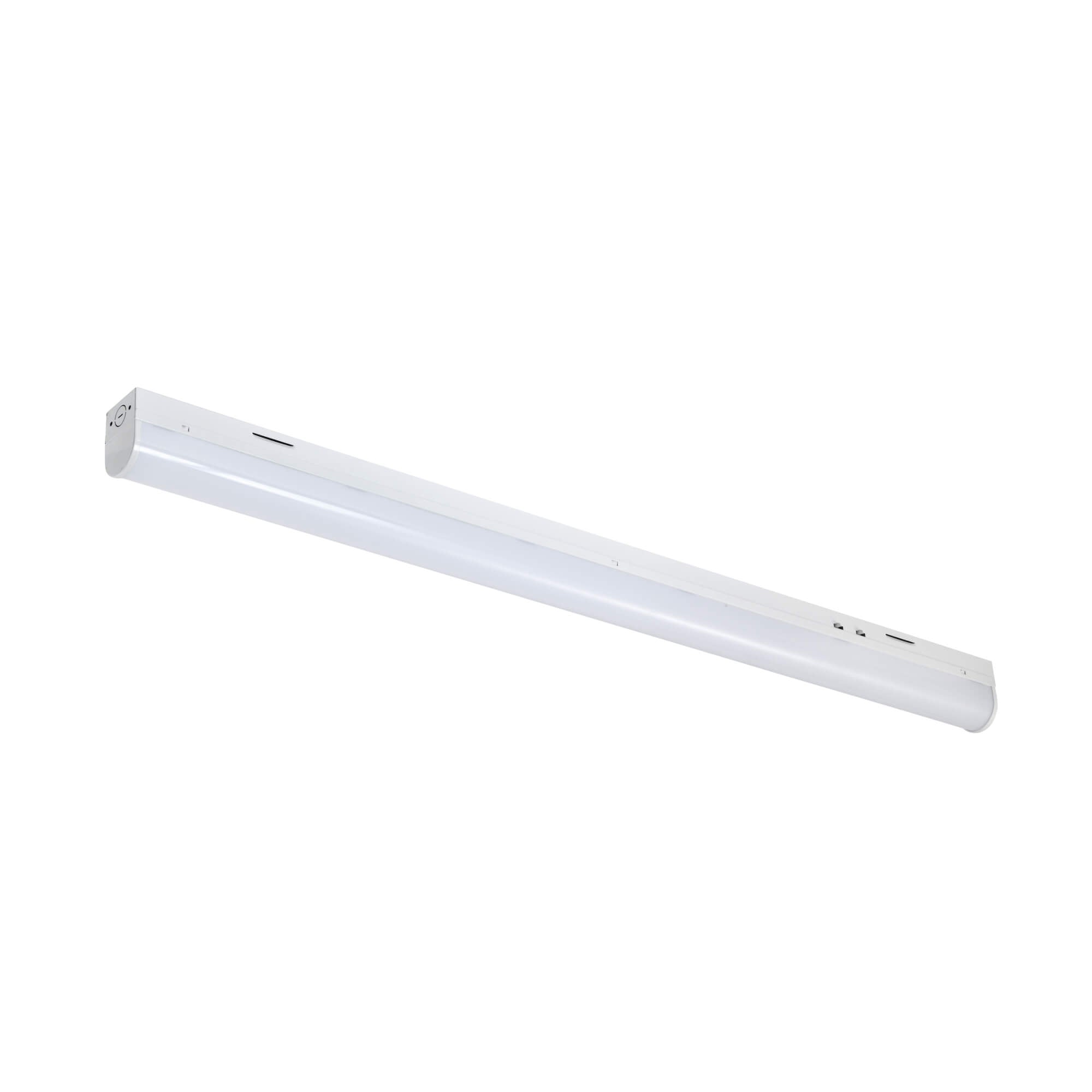

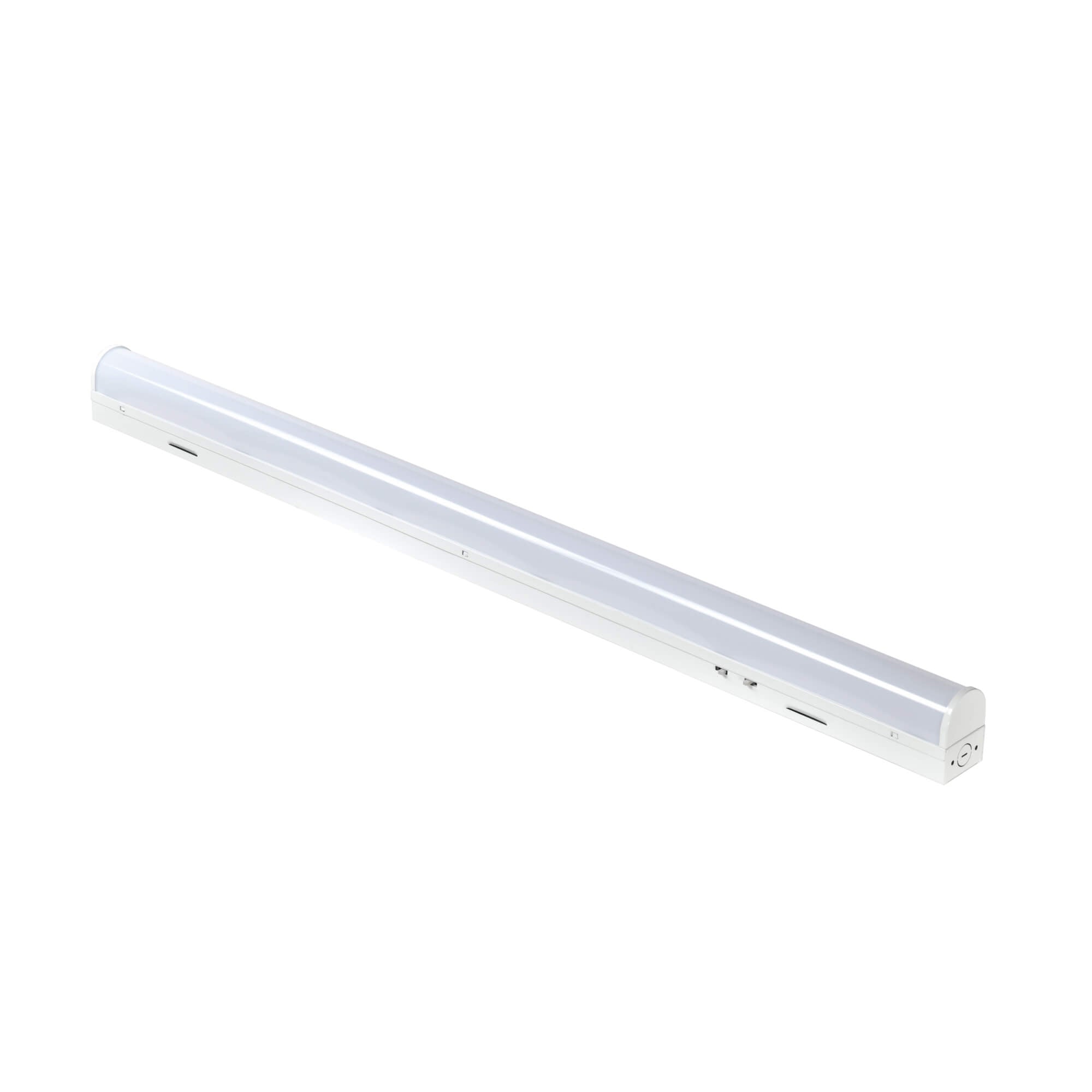

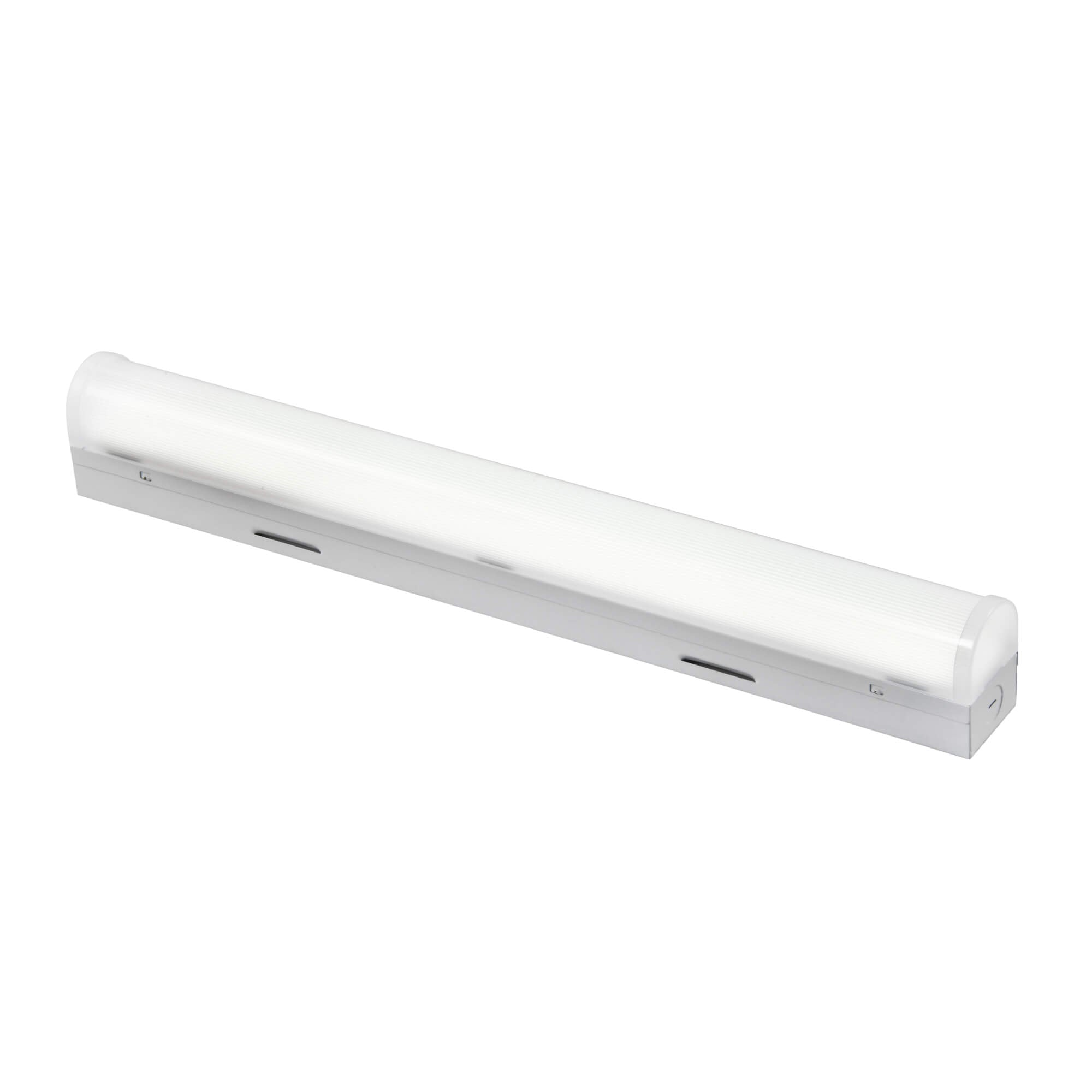

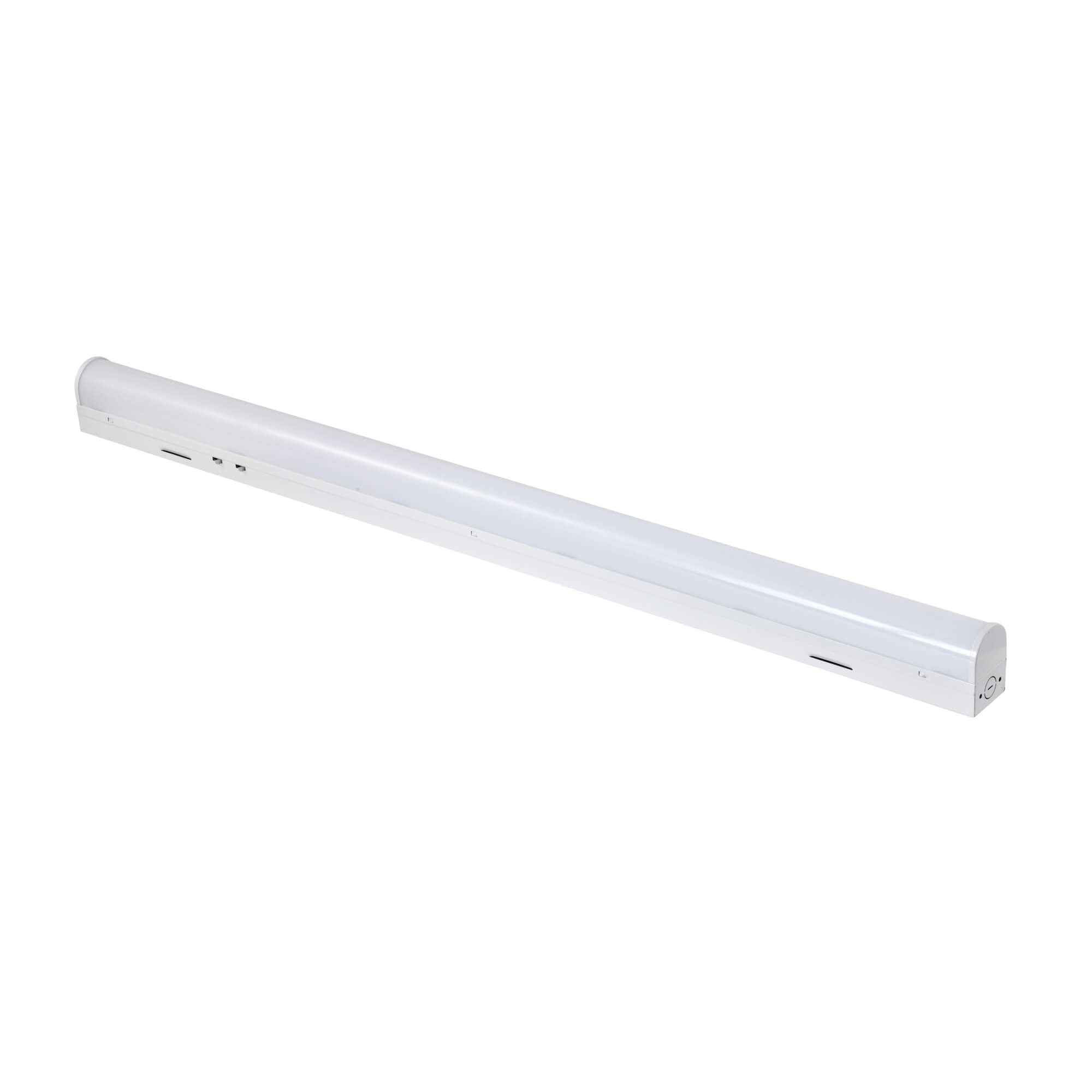

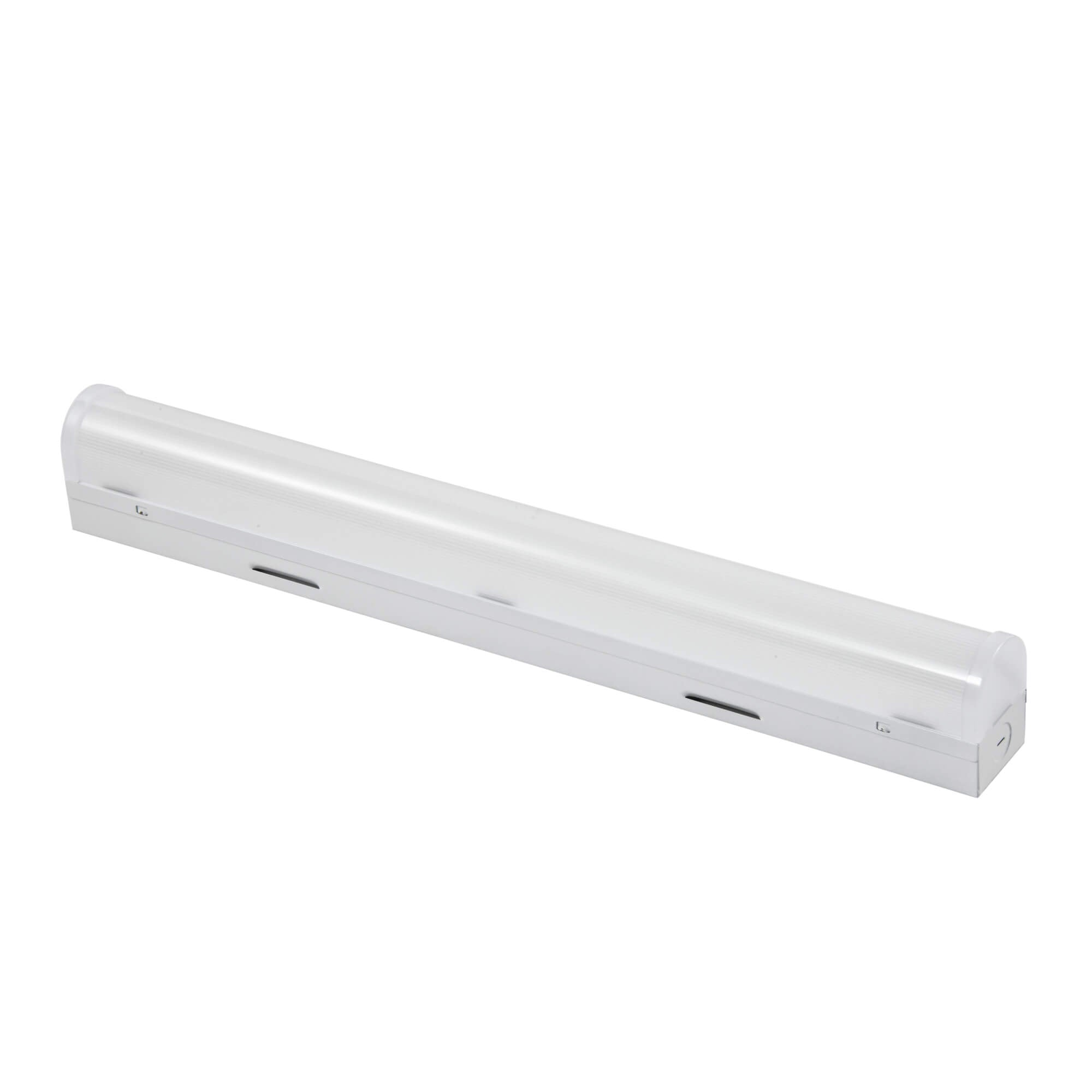

LED Linear Strip Lights 2FT 4FT 8FT Surface Mount and Hanging Ceiling Lighting Fixture Fluorescent Tube Replacement Wattage selectable 20W/30W/40W CCT selectable 3000K to 5000K ETL and DLC listed


The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.


Watts(W): 15/20/25W
Size: 2ft
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

2ft, 4ft, 8ft

Watts(W)

15/20/25W, 20/25/40W, 55/60/65W, 50/65/80W

Lumen(lm)

3250 lm-8450 lm

Heading

Value

CCT(K)

3000K / 3500K / 4000K / 5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification Comparison

Halcon LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial lighting
HG-L205B-252F
Halcon LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial lighting
HG-L205B-404F
Halcon LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial lighting
HG-L205B-658F
Halcon LED Strip Light HG-L205B with selectable color temperatures and wattages for commercial lighting
HG-L205B-858F
Size 605x60x82mm 1175x60x82mm 2327x60x82mm 2327x60x82mm
Nominal Wattage 15/20/25W 20/25/40W 55/60/65W 50/65/80W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3250 lm 5200 lm 8450 lm 8450 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
