LED linear light strip diffuser CCT and watt selectable 3000K-5000K (5400 lumen-11475 lumen), 120-277V 0-10V Dimmable ETL DLC listed emergency back and bluetooth sensor technology
The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.
l 20W-85W various wattage selectable,
l 135 LPW, comes in 2ft, 4ft, 8ft
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l office, education, health care, hospitality and retail interiors

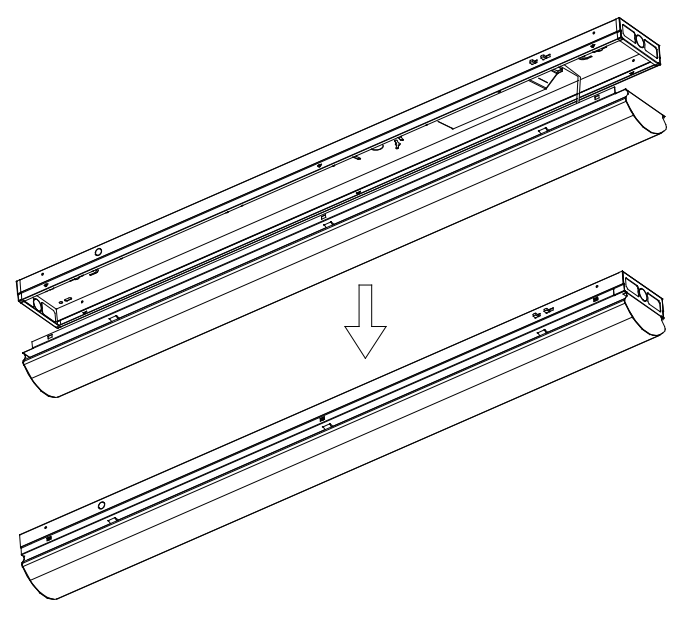

Design and Installation
Organize content into multiple columns to share useful information to your customers about your products, values...
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

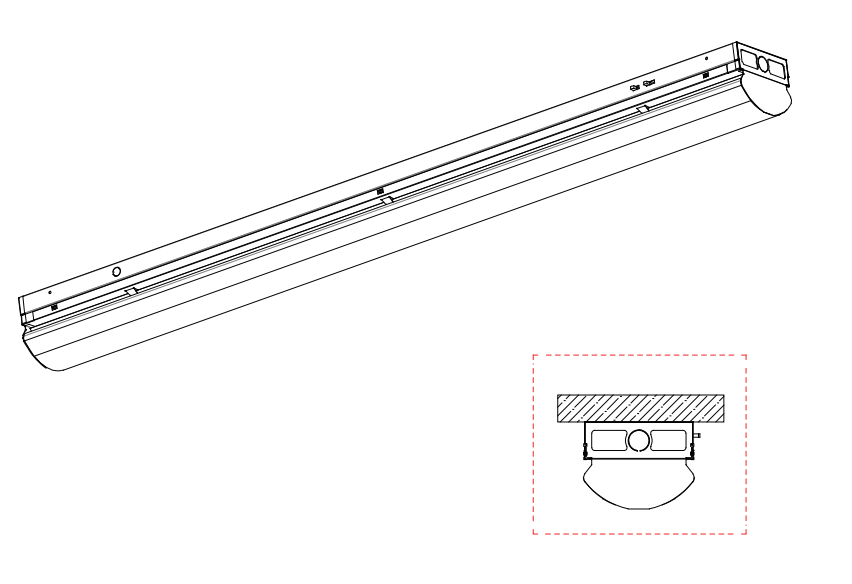

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Specification
603x603x55mm
1213x303x55mm
1213x603x55mm
20/30/35W
30/40/50W
30/40/50W
AC 120-277V, 120-347V
AC 120-277V, 120-347V
AC 120-277V, 120-347V
4375 lm
6250 lm
6250 lm
125 lm/w
125 lm/w
125 lm/w
3000K/3500K/4000K/5000K
3000K/3500K/4000K/5000K
3000K/3500K/4000K/5000K
>80
>80
>80
>0.9
>0.9
>0.9
0-10V
0-10V
0-10V
-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
5 Years
5 Years
5 Years
