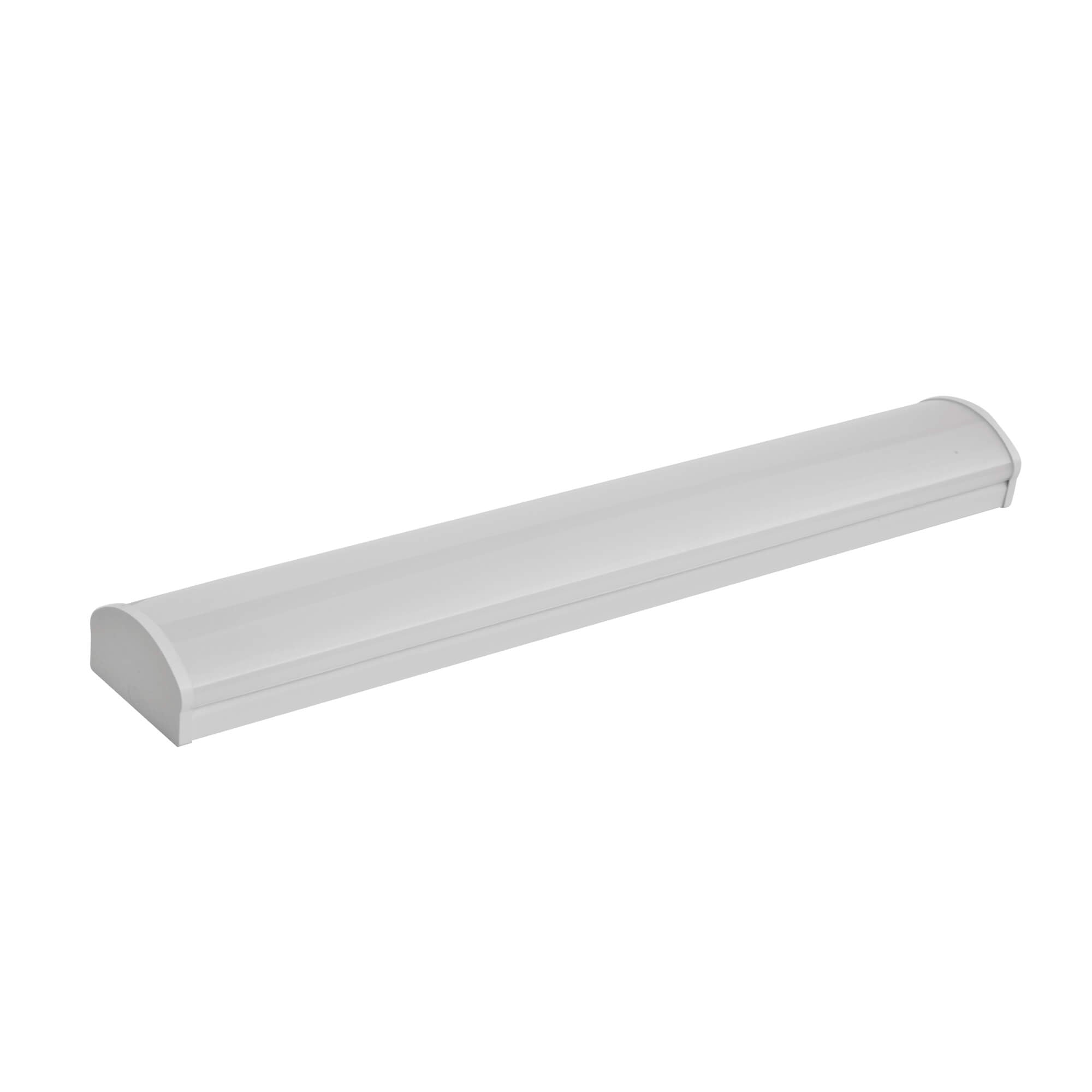

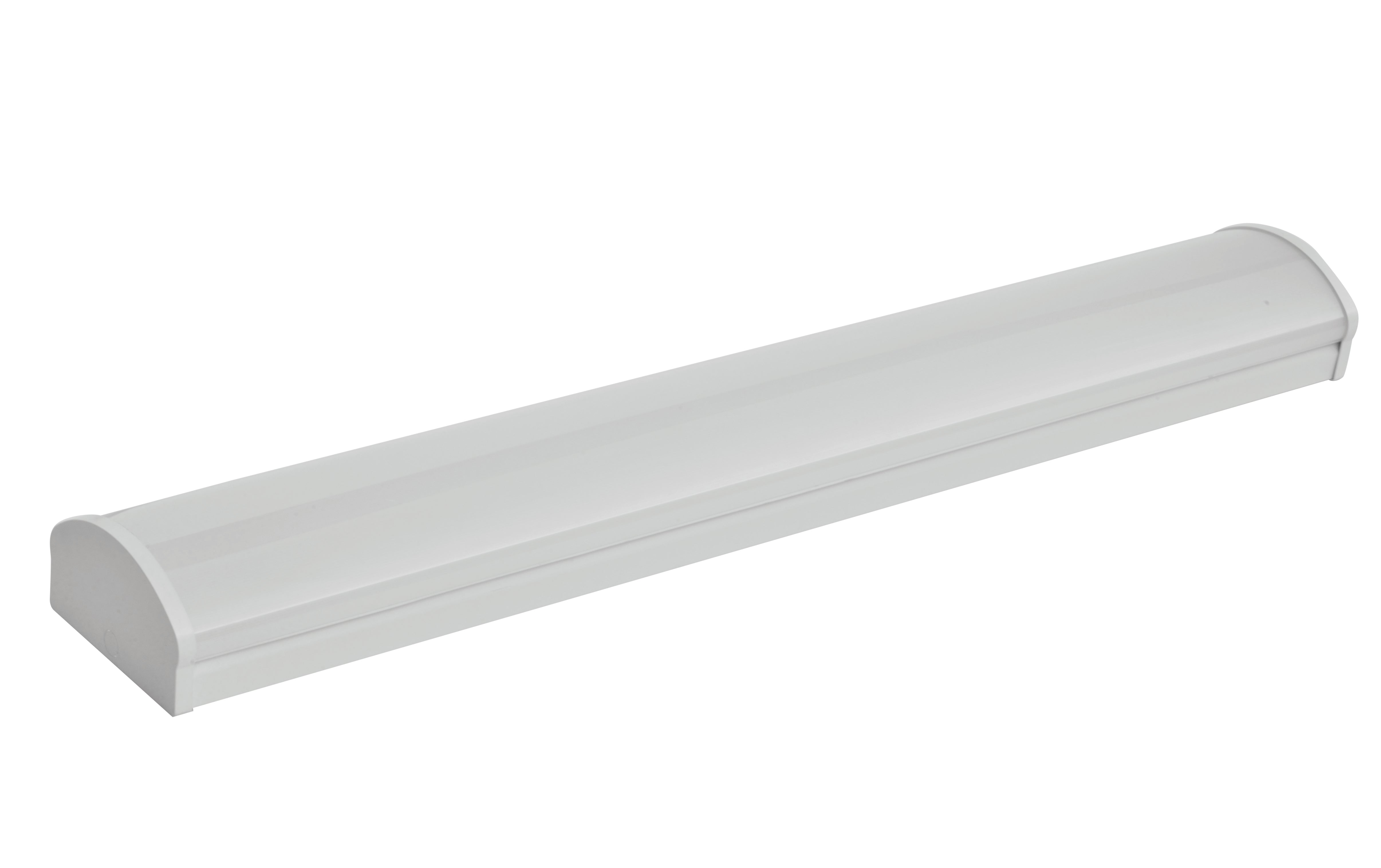

LED wraparound light 2ft 4ft 8ft 2860 to 10400 lumen CCT and watt selectable 120-277V 0-10V dimming ETL DLC listed
Halcon high quality LED Utility Wraps Series is a cost-effective, energy-efficient lighting solution that meets building and safety codes for high-occupancy dwellings, parking garages, stairwells and other commercial utility applications. feature field-Wattage and CCT selectable, and provides an emergency battery back up option. LED Utility Wraps consume less power than fluorescent wrap-around fixtures while delivering high efficacy.
l 20W-80W various wattage selectable,
l 130 LPW, comes in 2ft, 4ft, 8ft
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l corridors, kitchens, breakrooms, utility work areas and stairways
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2ft, 4ft, 5ft, 6ft, 8ft
20W, 30W, 40W, 60W, 80W, 100W
2500 lm-10000 lm
Value
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

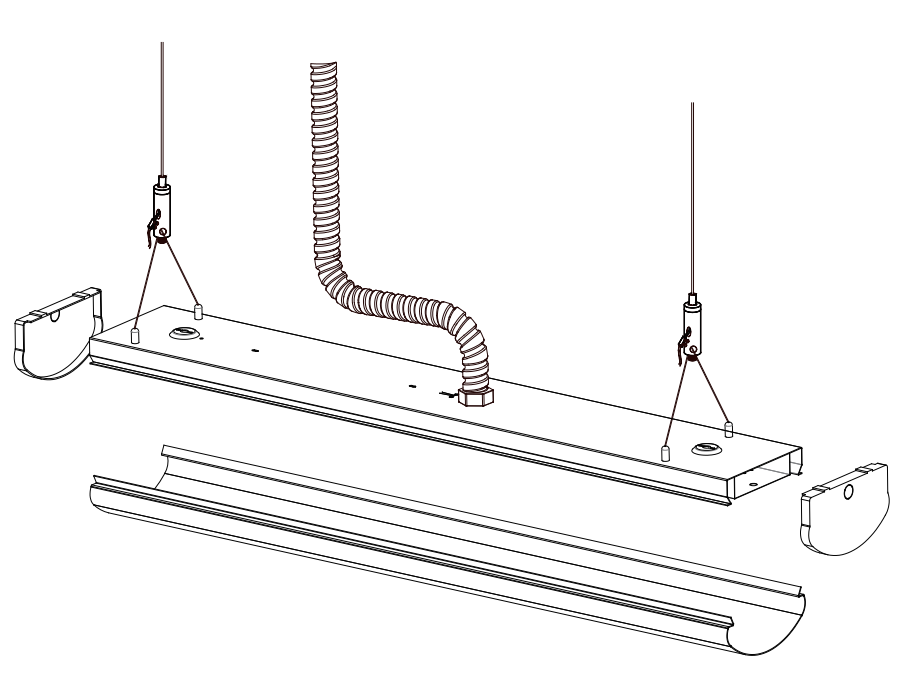

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...

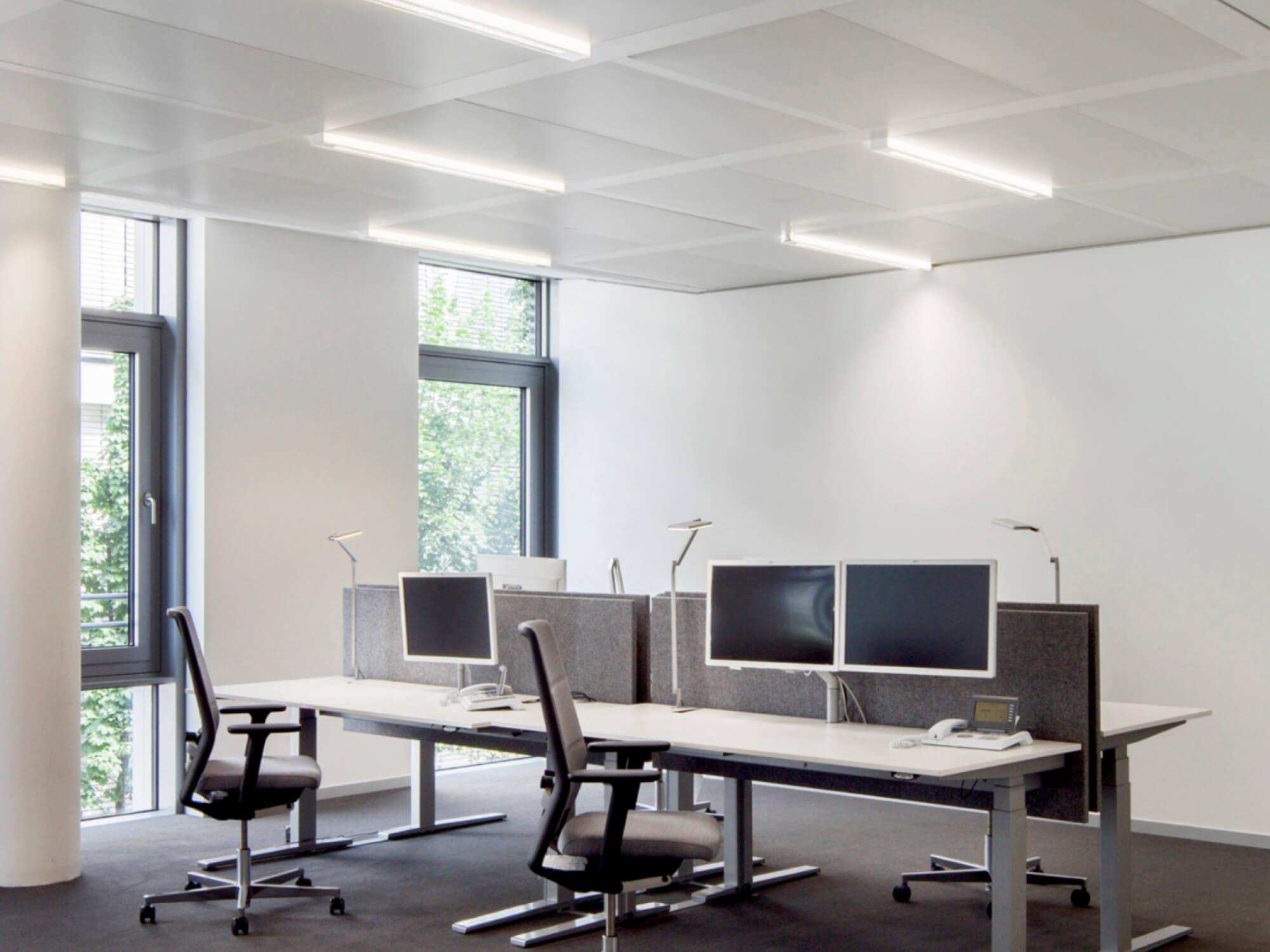

Office Unit

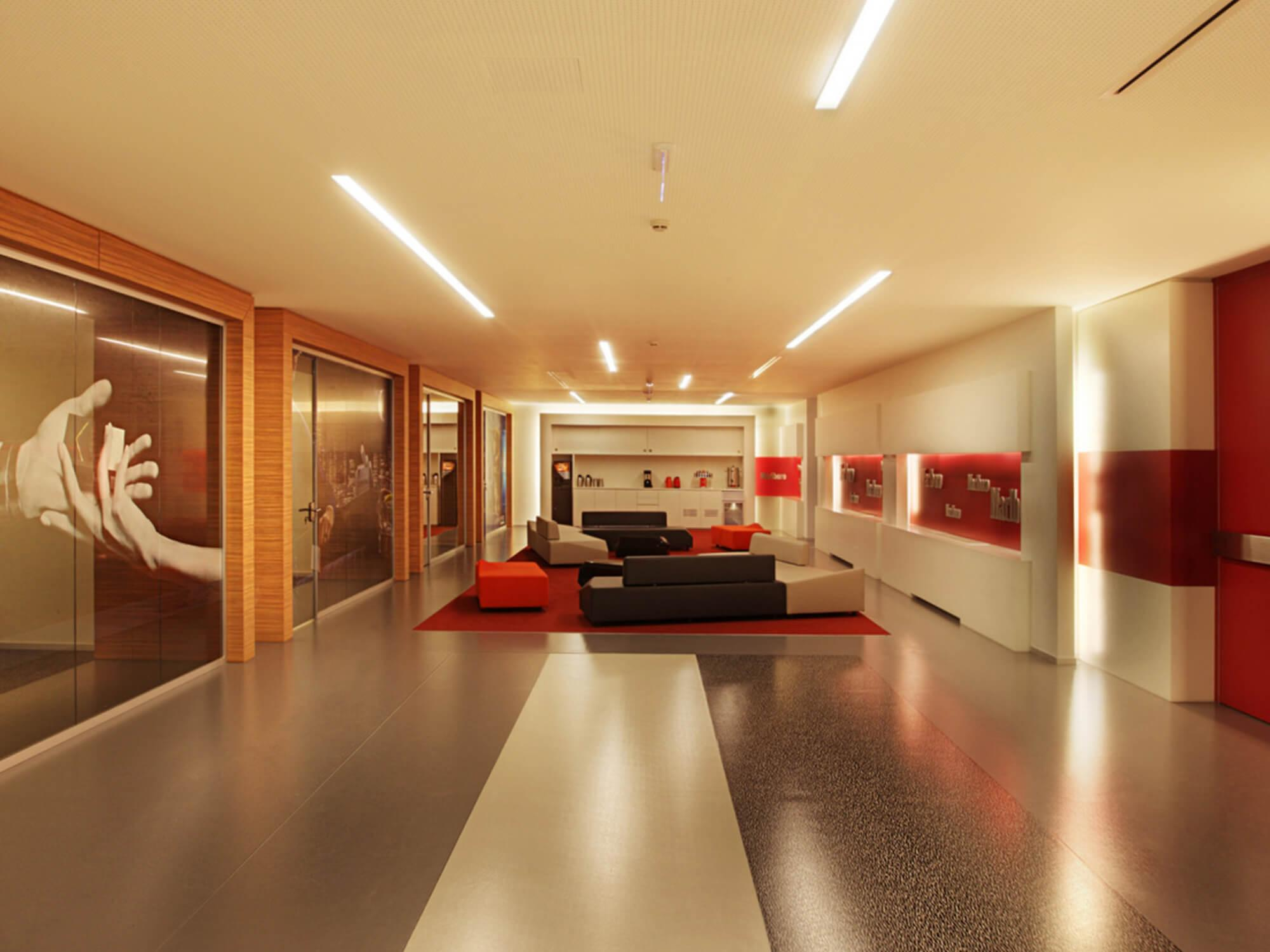

Commercial Store

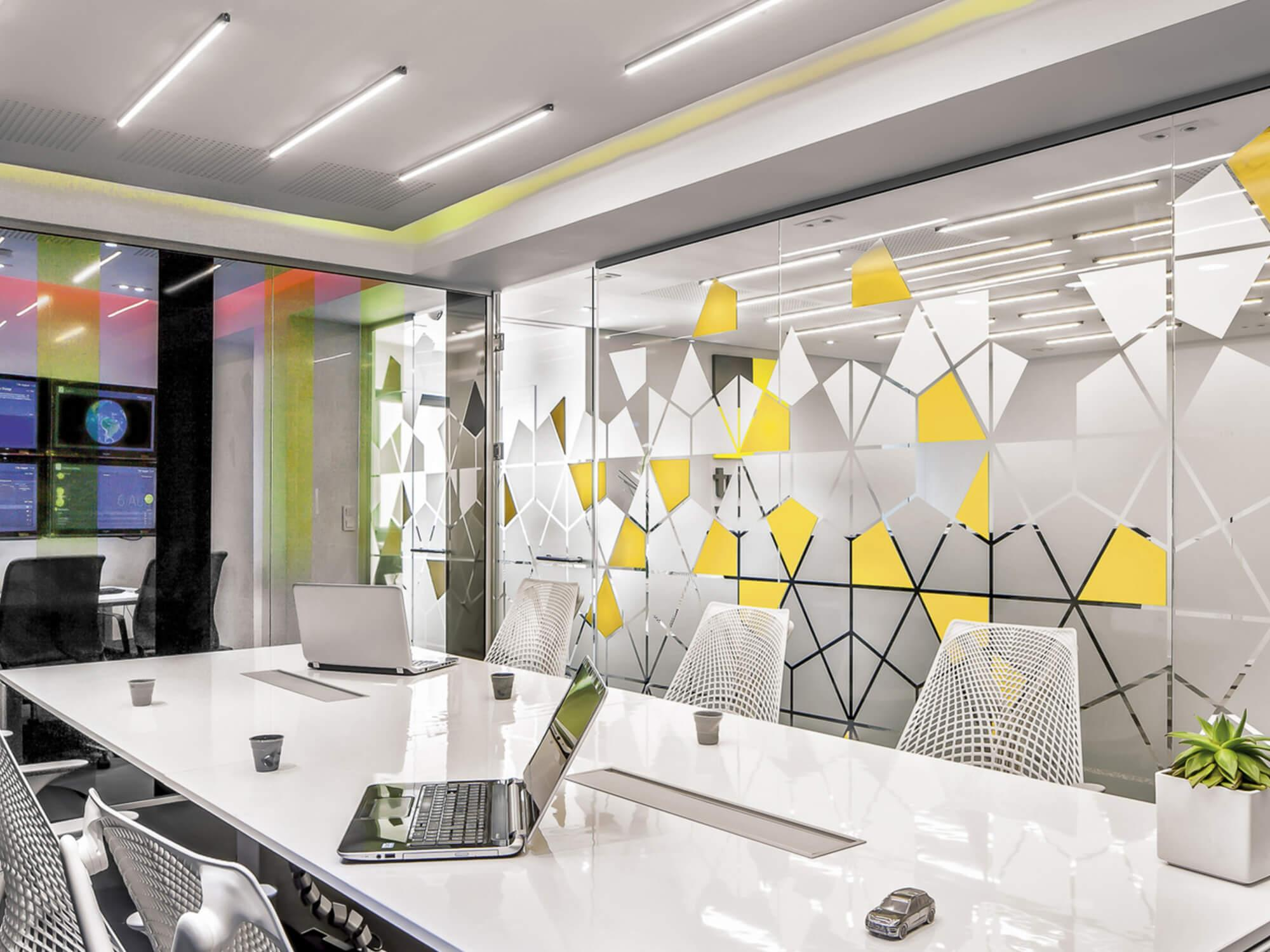

Conference Room
Specification Comparison
 HG-L203-20W/2ft
|
HG-L203-30W/4ft
|
HG-L203-40W/5ft
|
HG-L203-60W/5ft
|
HG-L203-80W/6ft
|
HG-L203-100W/8ft
|
|
| Size | 588x182x102mm | 1188x182x102mm | 1188x182x102mm | 1488x182x102mm | 1488x182x102mm | 1788x182x102mm |
| Nominal Wattage | 20W | 30W | 40W | 60W | 80W | 100W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 2400 lm | 3600 lm | 4800 lm | 4800 lm | 7200 lm | 9600 lm |
| Nominal Efficacy | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
