LED wraparound light 2ft 4ft 8ft 2860 to 10400 lumen CCT and watt selectable 120-277V 0-10V dimming Emergency back and sensor control ready
Upgrade to Halcon's Linear LED Wrap Lights for Maximum Efficiency

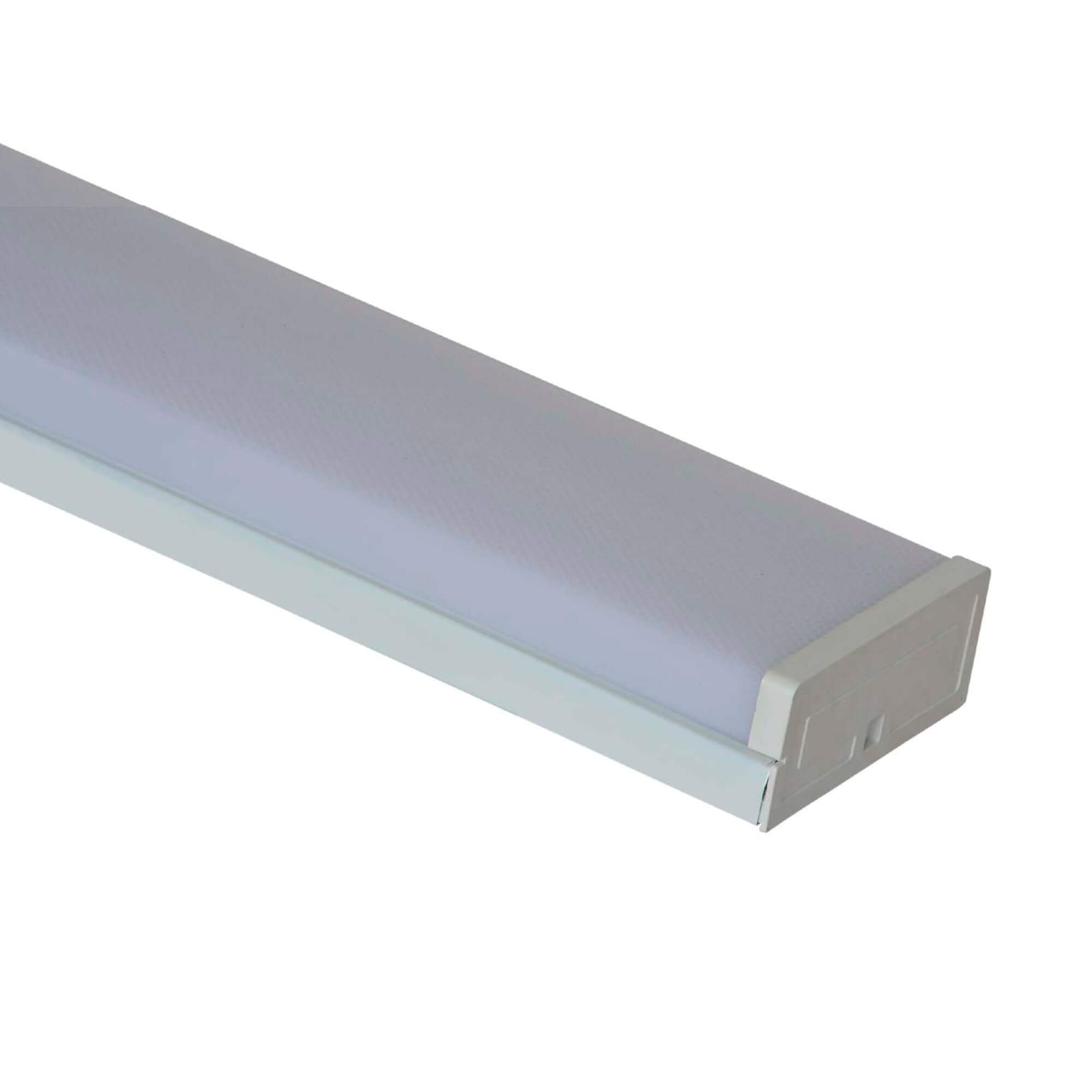

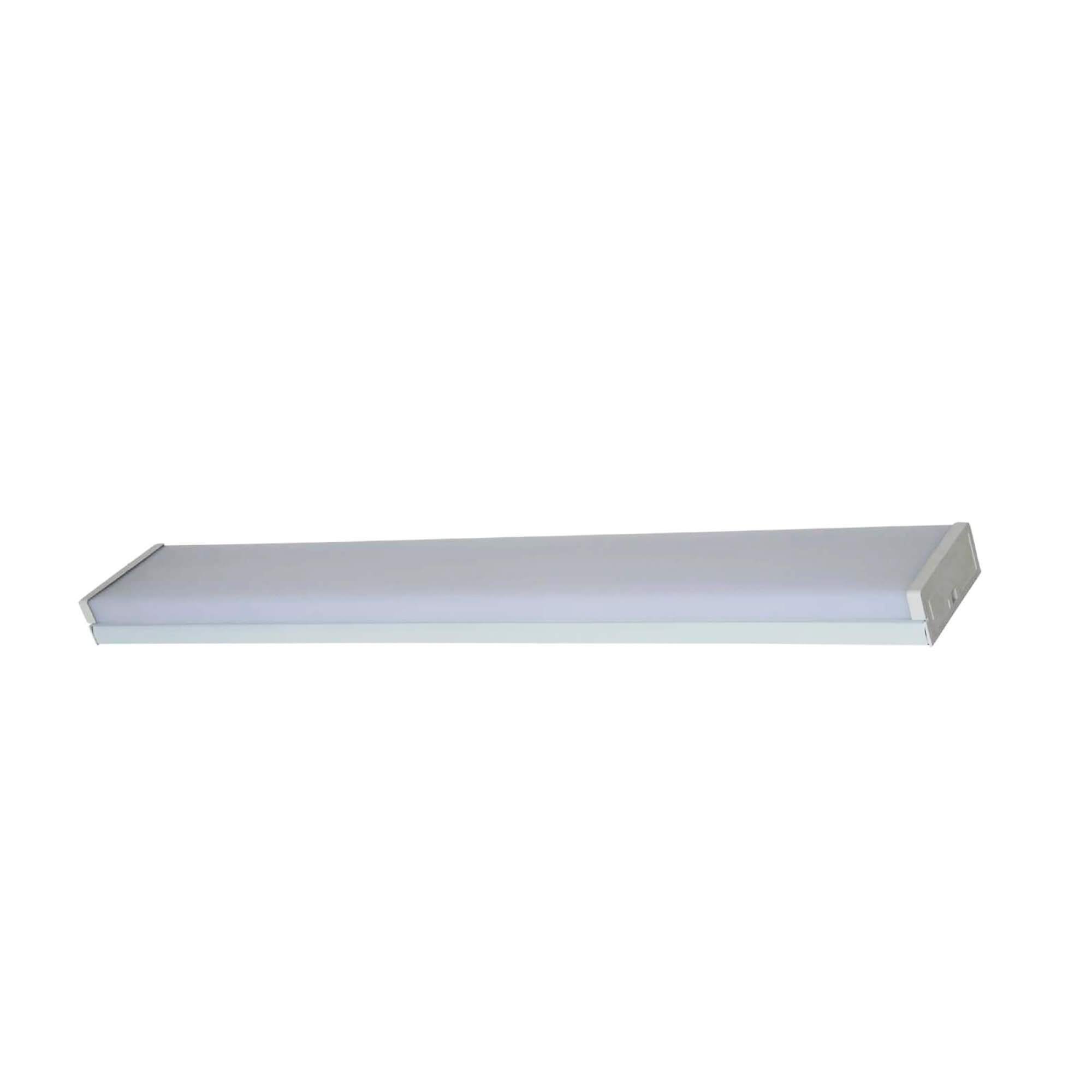

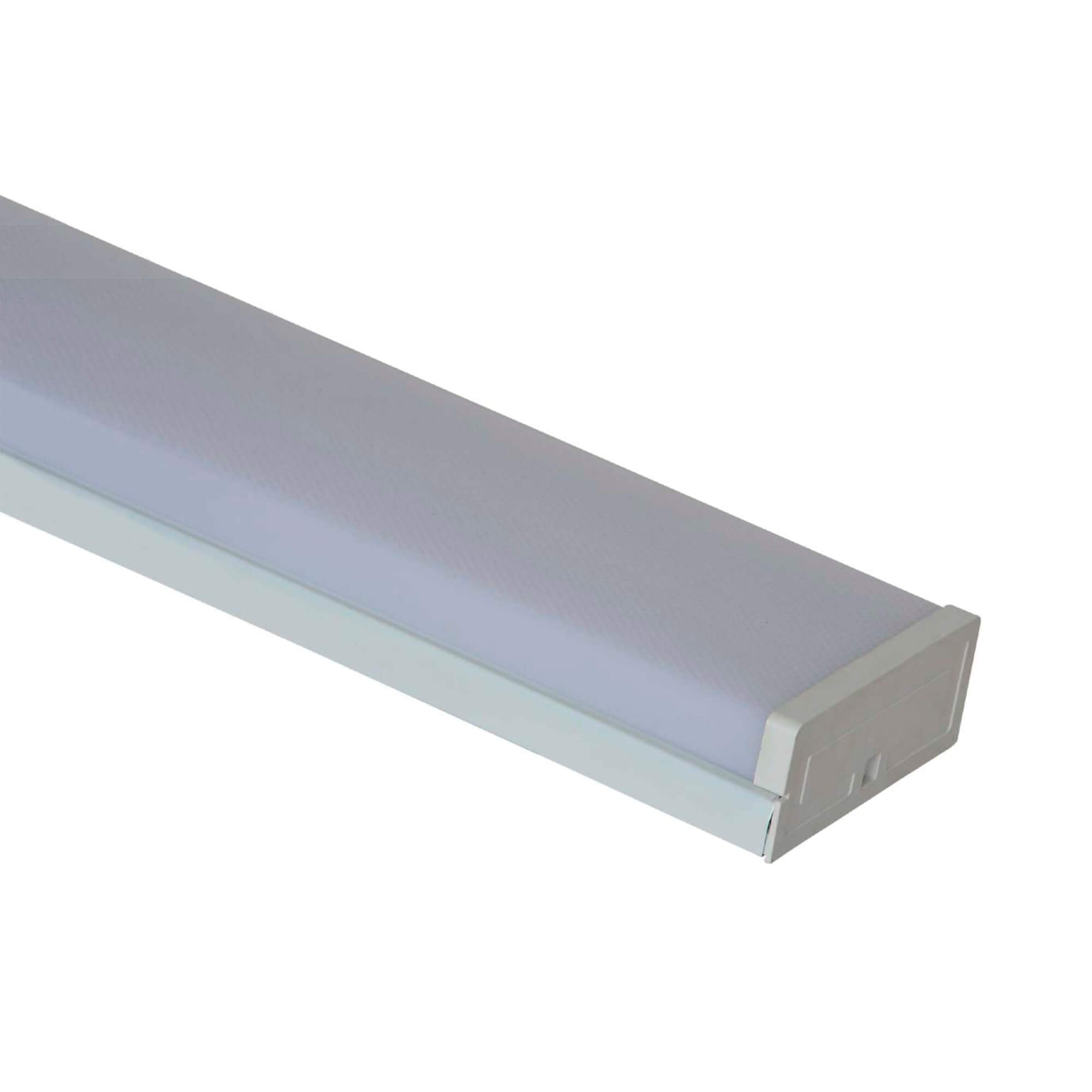

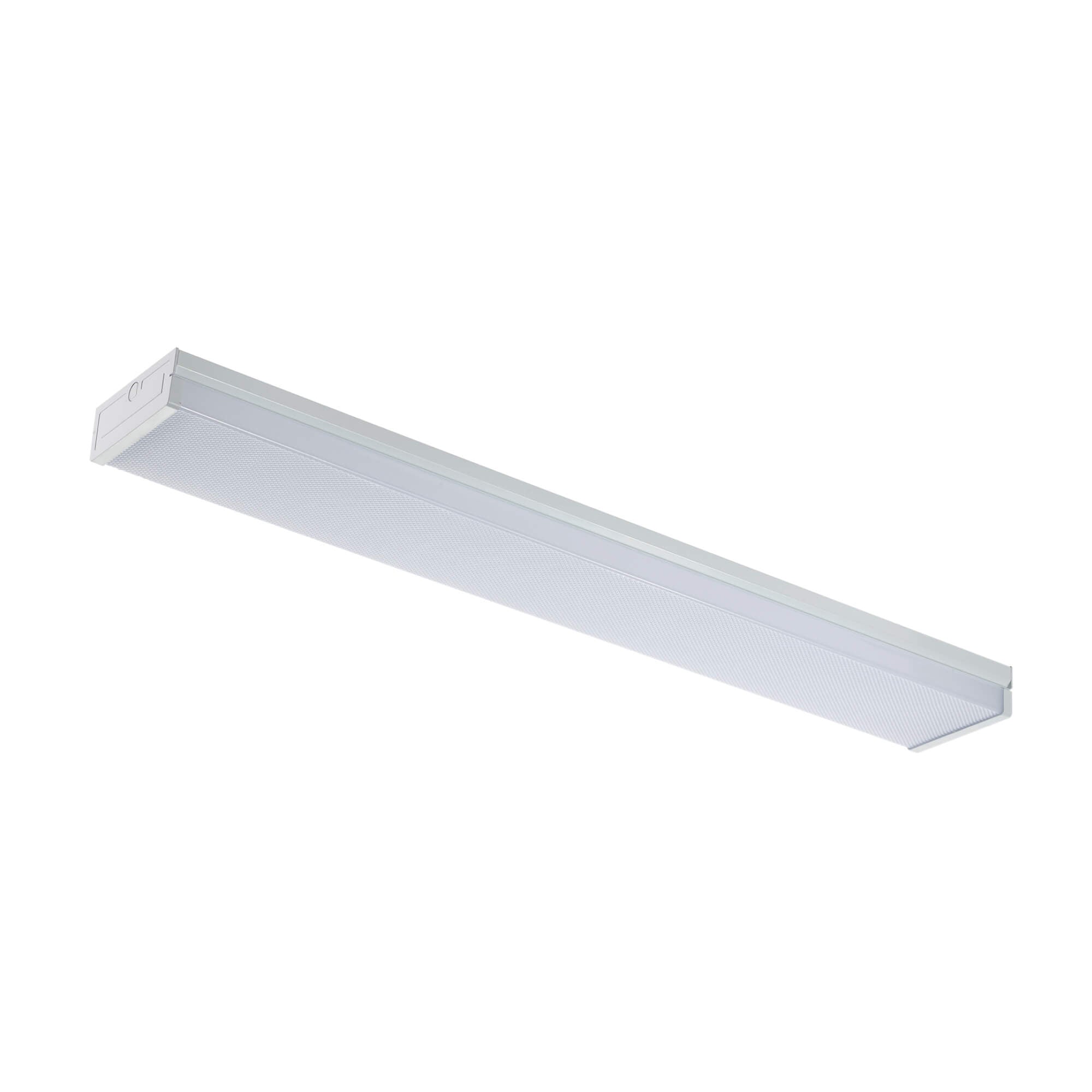

Transform any commercial space with the versatile and affordable HG-L201 LED wrap light. Available in 2' to 8' sizes, this sleek linear fixture brings powerful illumination to utility areas and beyond.
Our LED wraps combine high 120 lumens per watt efficiency, 50,000 hour lifetime and field-customizable CCTs (3000K-5000K). Easily select the perfect crisp white light temperature for your environment.
Low Profile Design, Easy Installation
The compact housing mounts flush against walls, ceilings and stairwells. Integrated side clips and end caps create seamless connections for continuous run installations.
Simplify maintenance with plug-and-play LED boards that are easily accessible. Built-in 0-10V dimming enables further energy savings.
Superior Light Quality for High Traffic Areas
Replace fluorescent wraps with long-lasting, flicker-free LEDs. The HG-L201 provides uniform illumination ideal for corridors, parking garages, warehouses and other commercial applications.
Trust Halcon’s wraps to deliver maximum savings, quality, and convenience. Contact us today to upgrade your linear lighting.
l 20W-80W various wattage selectable,
l 130 LPW, comes in 2ft, 4ft, 8ft
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l office, education, health care, hospitality and retail interiors
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2ft, 4ft, 5ft, 6ft, 8ft
20W, 30W, 40W, 60W, 80W
2860 to 10400 lumen
Value
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...
Meeting Room
Specification Comparison
 HG-L201-20W/2ft
|
HG-L201-30W/4ft
|
HG-L201-40W/5ft
|
HG-L201-60W/5ft
|
HG-L201-80W/6ft
|
HG-L201-100W/8ft
|
HG-L201-100W/8ft
|
|
| Size | 588x208x70mm | 1188x208x70mm | 1188x208x70mm | 1488x208x70mm | 1488x208x70mm | 1788x208x70mm | 2488x208x70mm |
| Nominal Wattage | 20W | 30W | 40W | 40W | 60W | 80W | 100W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 2400 lm | 3600 lm | 4800 lm | 4800 lm | 7200 lm | 9600 lm | 12000 lm |
| Nominal Efficacy | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w | 120 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | >0.9 | 0-10V | 0-10V | 0-10V | 0-10V | >0.9 |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
