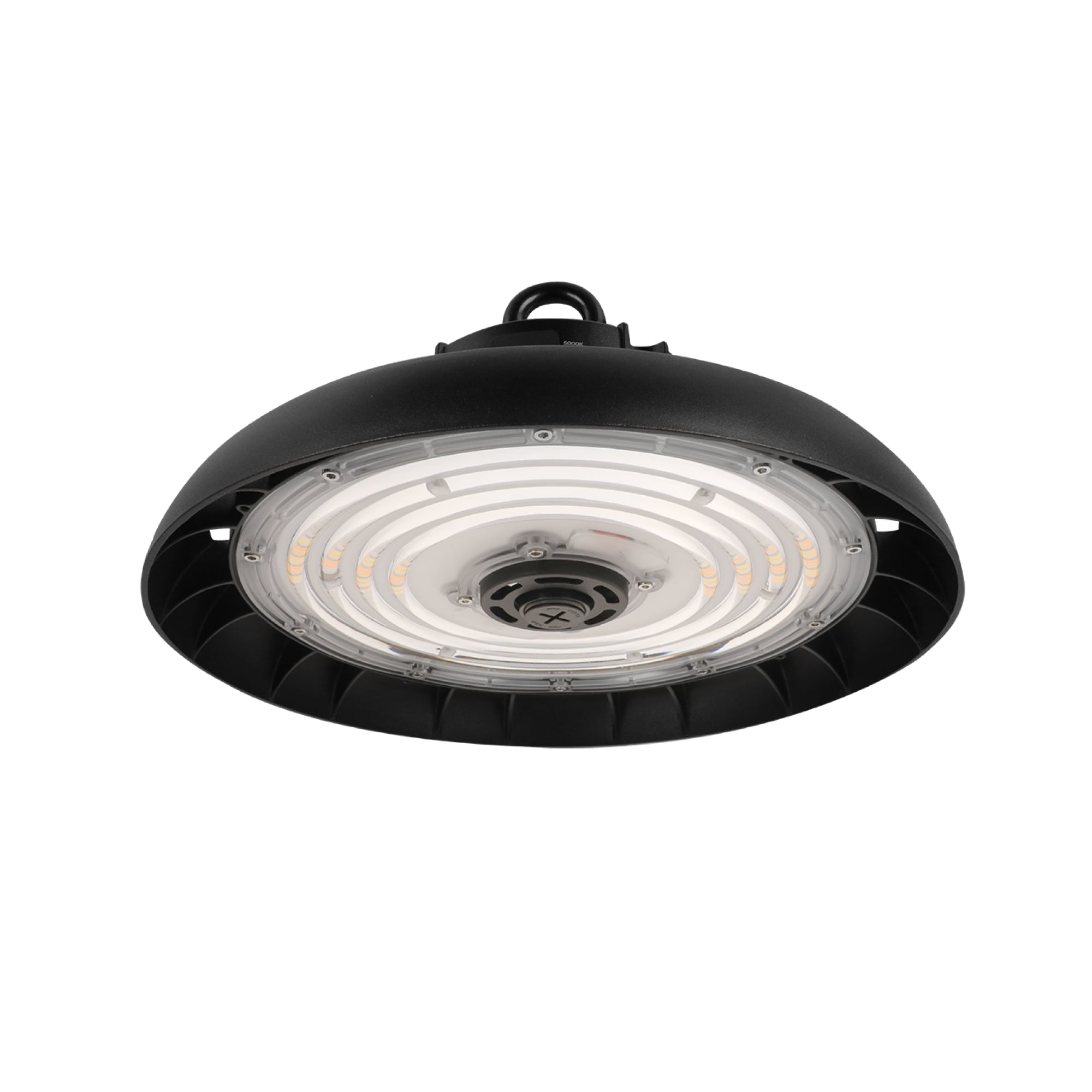

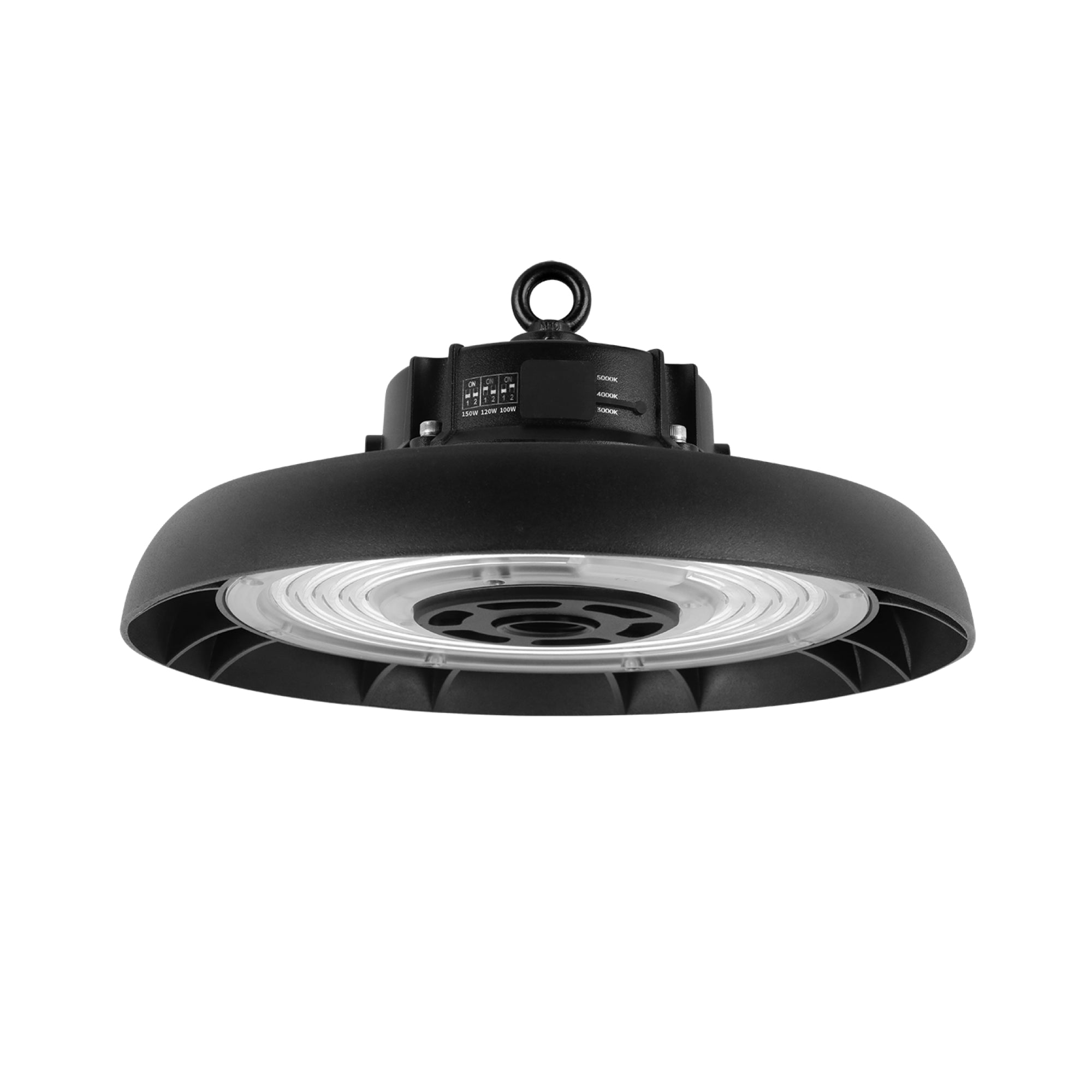

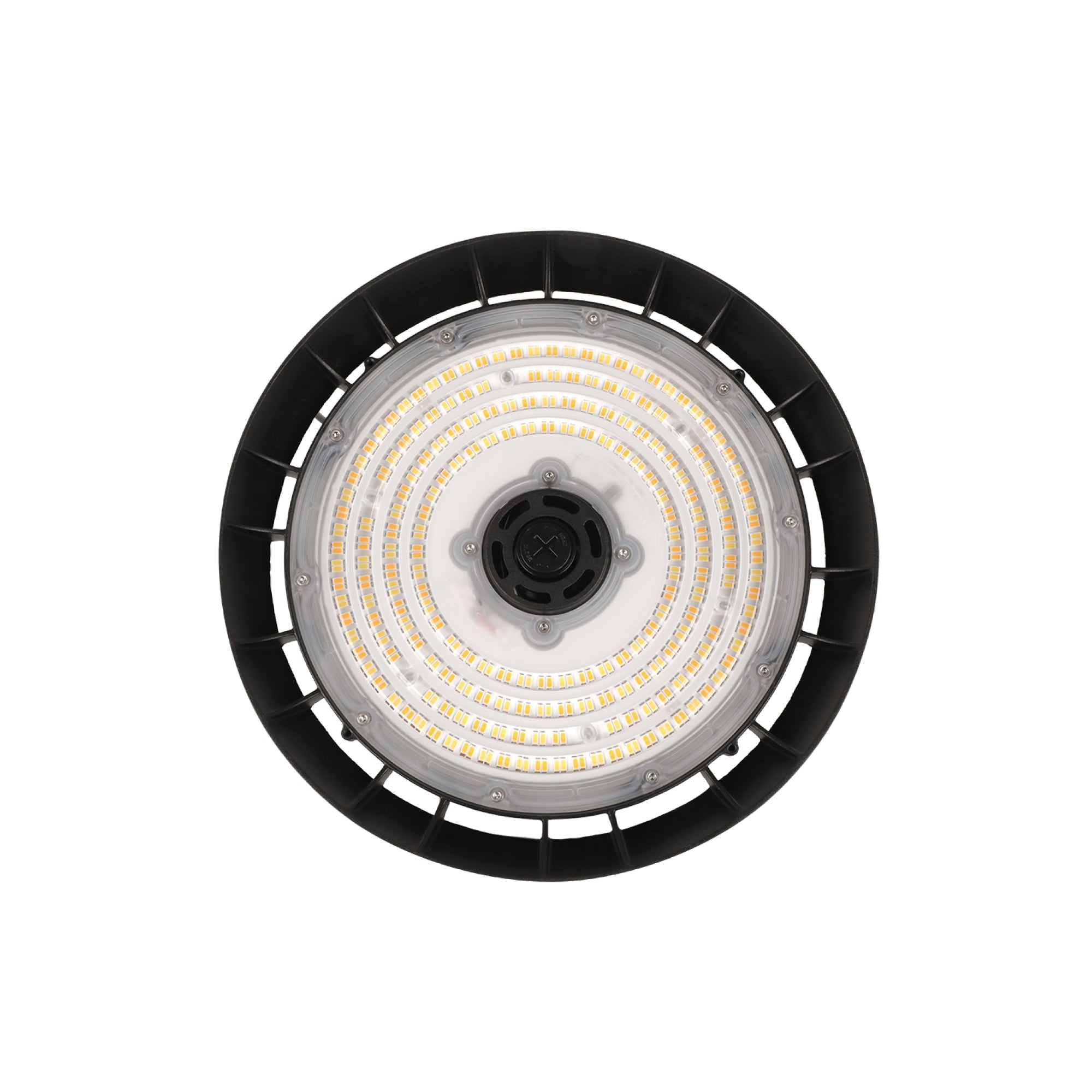

Eagleshine Wall Packs HIGH BAYS P2335
When choosing lighting for commercial or industrial facilities with high ceilings, UFO led high bay lights are a simple yet effective solution. These round shaped fixtures project bright focused illumination to the area below. The compact design also makes them highly durable and energy-efficient. We carry UFO LED high bay lights with a wide range of lumen outputs, including specialized fixtures with adjustable wattage, dimming, and motion sensor technology.
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
280X165mm, 280 x 165mm, 360x165mm, 360x165mm
100W, 150W, 200W, 240W
14500 lm, 21750 lm, 29000 lm, 34800 lm
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.
ETL/CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available
Switchable Color and Adjustable Lumen Technology. Faster installation and
cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth"
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...
Parking Lots
Warehouse
Specification Comparison
 P2335-100
|
P2335-150
|
P2335-200
|
P2335-240
|
|
| Size | 280 x 165mm | 280 X 165mm | 360 x 165mm | 360 x 165mm |
| Nominal Wattage | 100W | 150W | 200W | 240W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 14500 lm | 21750 lm | 29000 lm | 34800 lm |
| Nominal Efficacy | 145 lm/w | 145 lm/w | 145 lm/w | 145 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
