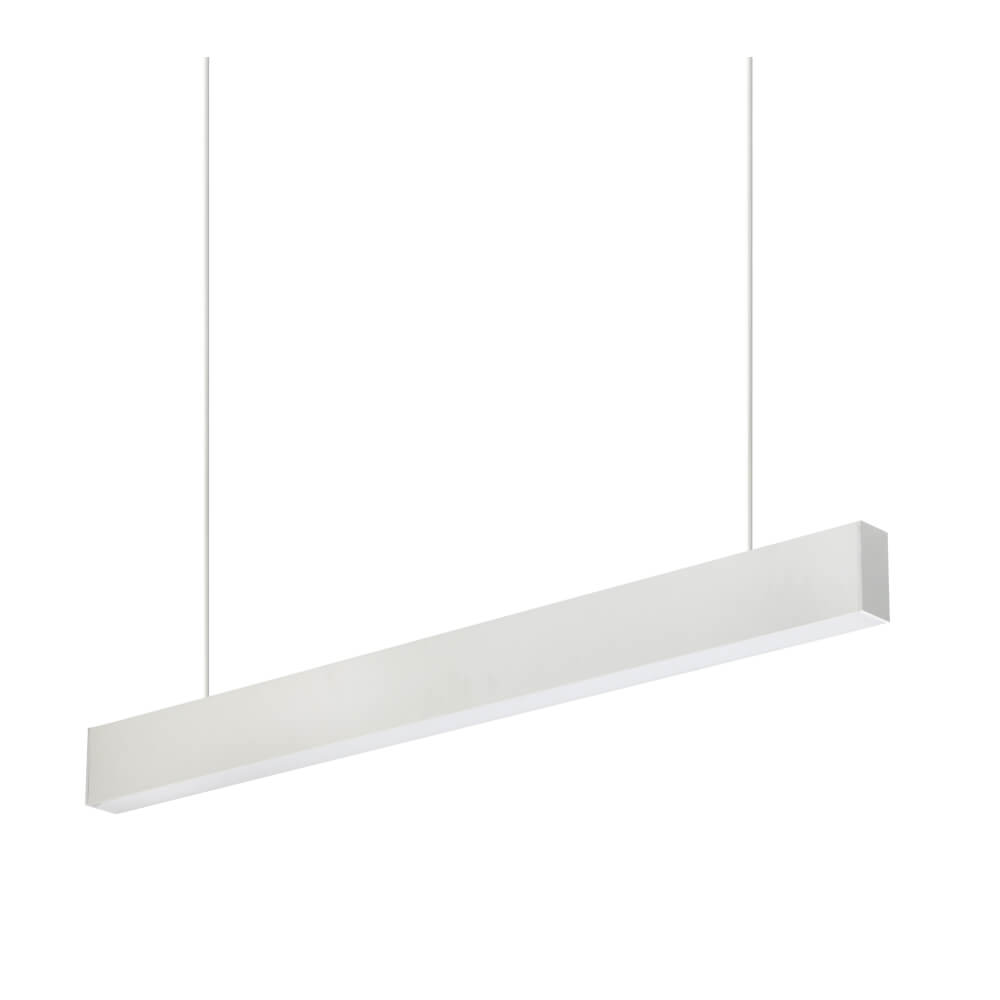

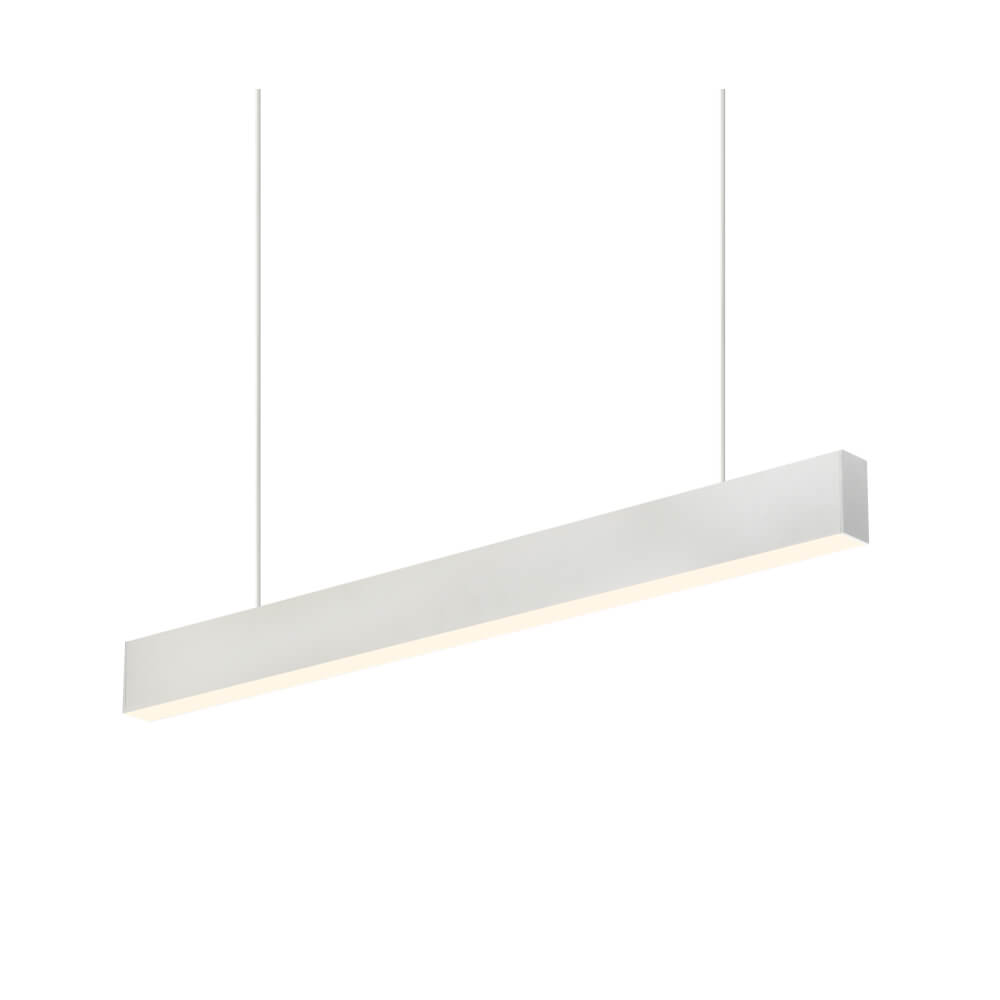

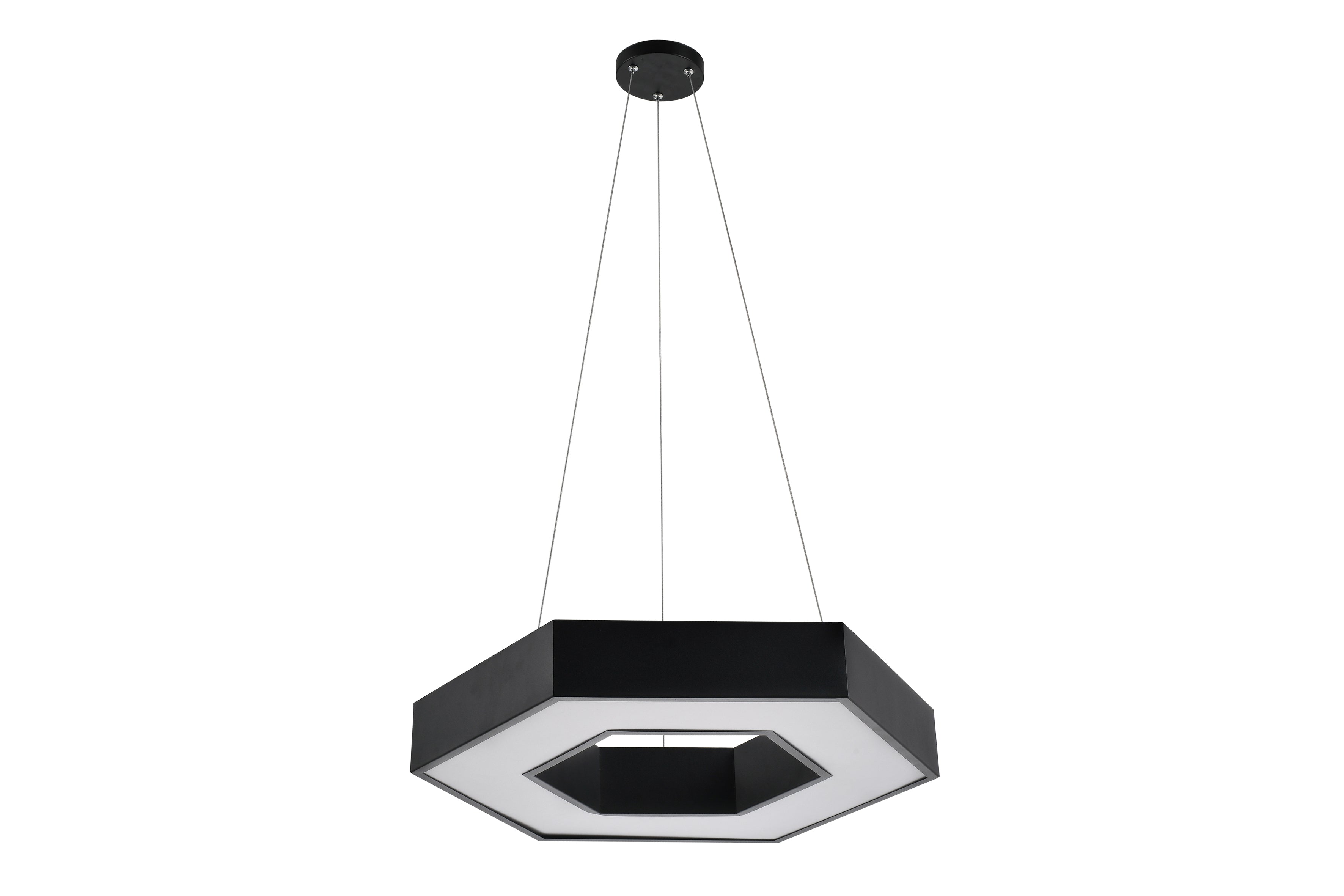

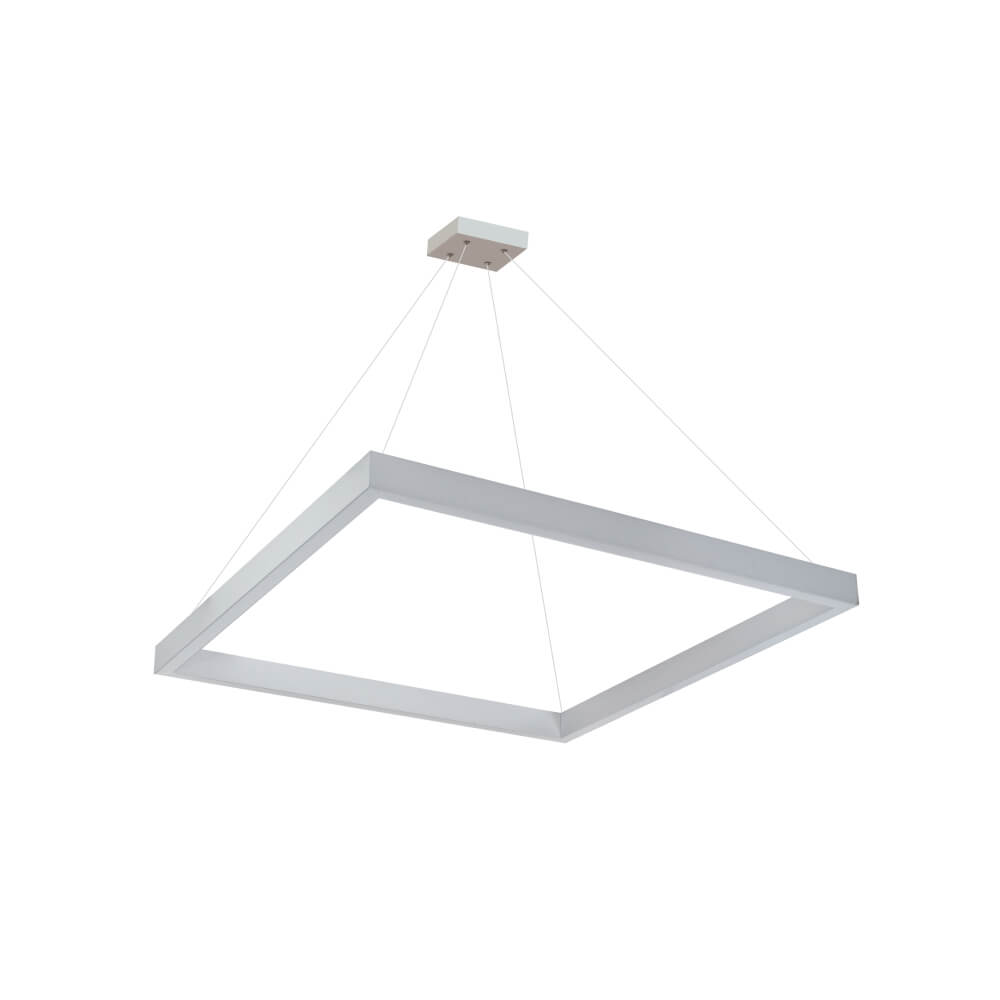

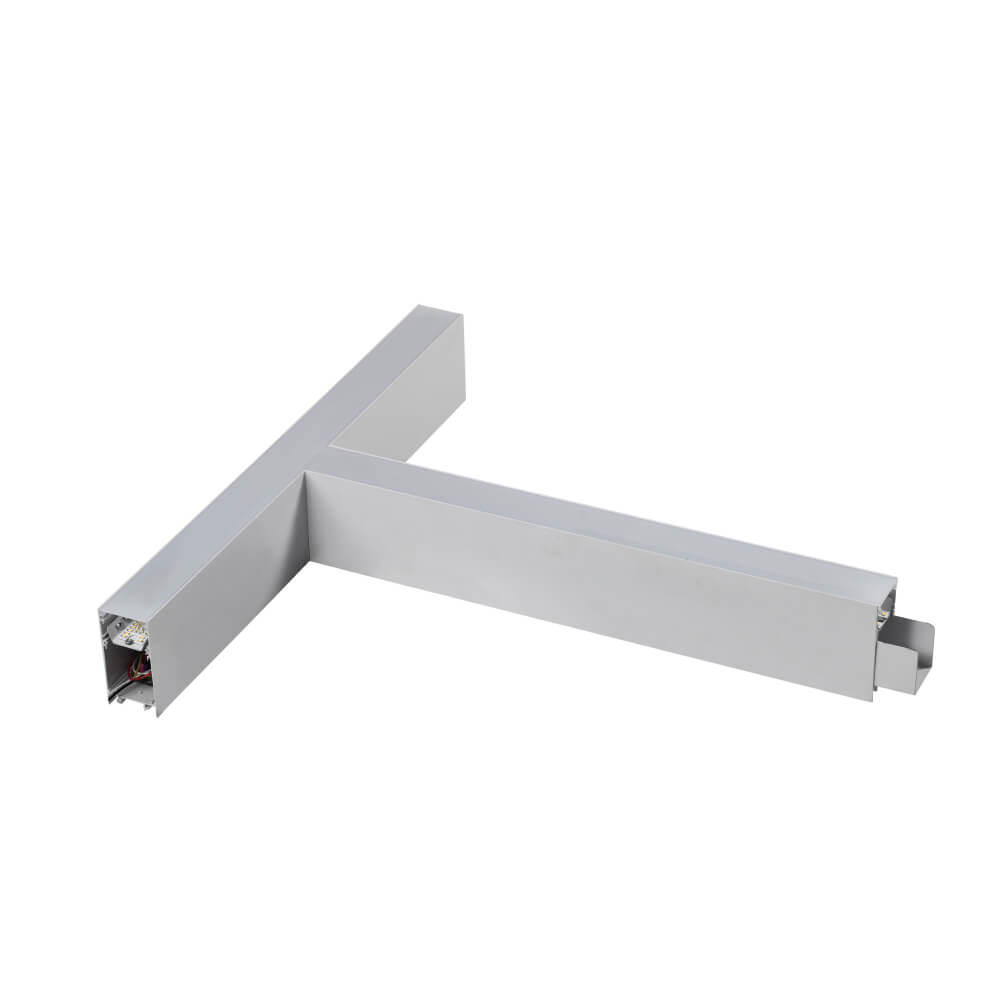

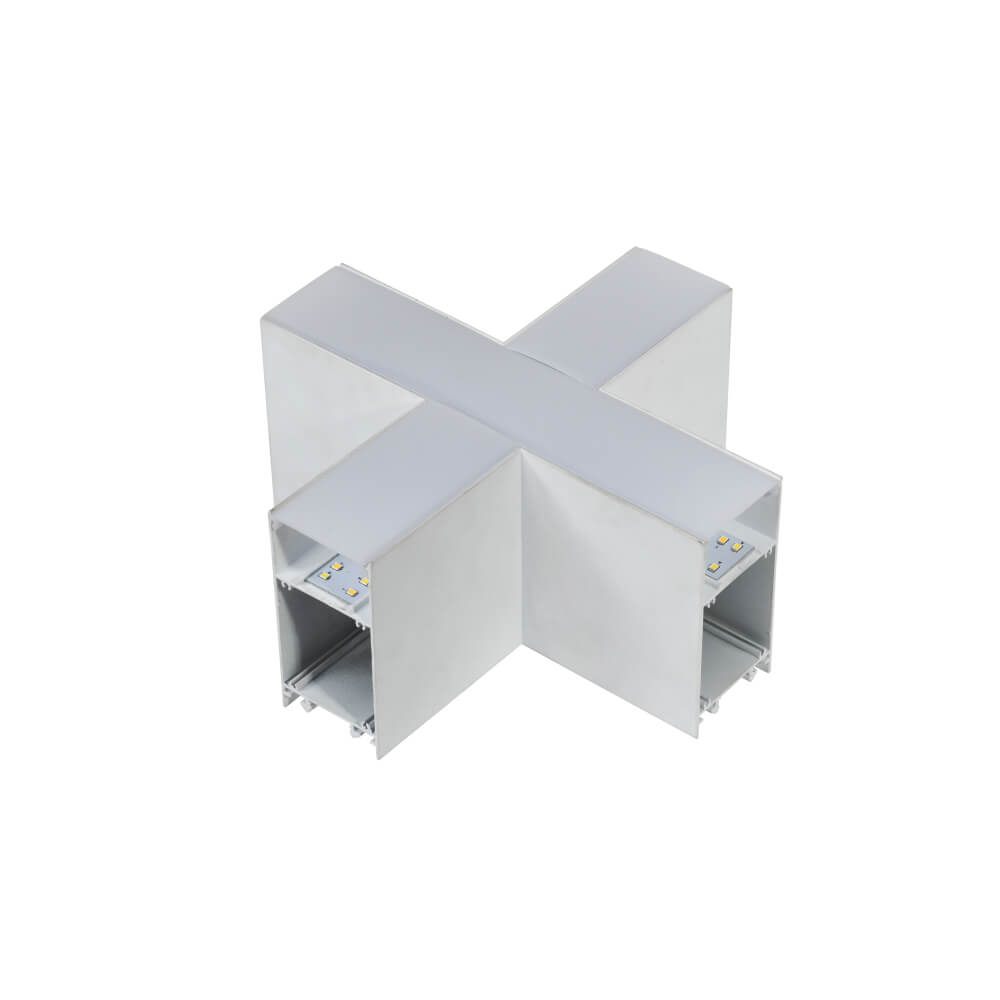

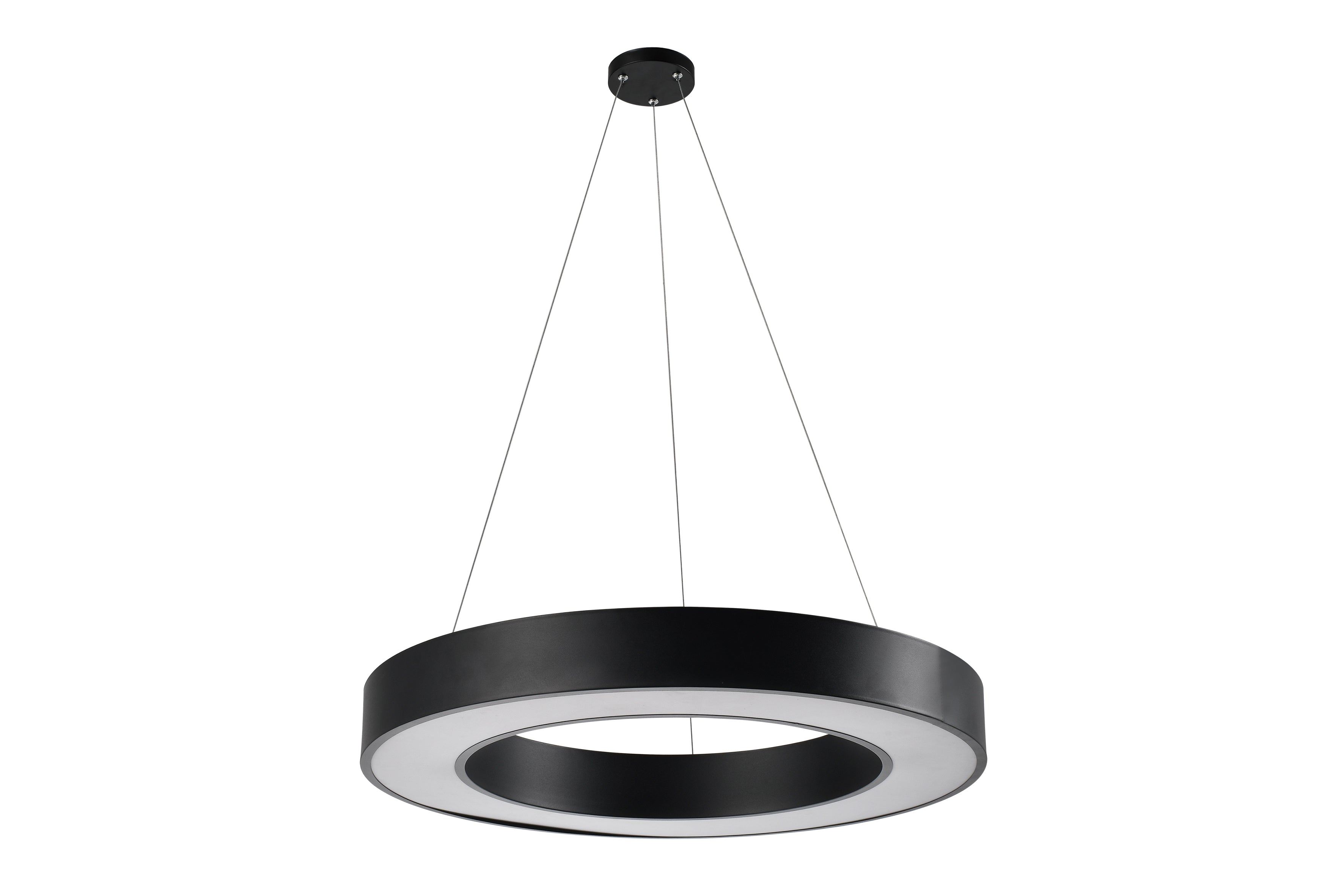

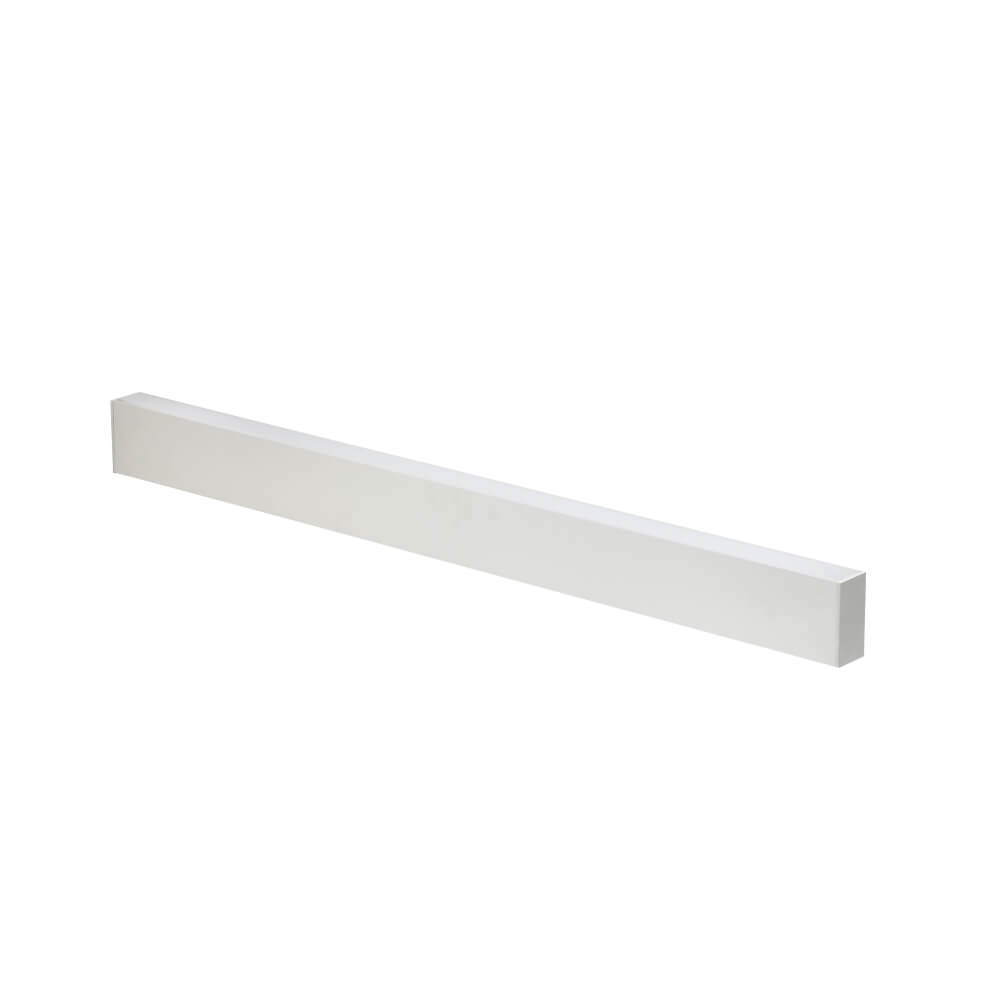

The linkable linear pendant up and down light 2ft 4ft 8ft combination with different shape 120-277V 0-10V dimming ETL and DLC listed emergency and sensor control ready
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
1ft, 2ft, 4ft, 6ft, 8ft
6.5/10/13W, 13/19/25W, 25/38/50W, 35/55/65W, 50/75/100W
1495 lm-11500 lm
Value
2700K/3000K/3500K/4000K/5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...

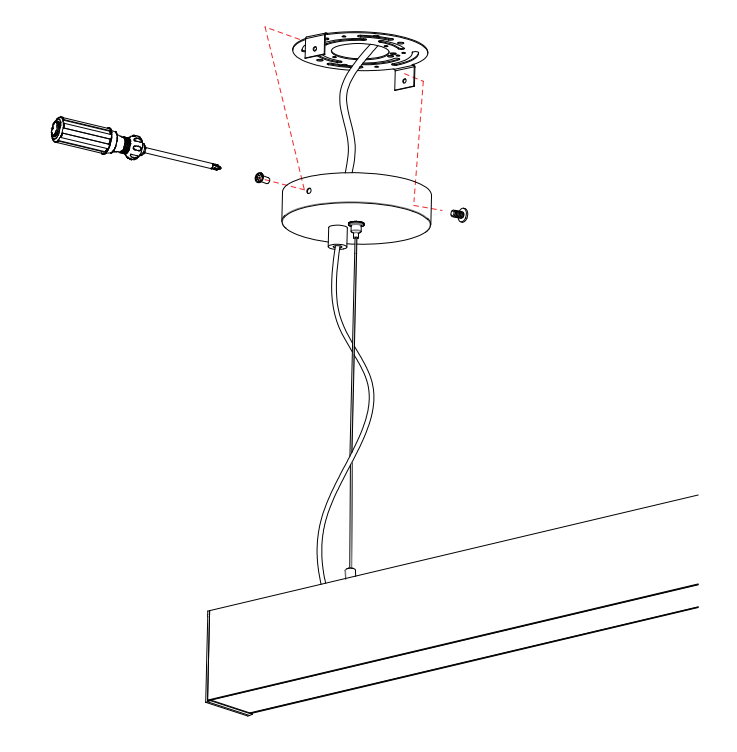

Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

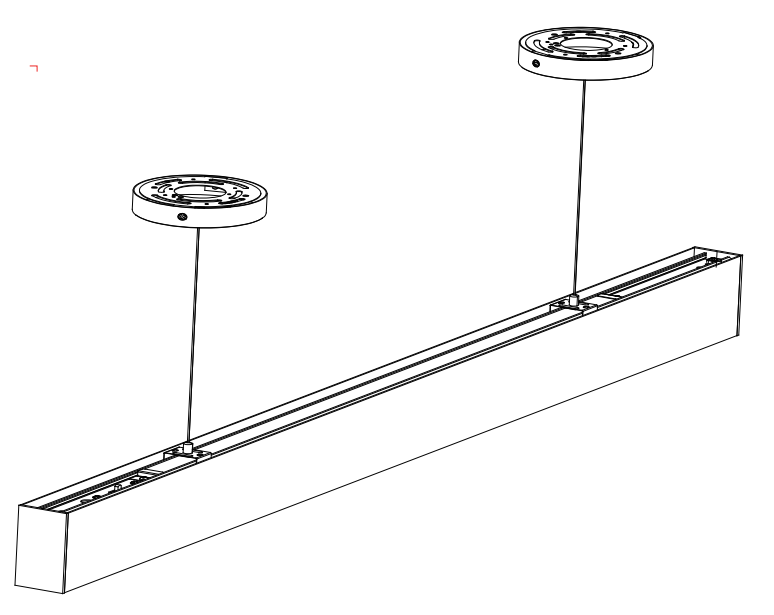

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Specification Comparison
HG-L242S-131F
|
HG-L242S-252F
|
HG-L242S-504F
|
HG-L242S-756F
|
HG-L242S-1008F
|
HG-L242S-1008F
|
HG-L242S-1008F
|
|
Size | 374x50x100mm | 574x50x100mm | 1174x50x100mm | 1474x50x100mm | 1474x50x100mm | 1774x50x100mm | 2474x50x100mm |
Nominal Wattage | 6.5/10/13W | 13/19/25W | 25/38/50W | 35/55/65W | 50/75/100W | 50/75/100W | 50/75/100W |
Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
Lumen Delivered | 1495 lm | 2875 lm | 5750 lm | 7475 lm | 11500 lm | 11500 lm | 11500 lm |
Nominal Efficacy | 115 lm/w | 115 lm/w | 115 lm/w | 115 lm/w | 115 lm/w | 115 lm/w | 115 lm/w |
CCT | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K | 2700K/3000K/3500K/4000K/5000K |
CRI | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
