Led Pendant Light model Dimmable Light Fixture Remote Height Adjustable Ceiling Lamp wattage selectable 20W-80W CCT selectable 3000K to 5000K 120-277V 0-10V dimming

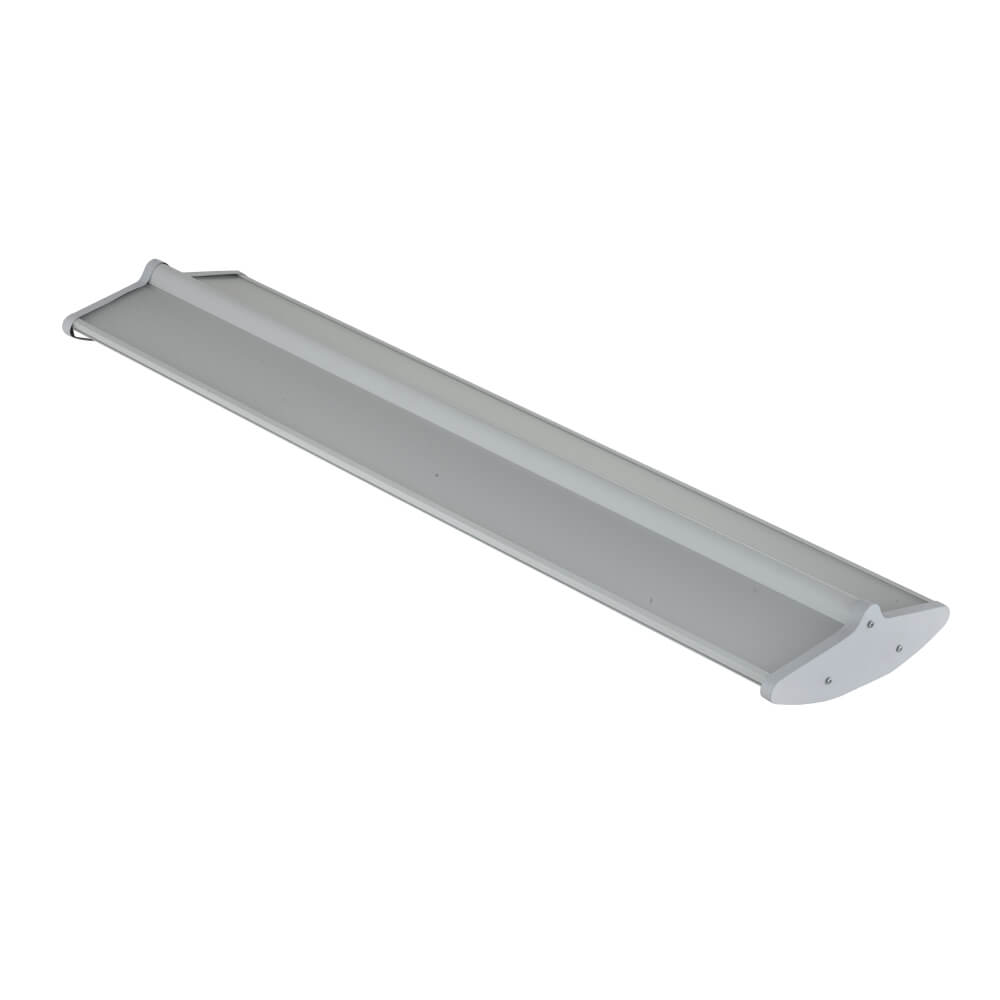

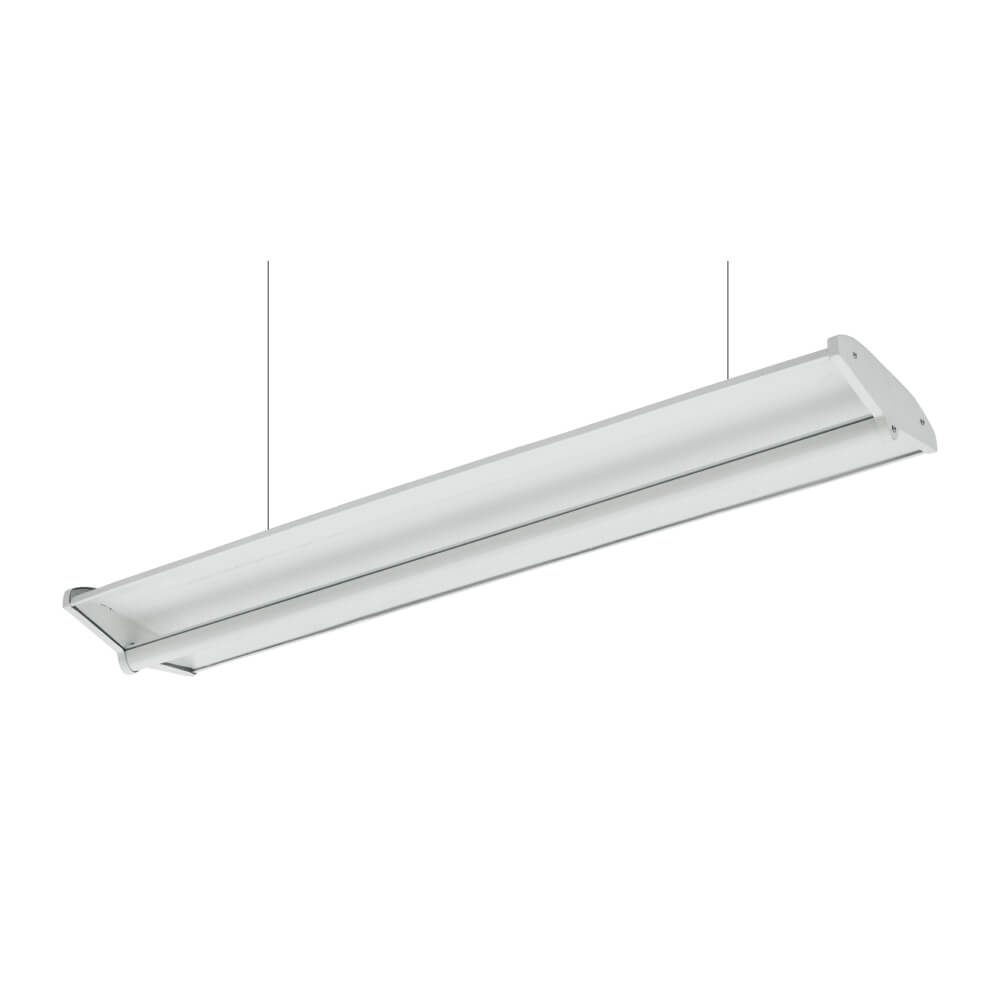

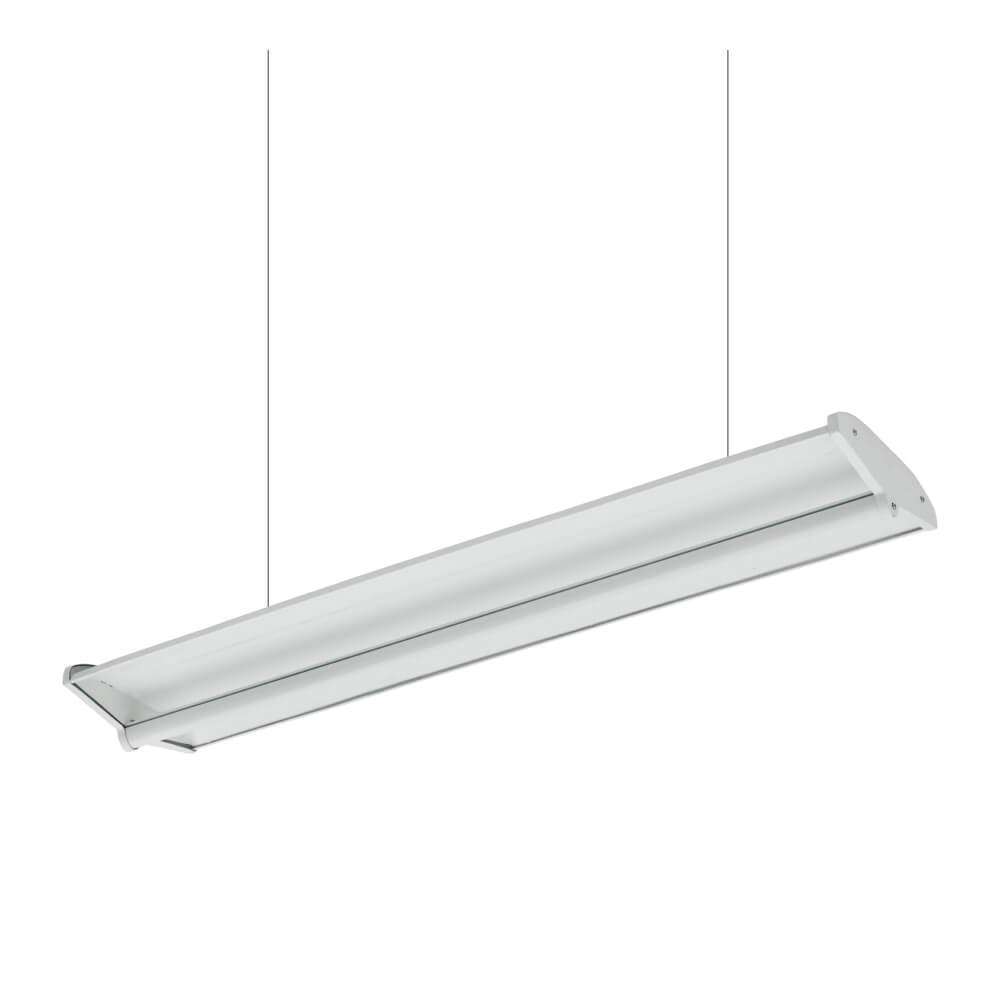

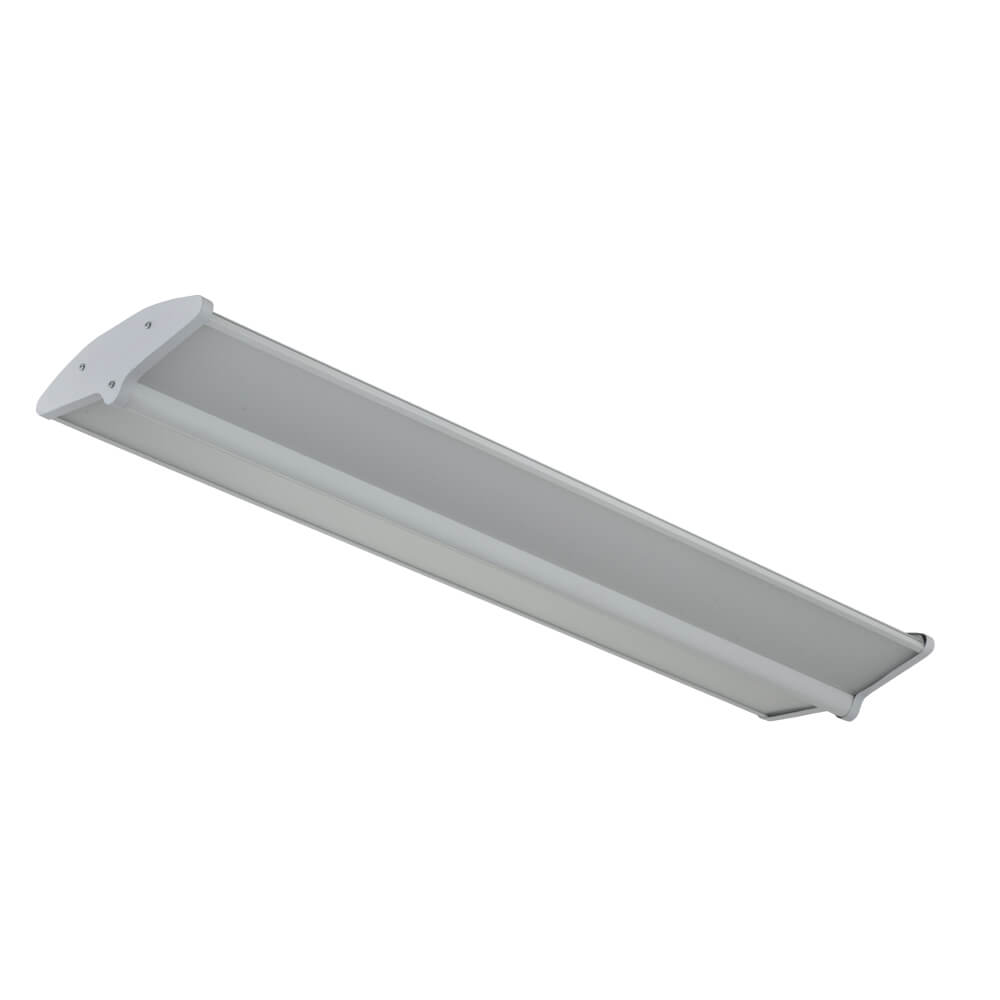

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.

Design and Installation

Organize content into multiple columns to share useful information to your customers about your products, values...

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification

Product
Product
Product
Product
Product
Product
Size

603x603x55mm

1213x303x55mm

1213x603x55mm

Nominal Wattage

20/30/35W

30/40/50W

30/40/50W

InputVoltage

AC 120-277V, 120-347V

AC 120-277V, 120-347V

AC 120-277V, 120-347V

Lumen Delivered

4375 lm

6250 lm

6250 lm

Nominal Efficacy

125 lm/w

125 lm/w

125 lm/w

CCT

3000K/3500K/4000K/5000K

3000K/3500K/4000K/5000K

3000K/3500K/4000K/5000K

CRI

>80

>80

>80

Power Factor

>0.9

>0.9

>0.9

Dimming

0-10V

0-10V

0-10V

Operating Temperature

-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )

-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )

-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )

Warranty

5 Years

5 Years

5 Years
