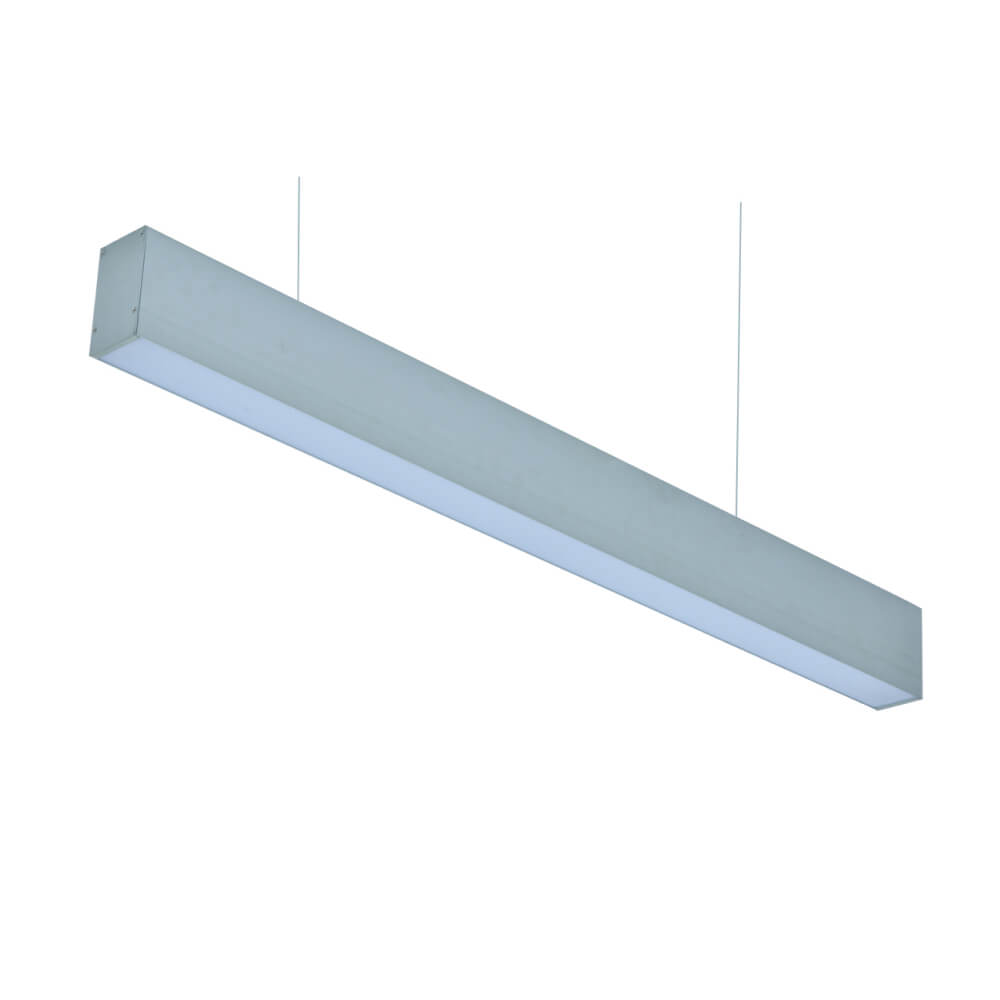

Suspended 1x4 LED pendant light with up/down direct/indirect illumination by Halcon Lighting, offering a 70:30 light split and emergency backup option
Suspended LED Pendant Light Up/Down HG-L242UD by Halcon with 70:30 direct/indirect light split for commercial spaces

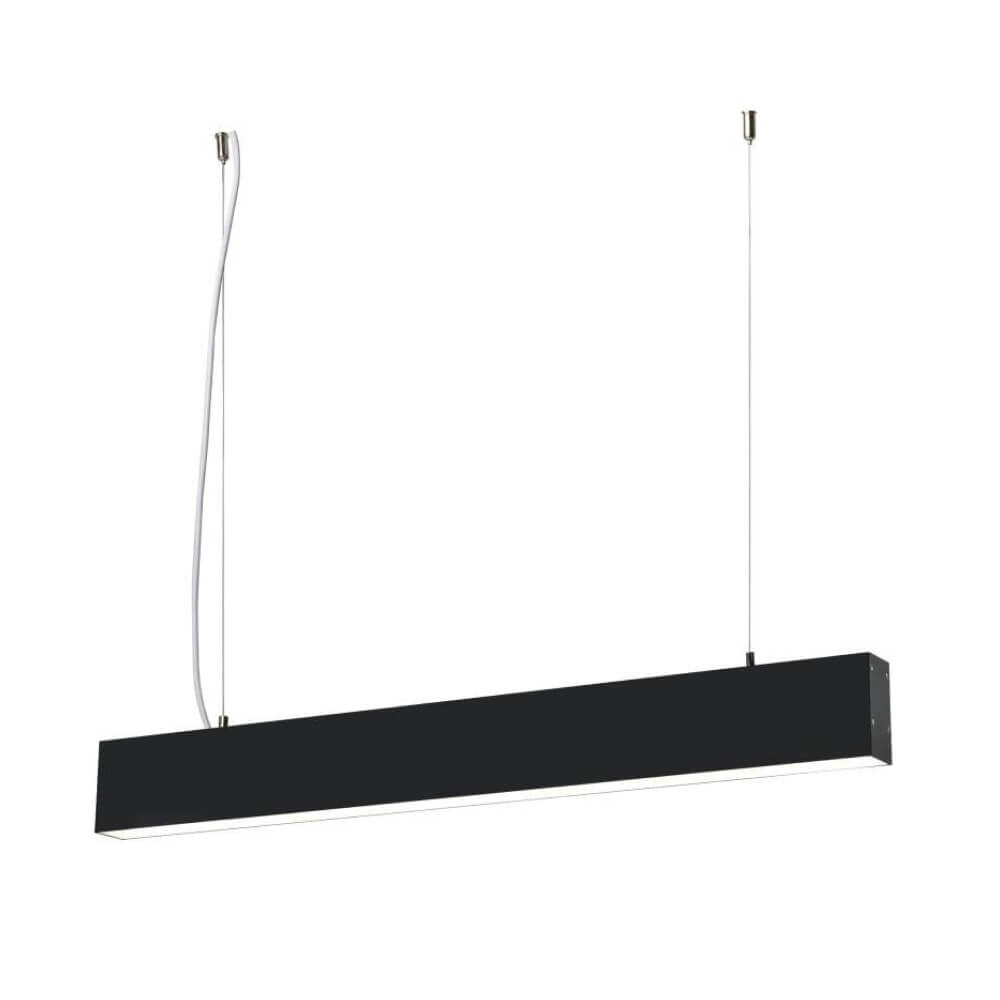

LED linear architectural pendant light linkable 2ft 4ft 8ft 120-277V 0-10V dimming emergency back up and sensor control ready
LED linear architectural pendant light linkable 2ft 4ft 8ft 120-277V 0-10V dimming emergency back up and sensor control ready
LED linear architectural pendant light linkable 2ft 4ft 8ft 120-277V 0-10V dimming emergency back up and sensor control ready
LED linear architectural pendant light linkable 2ft 4ft 8ft 120-277V 0-10V dimming emergency back up and sensor control ready
LED linear architectural pendant light linkable 2ft 4ft 8ft 120-277V 0-10V dimming emergency back up and sensor control ready

LED linear architectural pendant light linkable 2ft 4ft 8ft 120-277V 0-10V dimming emergency back up and sensor control ready

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides a 70:30 split of light between the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.
Size: 1ft
Watts(W): 13W
Log in or Sign up to Purchase
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

1ft, 2ft, 4ft, 6ft, 8ft

Watts(W)

13W/25W/50W/75W/100W

Lumen(lm)

1495 lm-11500 lm

Heading

Value

CCT(K)

3000K/3500K/4000K/5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

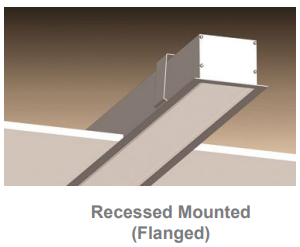

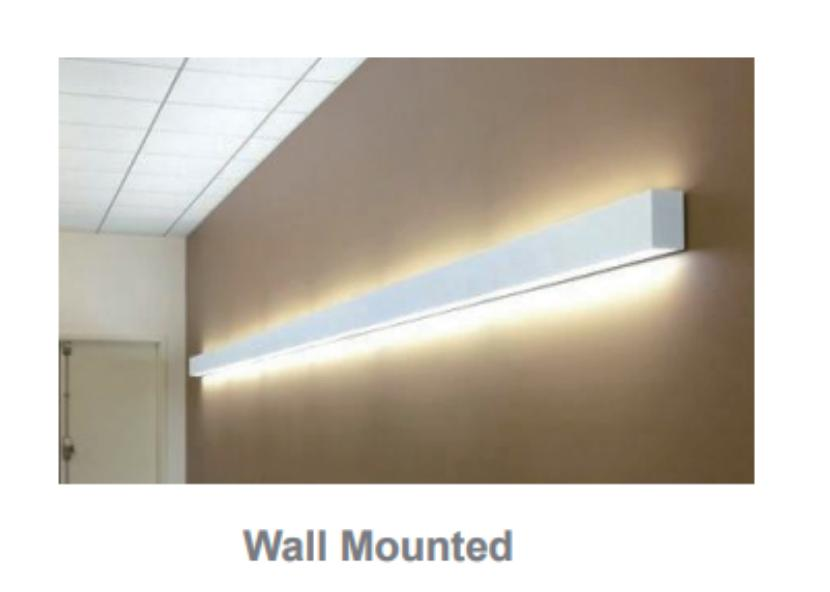

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification Comparison

HG-L242UD-131F
HG-L242UD-252F
HG-L242UD-504F
HG-L242UD-756F
HG-L242UD-1008F
HG-L242UD-1008F
HG-L242UD-1008F
Size 374x50x100mm 574x50x100mm 1174x50x100mm 1474x50x100mm 1474x50x100mm 1774x50x100mm 2474x50x100mm
Nominal Wattage 6.5/10/13W 13/19/25W 25/38/50W 35/55/65W 50/75/100W 50/75/100W 50/75/100W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 1495 lm 2875 lm 5750 lm 7475 lm 11500 lm 11500 lm 11500 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K 2700K/3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
