Linkable linear LED pendant up and down light 2ft 4ft 8ft combination with different shape 120-277V 0-10V dimming ETL and DLC listed emergency and sensor control ready

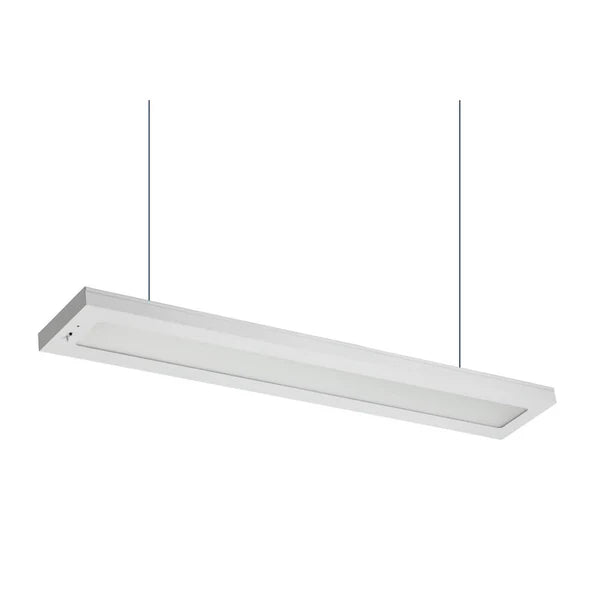

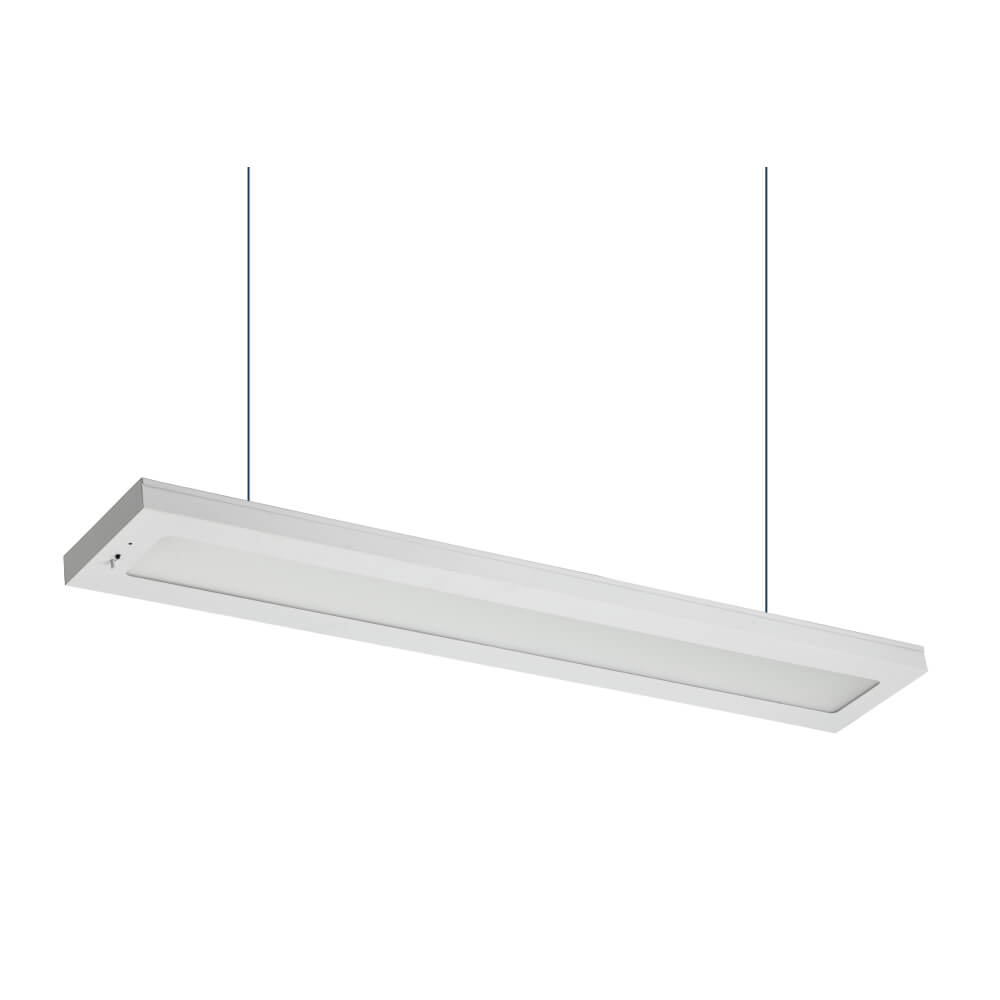

Illuminate any commercial space beautifully with Halcon's P1832 LED pendant light. This unique fixture provides the perfect balance of directed task lighting and soft, ambient glow.

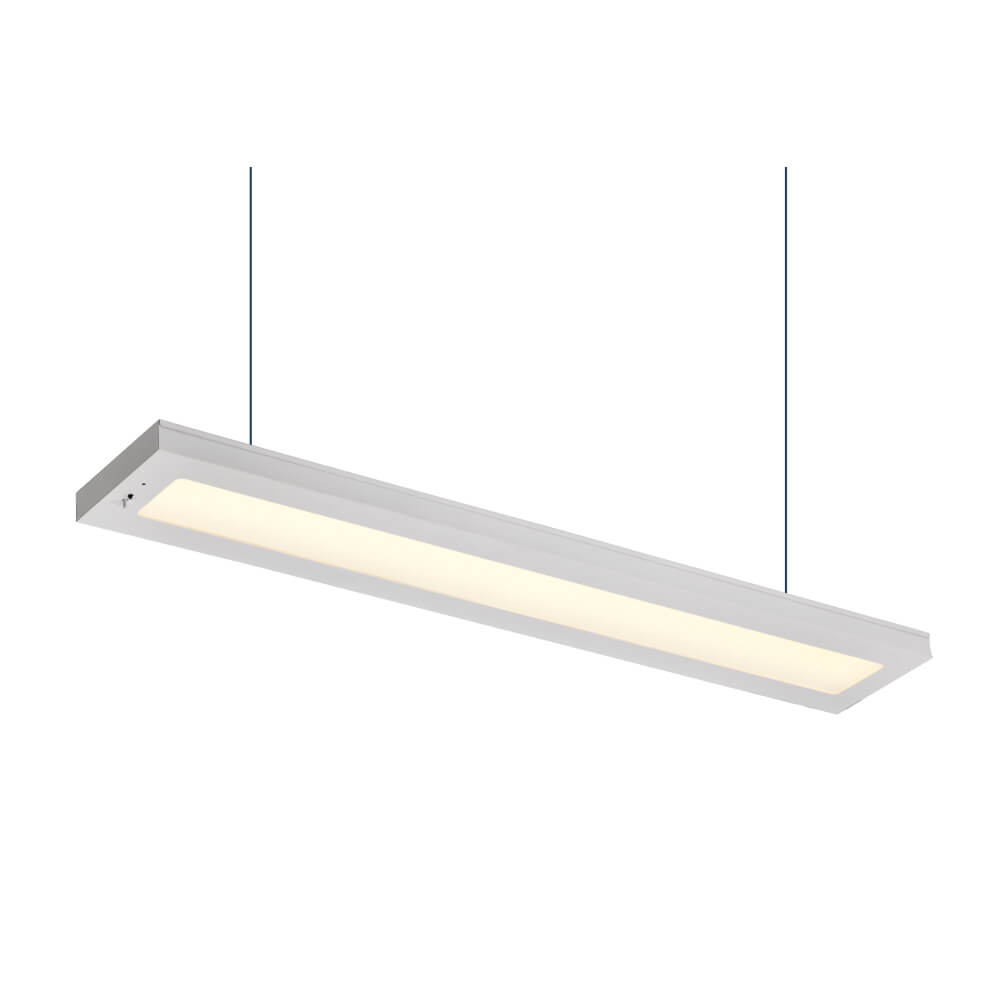

Halcon engineered the P1832 with a cutting-edge 70/30 split design. 70% of the light shines down directly from the linear LEDs to brightly light work areas below. The remaining 30% illuminates the space above, creating a warm, inviting ambiance.
Built for Flexibility, Scaled for Your Needs
The P1832 comes in multiple sizes from 2-8 feet to fit your space requirements. Our field-selectable CCTs (3000K-5000K) and wattages allow you to customize both the color temperature and brightness as needed.
This LED pendant seamlessly integrates sensor controls, emergency backup and dimming capabilities. With an exceptional 115 lumens per watt, the P1832 achieves up to 11500 lumens to replace outdated 400W+ metal halides. Dramatically boost lighting and energy efficiency.
Sleek, Sophisticated Styling
When off, the P1832 is an understated, transparent fixture that blends into any decor. Power it on to reveal exceptional uniformity and a clean, modern aesthetic.
The commercial-grade P1832 outperforms older fluorescent or HID alternatives. Upgrade your space with brilliant LED technology and customizable performance from Halcon Lighting.
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
2ft, 4ft, 5ft, 8ft
20/25/40W, 40W/50W/60W, 50W/60W/70W, 80W/90W/100W
2300 lm-11500 lm
Value
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option

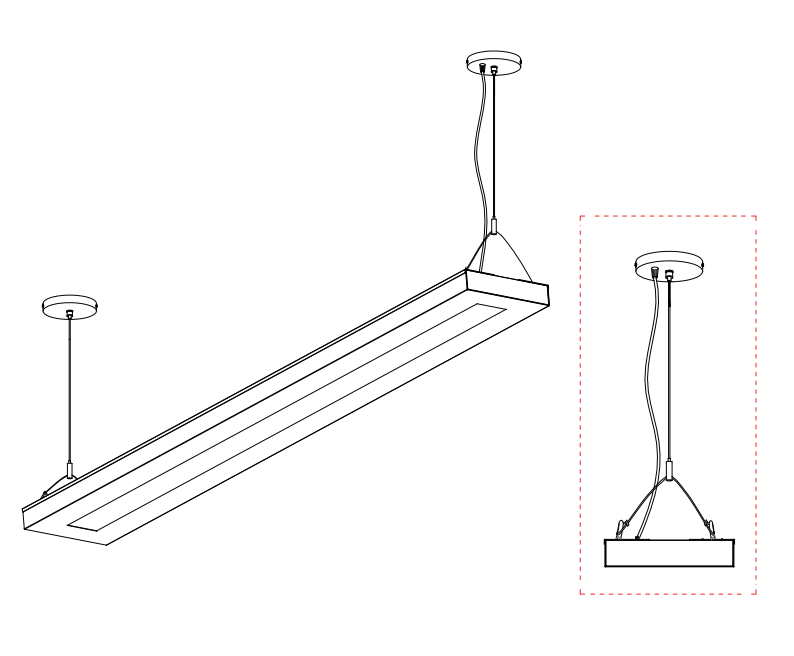

• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...

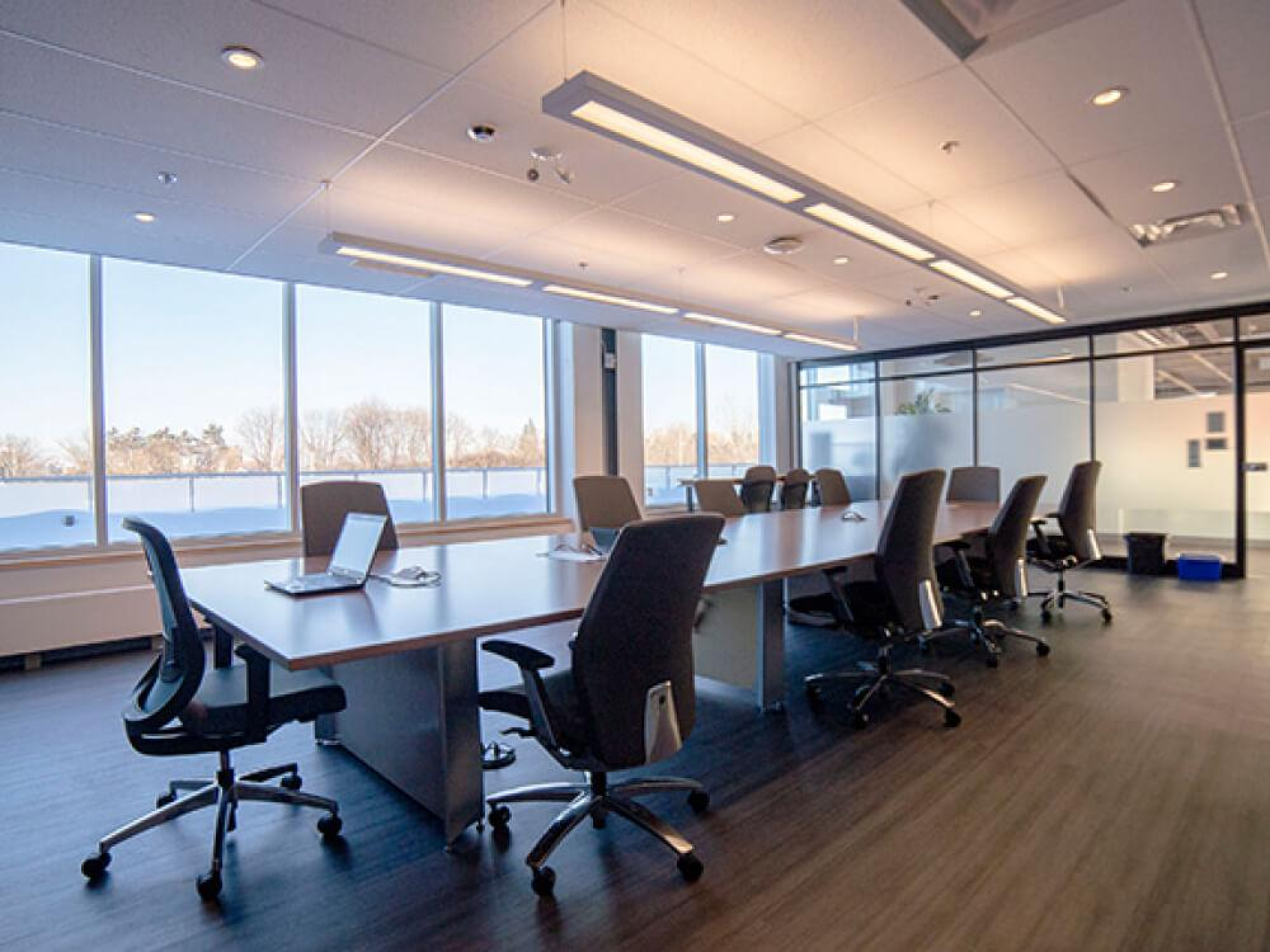

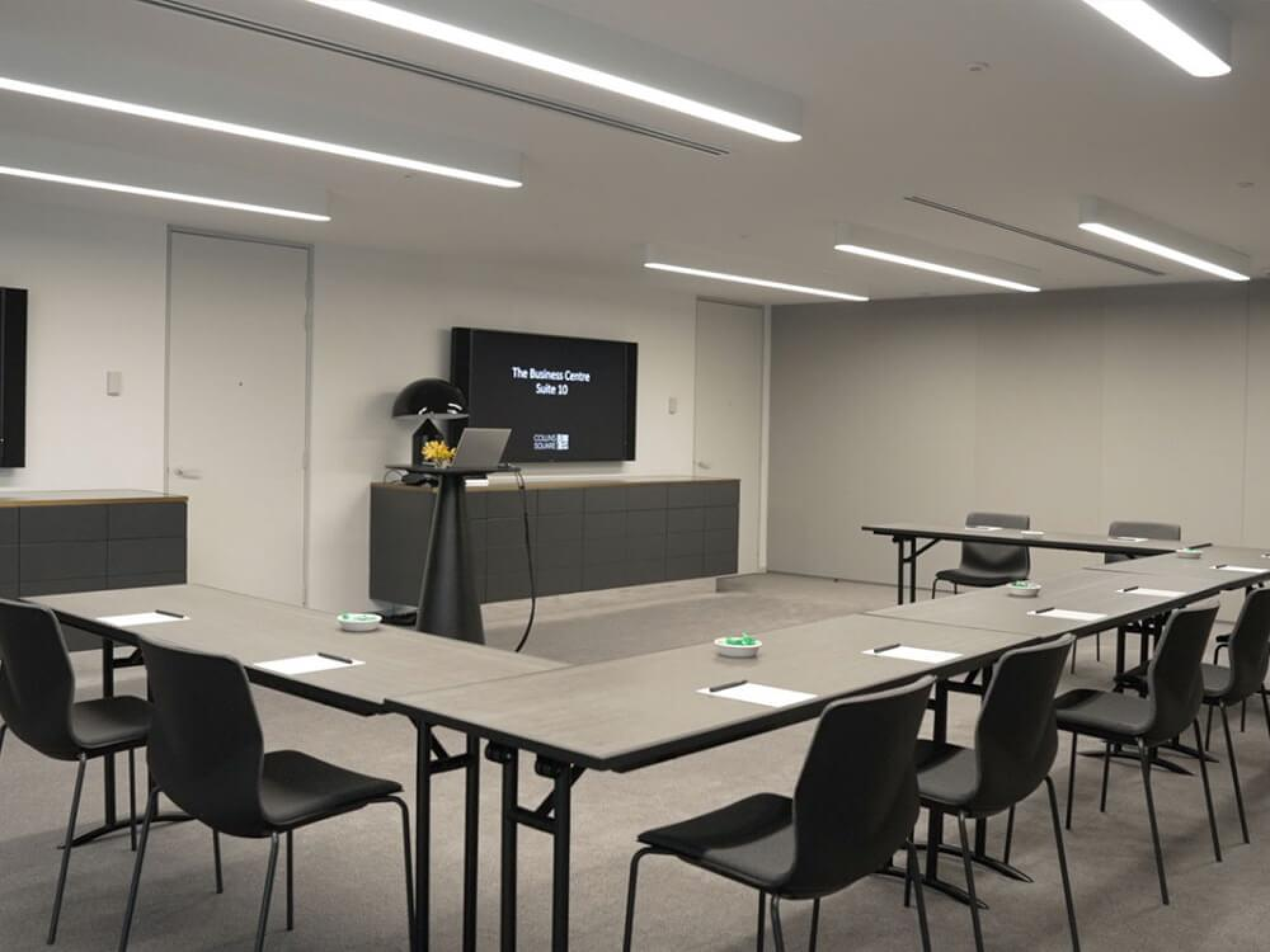

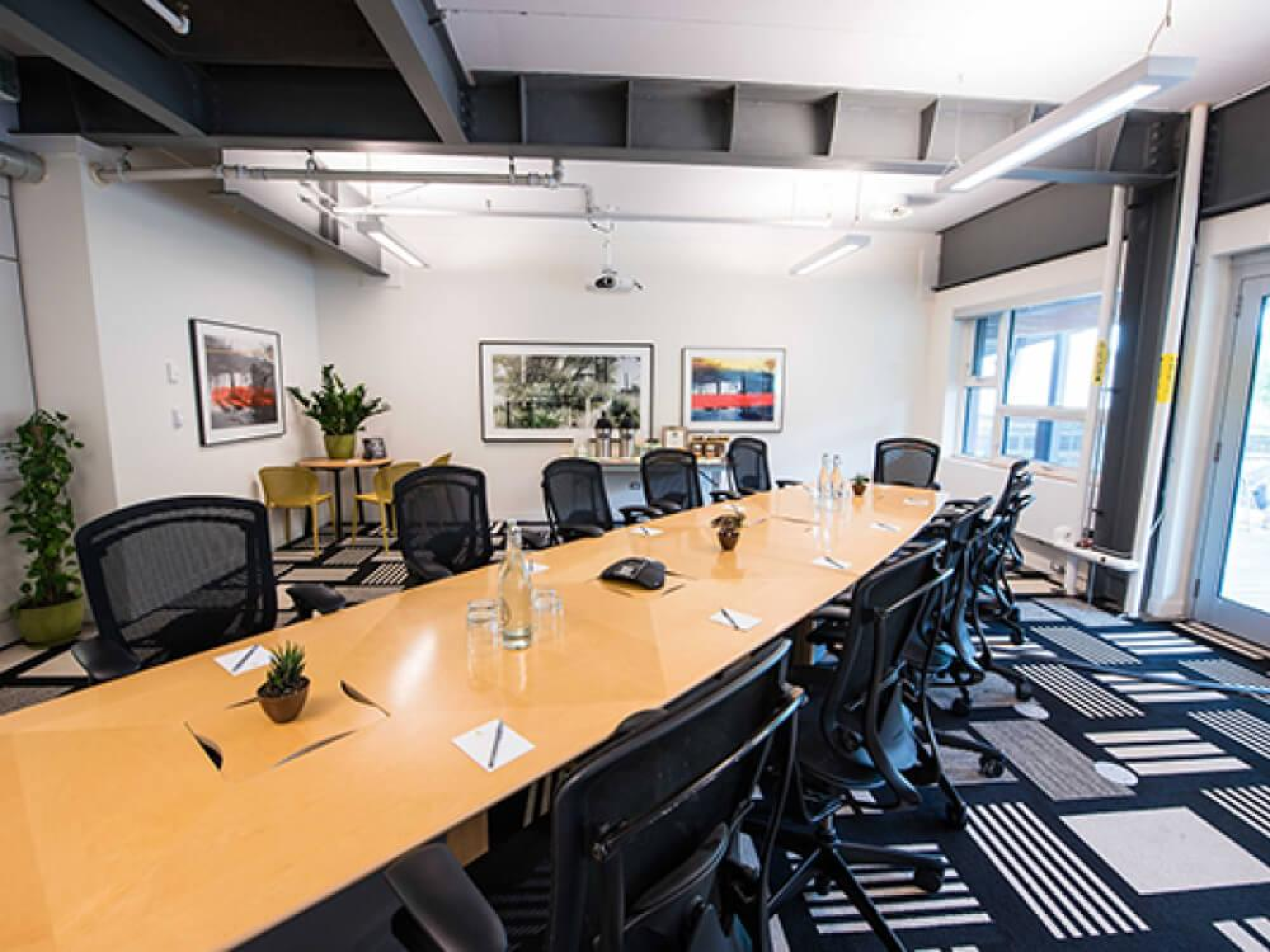

meeting room
meeting room
meeting room
Specification Comparison
 P1832-402F
|
P1832-604F
|
P1832-705F
|
P1832-1008F
|
|
| Size | 606x170x50mm | 1206x170x50mm | 1506x170x50mm | 2445x170x50mm |
| Nominal Wattage | 20/25/40W | 40W/50W/60W | 50W/60W/70W | 80W/90W/100W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 4600 lm | 6900 lm | 8050 lm | 11500 lm |
| Nominal Efficacy | 115 lm/w | 115 lm/w | 115 lm/w | 115 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
