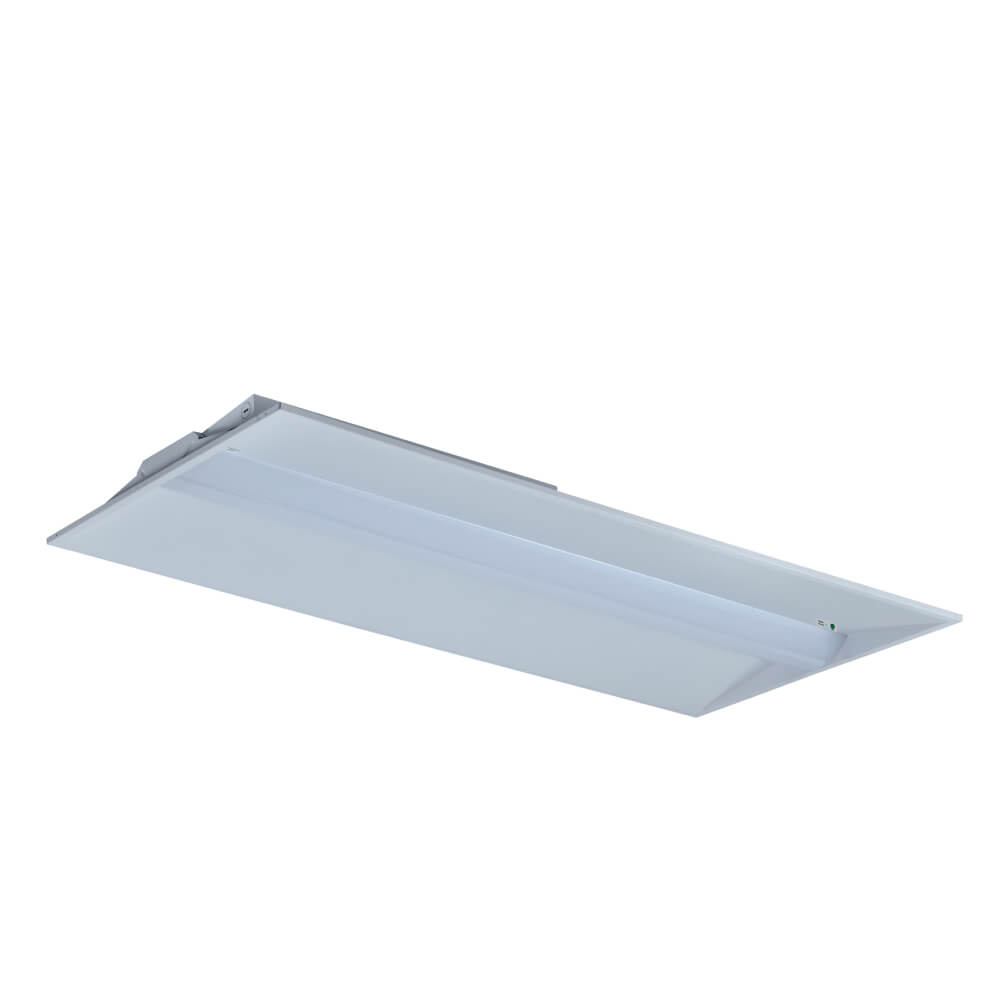

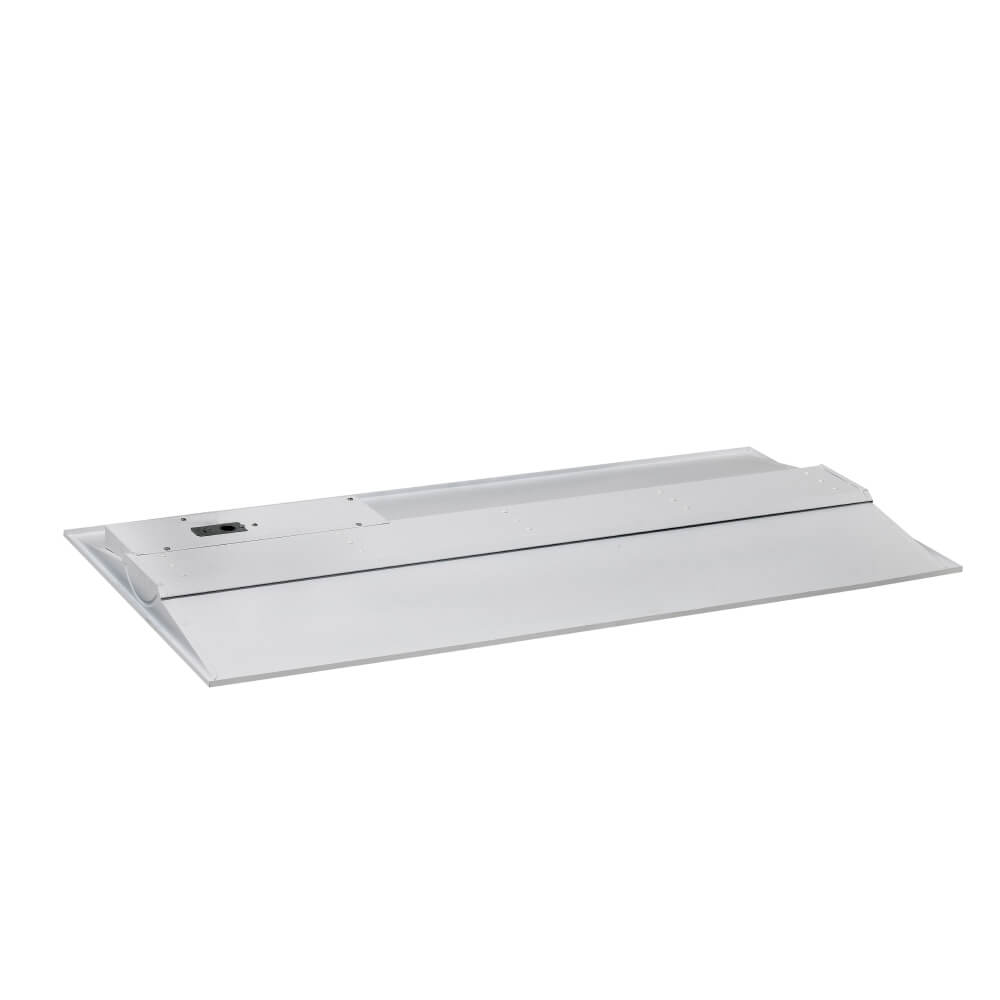

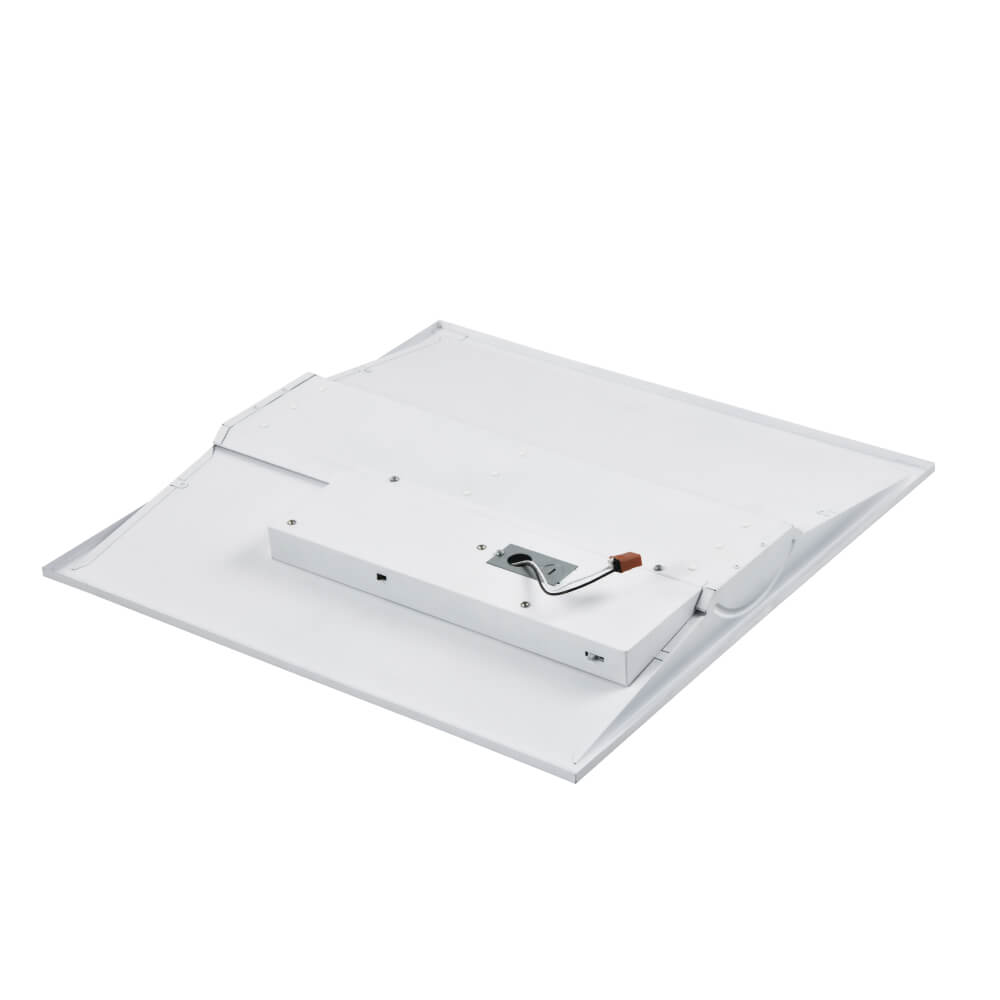

LED center basket troffer power select Color Select 20W to 70W 120-277V 0-10V Dimming Bluetooth sensor Emergency back up ETL listed


Meet the game-changing LED Troffer from Halcon - the lighting solution that takes your space into the future.

We're revolutionizing traditional fluorescent troffers with our slim, lightweight design that puts control in your hands. Select your perfect CCT, wattage and add sensors for next-level energy savings - it's flexible lighting tailored to your needs.

Our cutting-edge troffers are ideal for modern offices, schools, hospitals, hotels and stores. Just imagine walking into a space lit with crisp, bright LEDs - it's a brilliant combination of form and function.

With features like motion detection, daylight harvesting and dimming, you can maximize efficiency beyond just the LED conversion. We've thought of everything to provide next-gen illumination that's easy on the eyes and your energy bill.

The sleek style even enhances your interior aesthetic. It's the all-in-one troffer that delivers incredible performance, savings and appeal.

When you need powerful, attractive lighting over large areas, this is the smart solution. Experience the future of illumination with Halcon. Our LED troffers give you options, efficiency and lasting quality that says 'we mean business.'

l  20W-70W various wattage selectable,
l  125 LPW, comes in 2'x2', 2'x4', 1'x4'
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l
office, education, health care, hospitality and retail interiors


Watts(W): 20/30/35W
Size: 2'x2'
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

2'x2', 1'x4', 2'x4'

Watts(W)

20/30/35W, 30/40/50W, 50/60/72W

Lumen(lm)

4375 lm-9000 lm

Heading

Value

CCT(K)

3000K / 3500K / 4000K / 5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

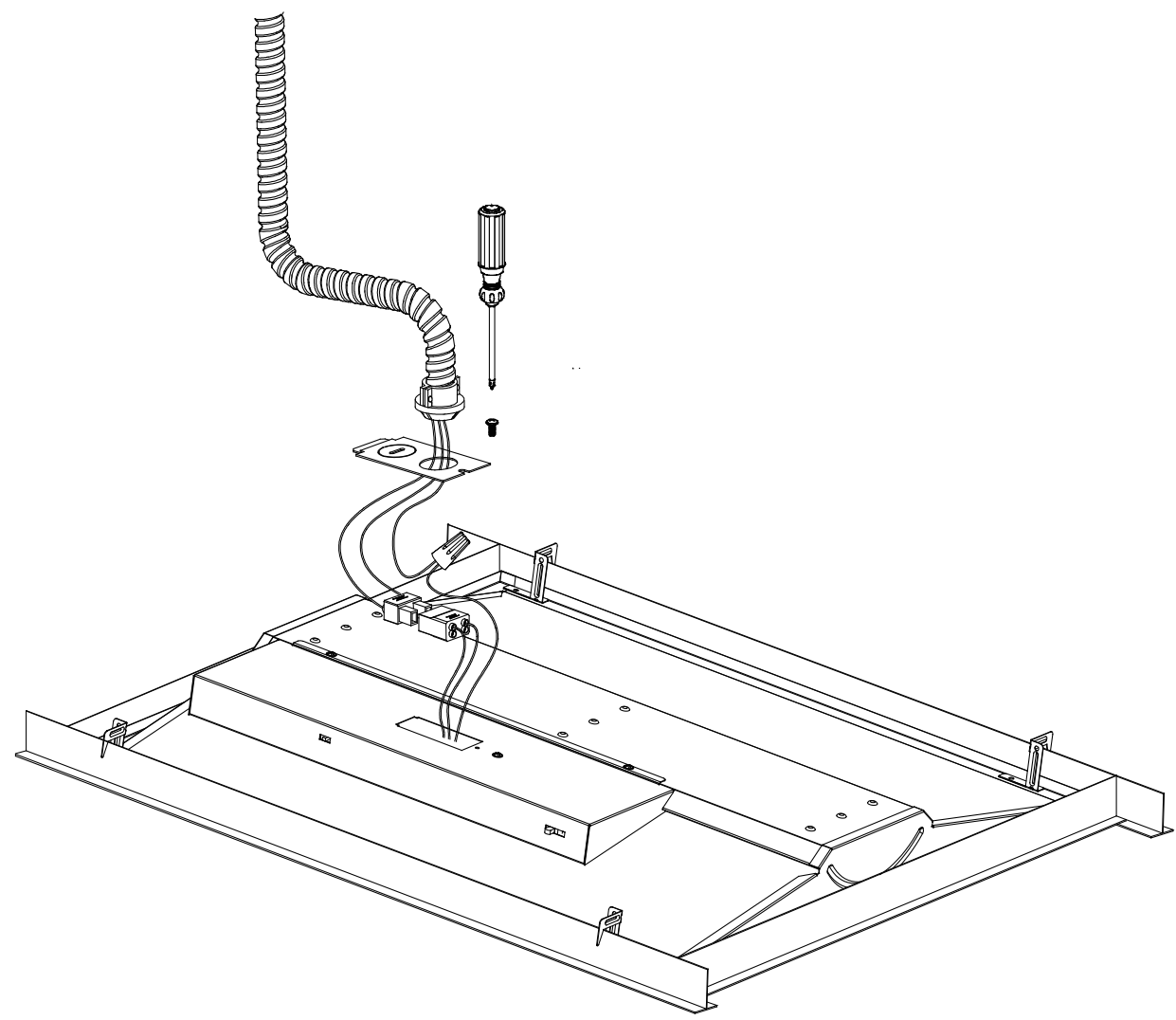

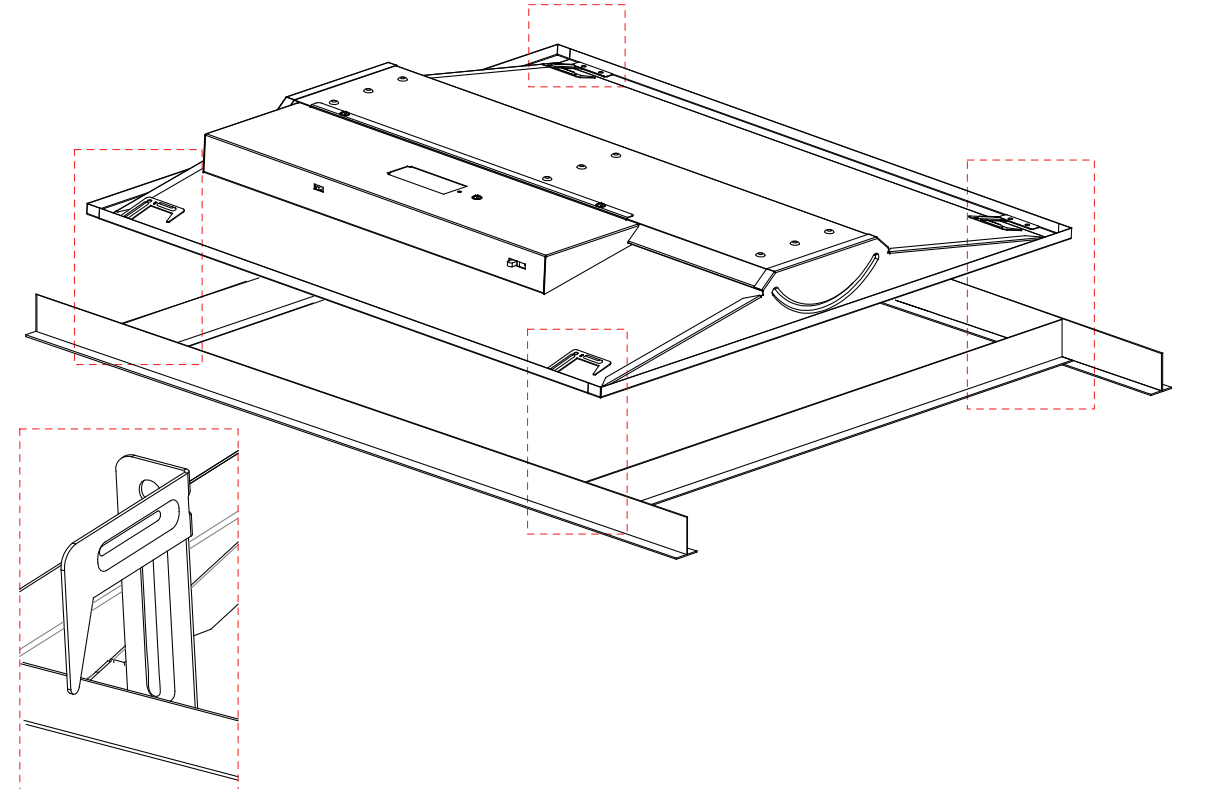

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

Organize content into multiple columns to share useful information to your customers about your products, values...

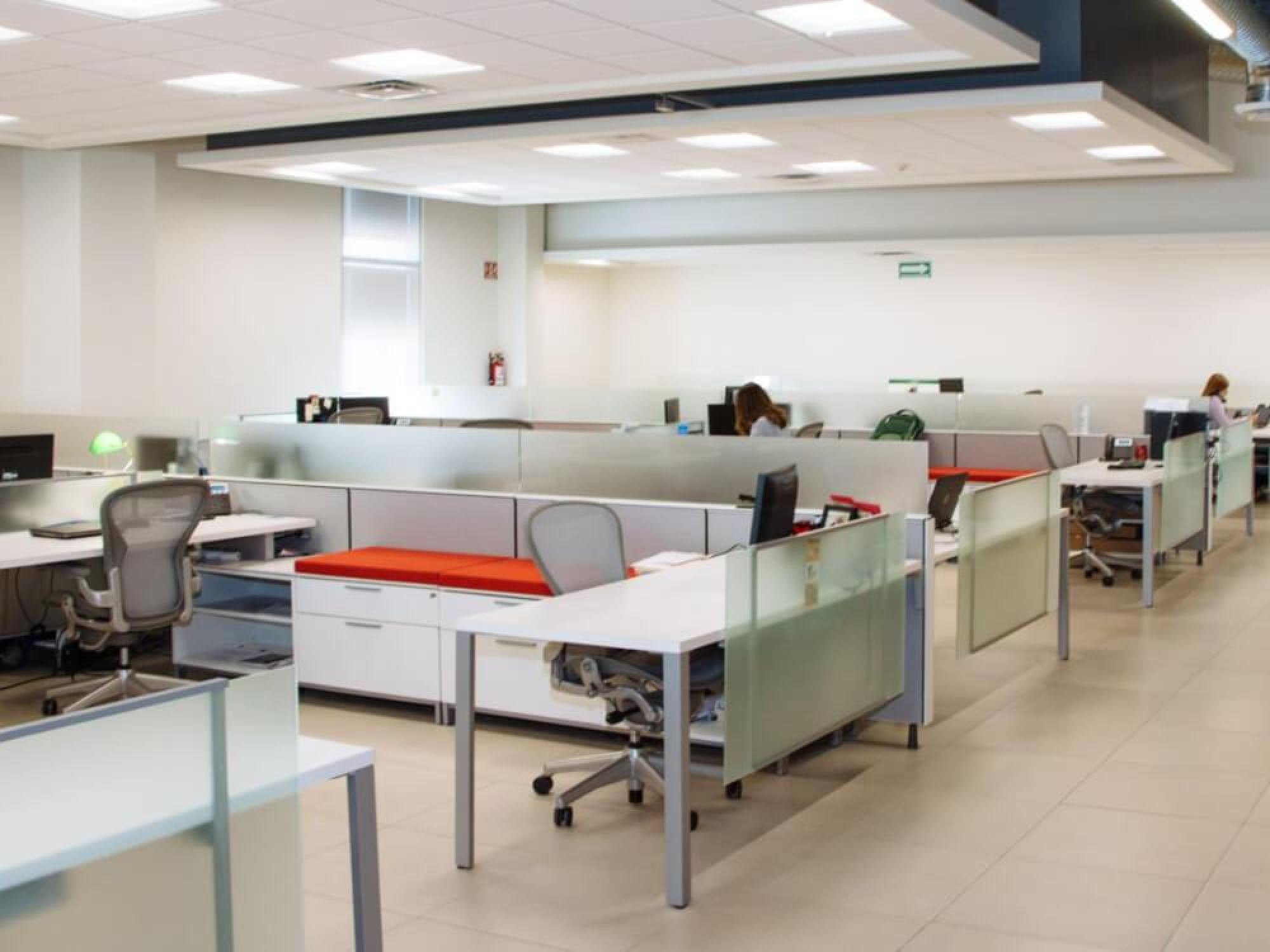

office

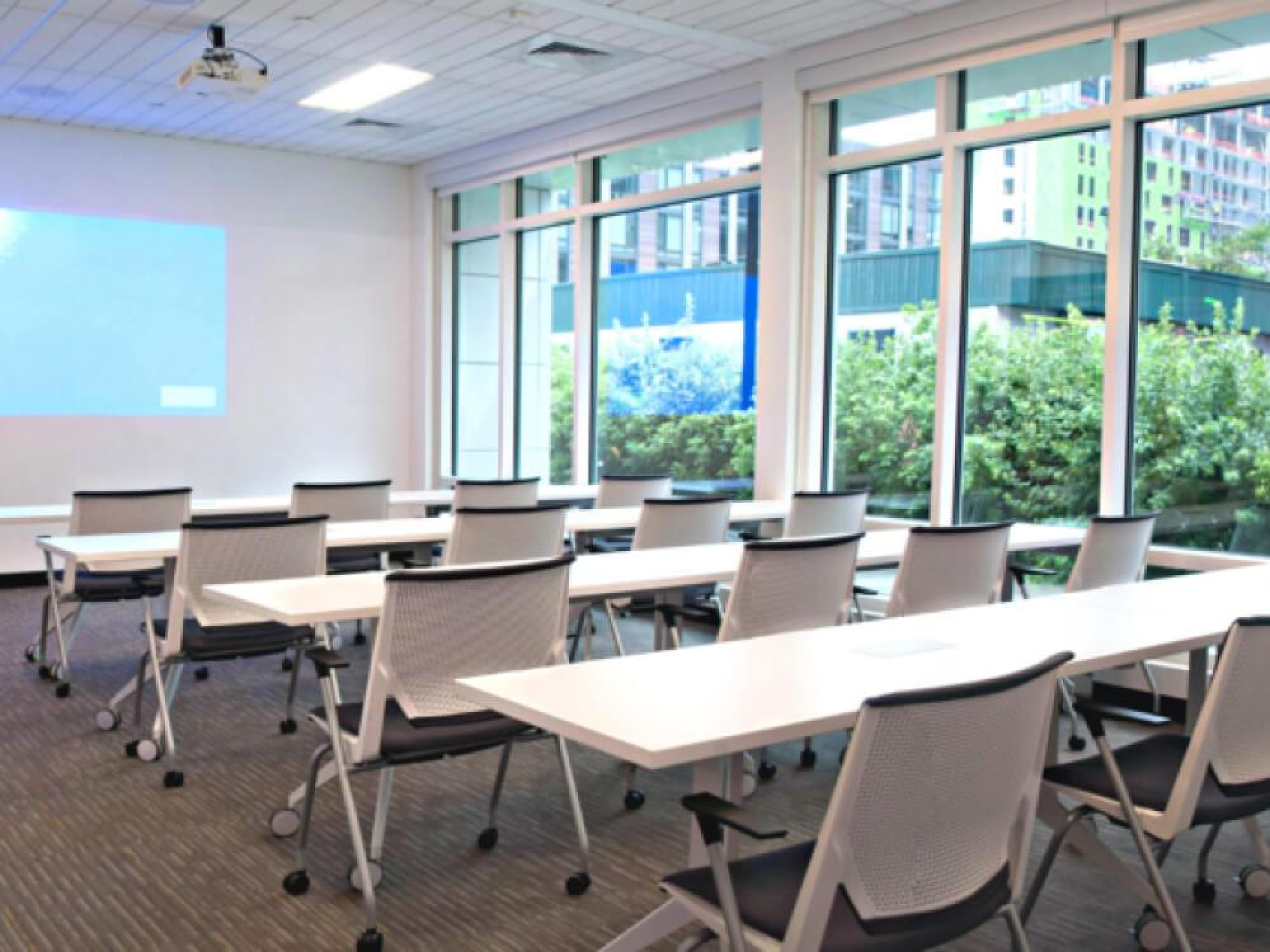

meeting room

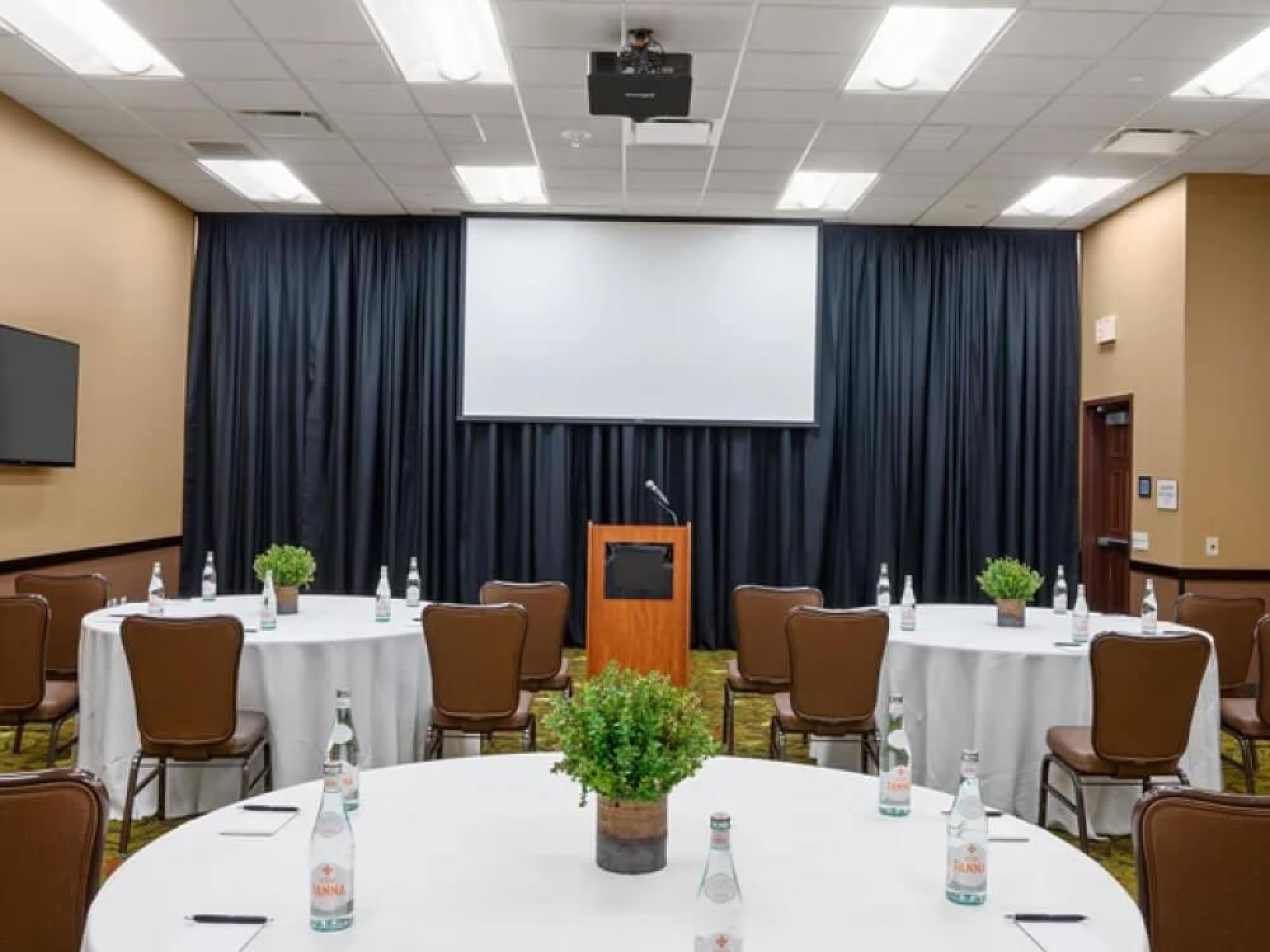

meeting room

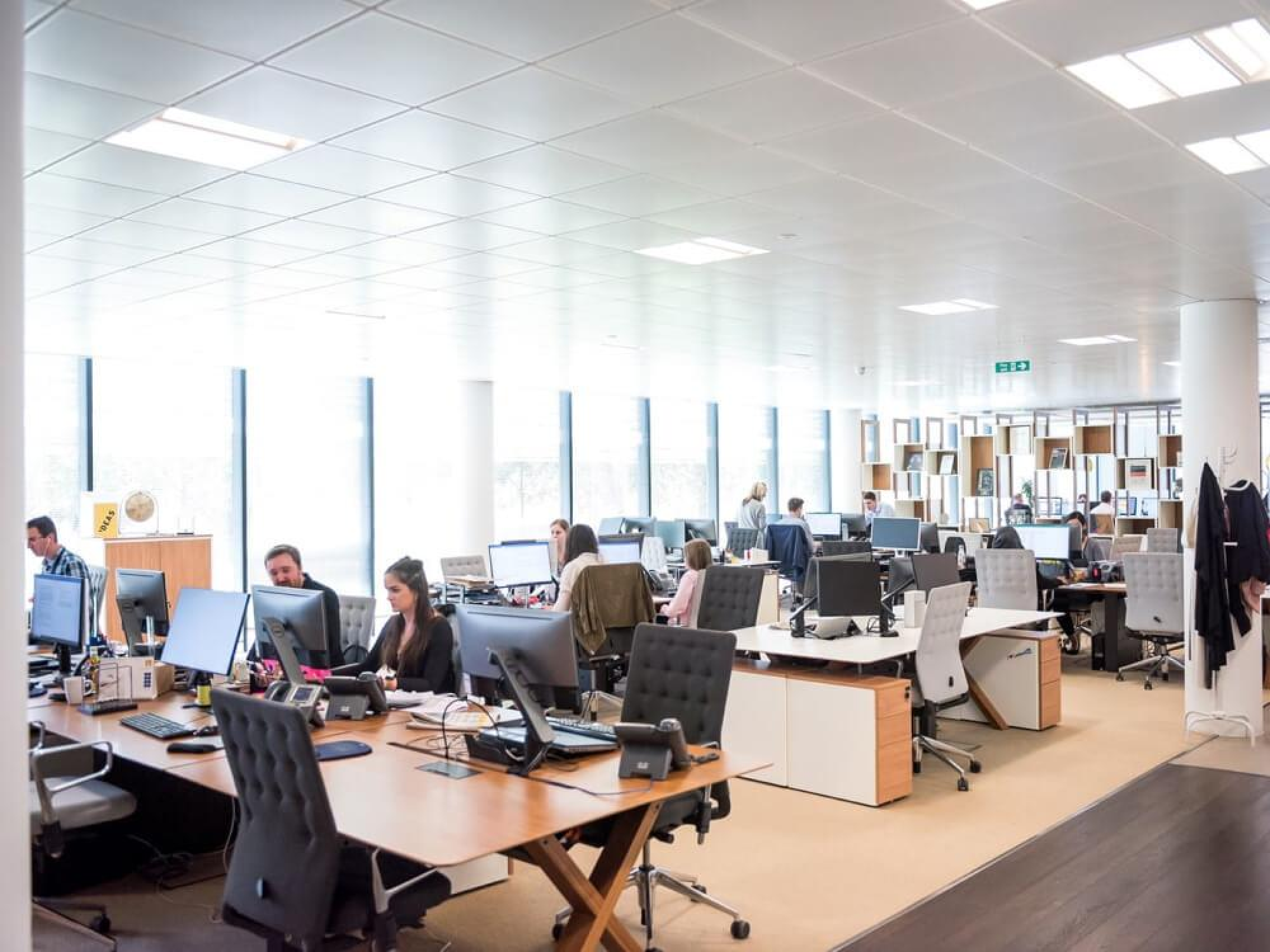

office

Specification Comparison

HG-L249C-22/20W/30W/35W
HG-L249C-22/30W/40W/50W
HG-L249C-14/30W/40W/50W
HG-L249C-24/30W/40W/50W
HG-L249C-24/30W/40W/50W
Size 603x603x55mm 1213x303x55mm 1213x603x55mm 1213x603x55mm 1213x603x55mm
Nominal Wattage 20/30/35W 30/40/50W 30/40/50W 30/40/50W 50/60/72W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4375 lm 6250 lm 6250 lm 6250 lm 9000 lm
Nominal Efficacy 125 lm/w 125 lm/w 125 lm/w 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
