LED Troffer retrofit kits upgrading fluorescent lighting fixture 2x2 2x4 CCT and Wattage selectable 3000-5000K 120-277V 0-10V dimming ETL and DLC listed emergency and sensor control ready

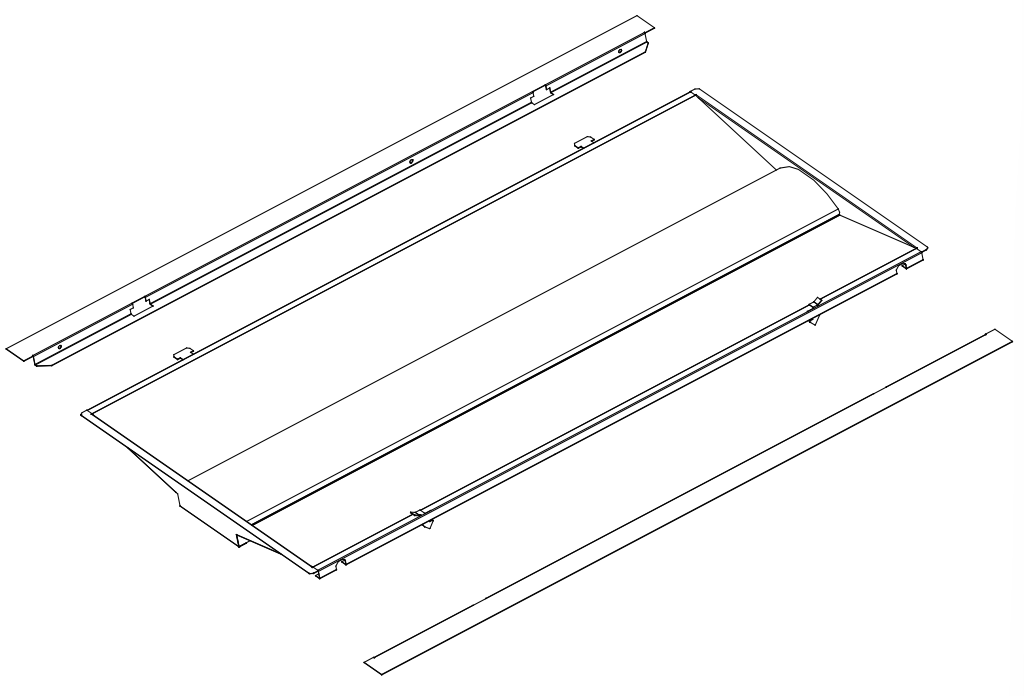

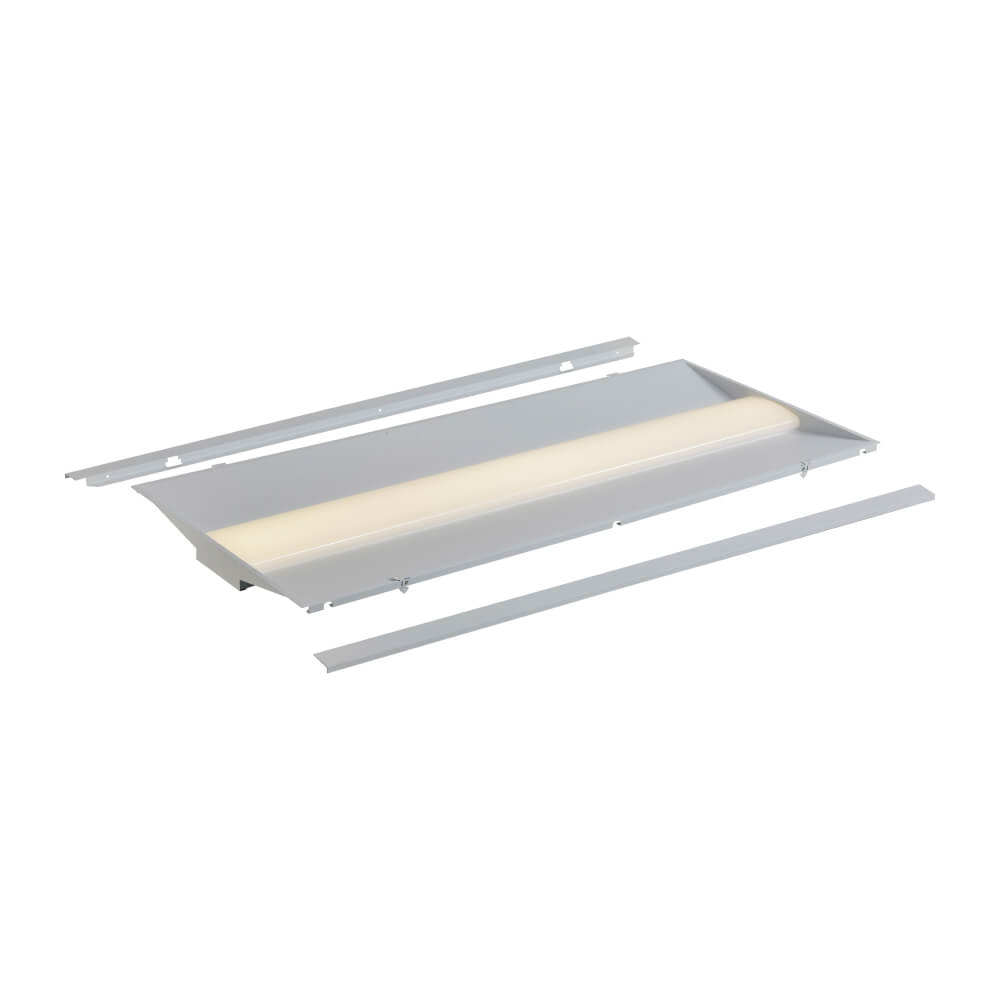

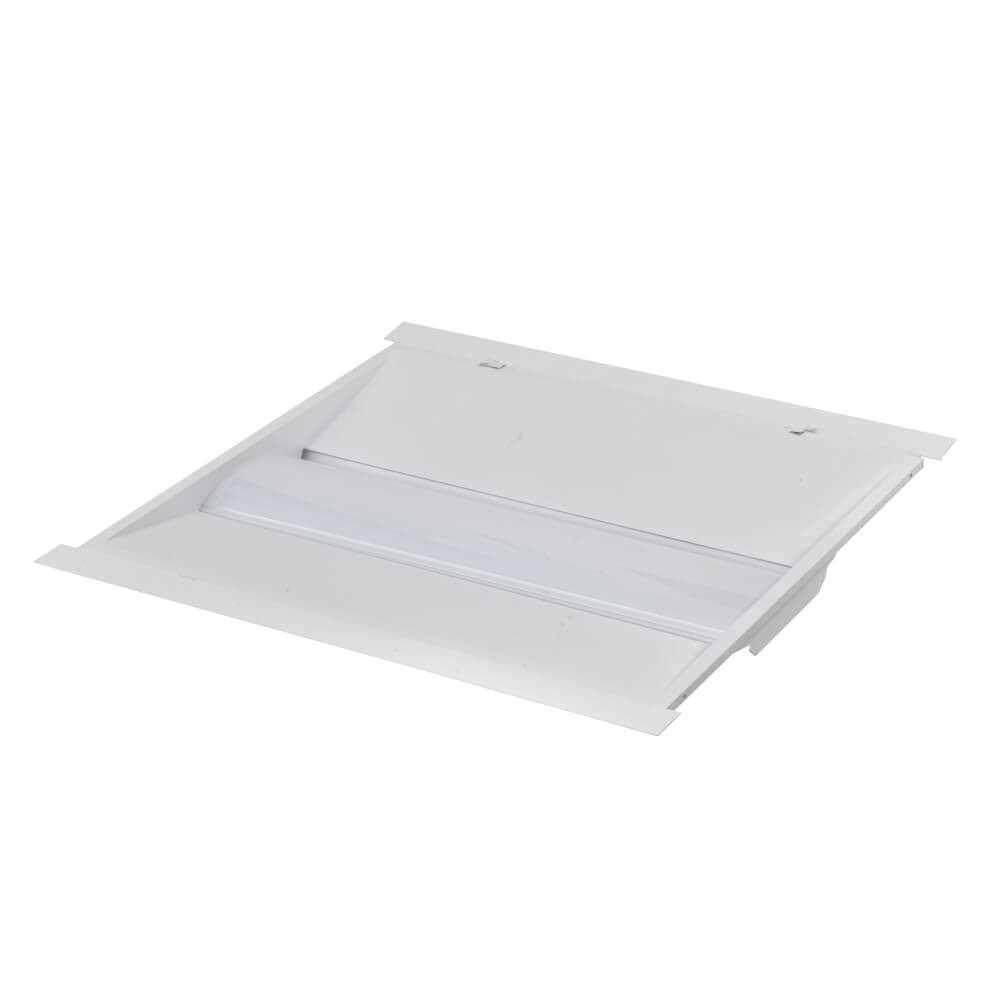

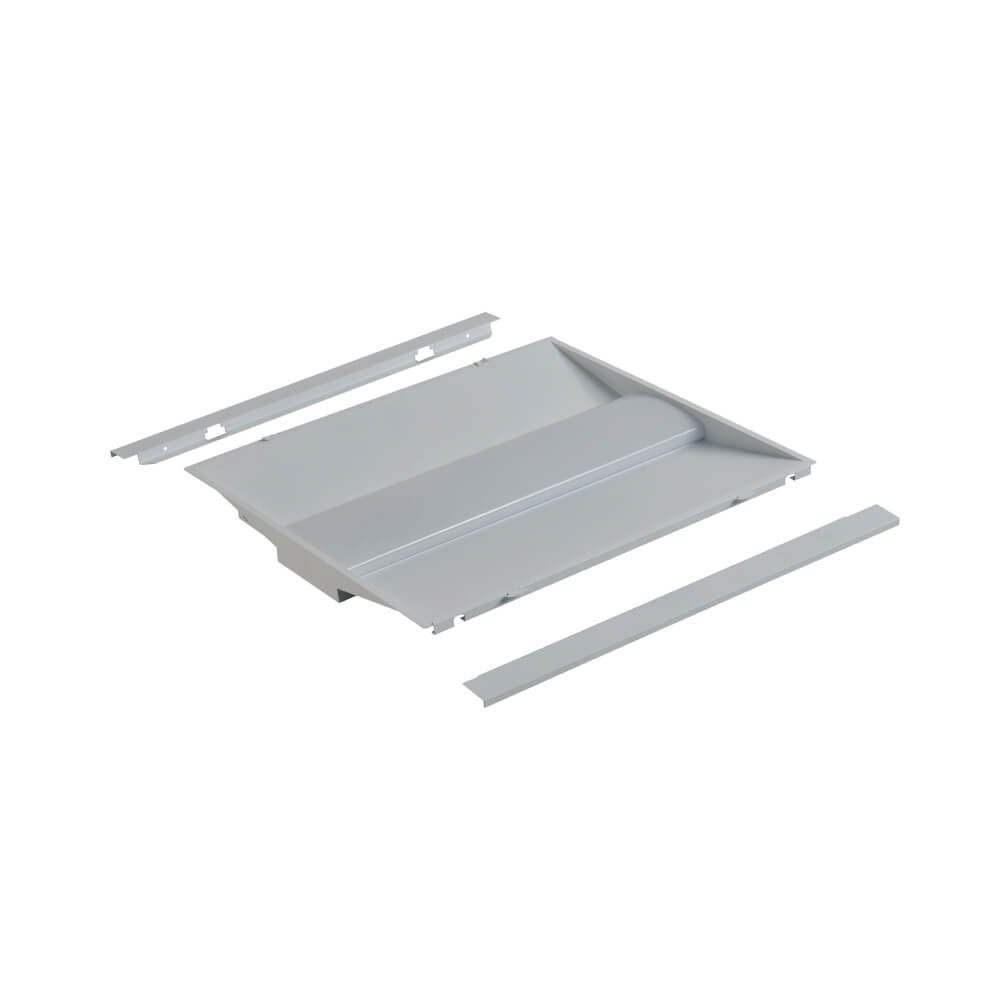

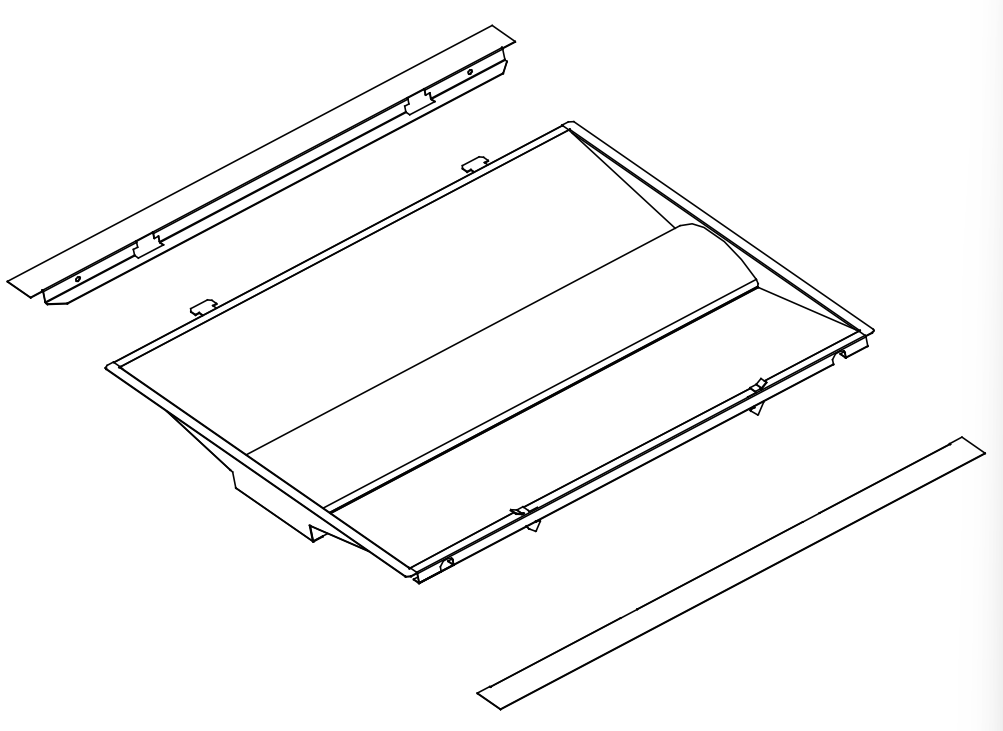

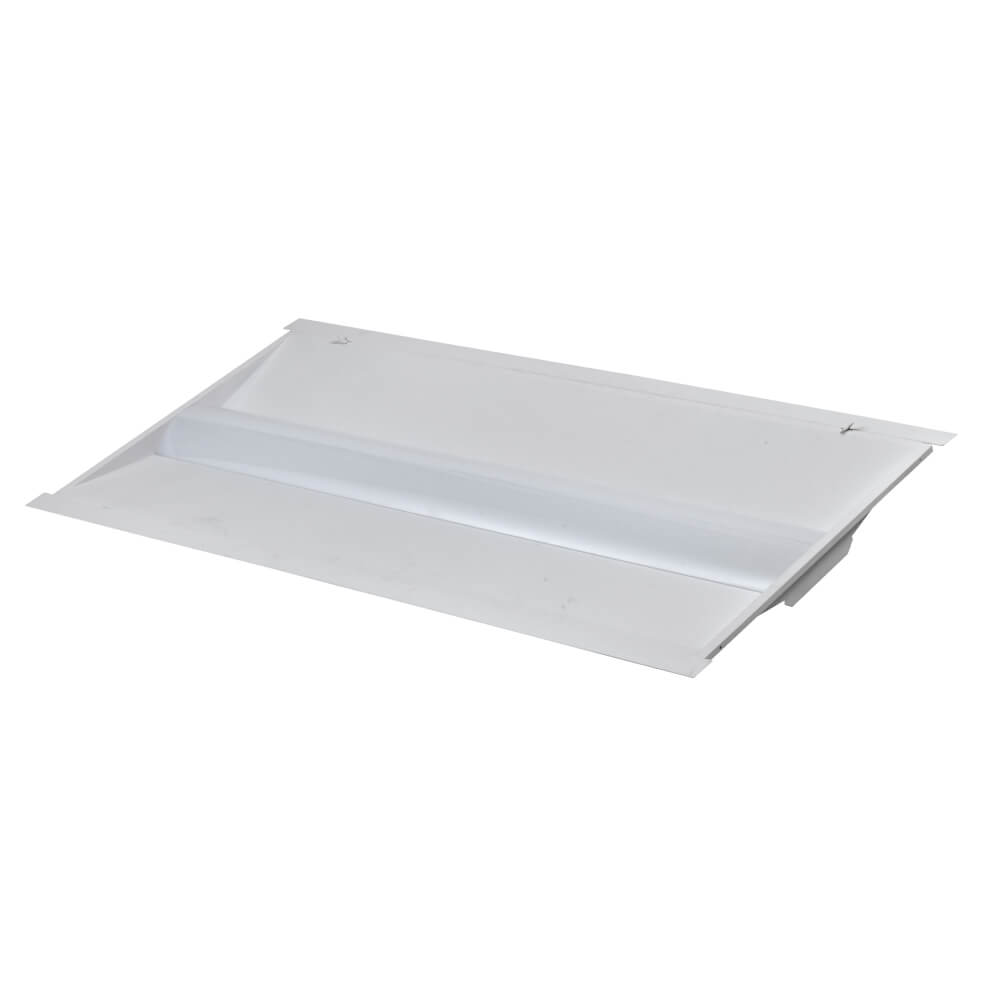

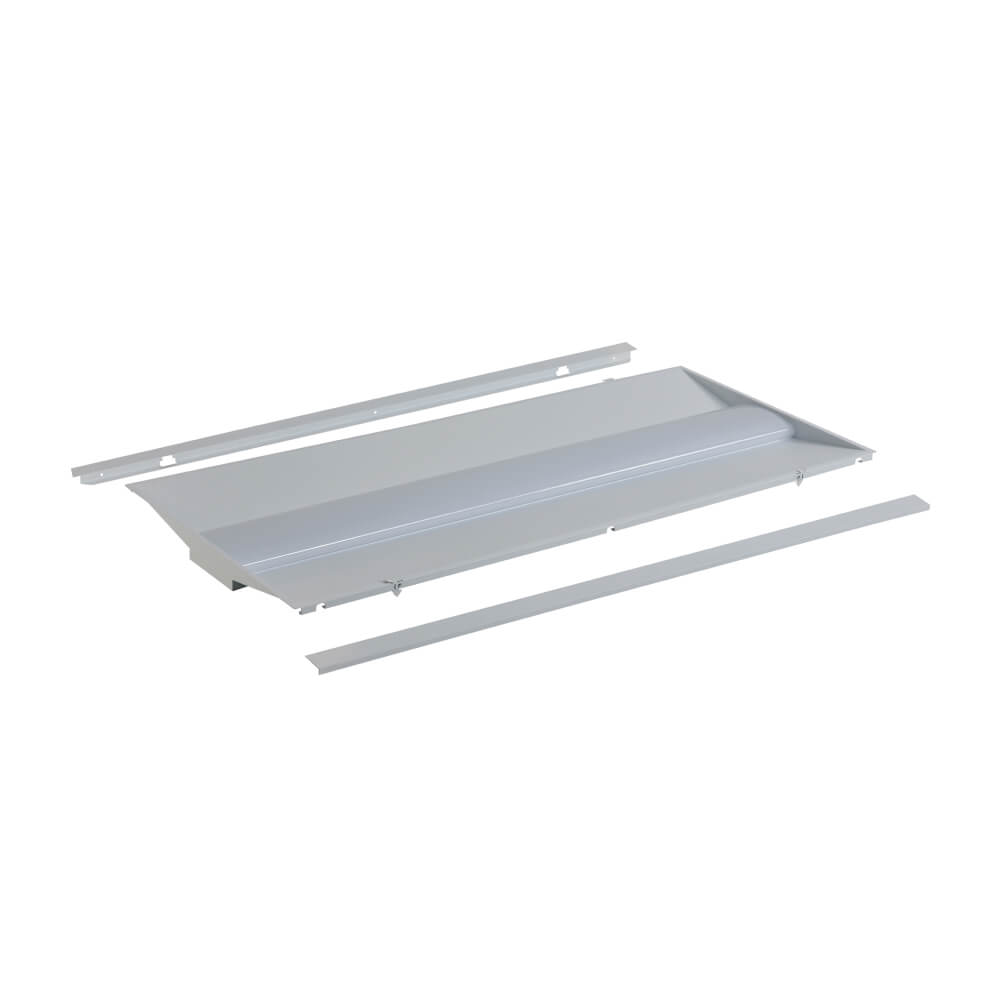

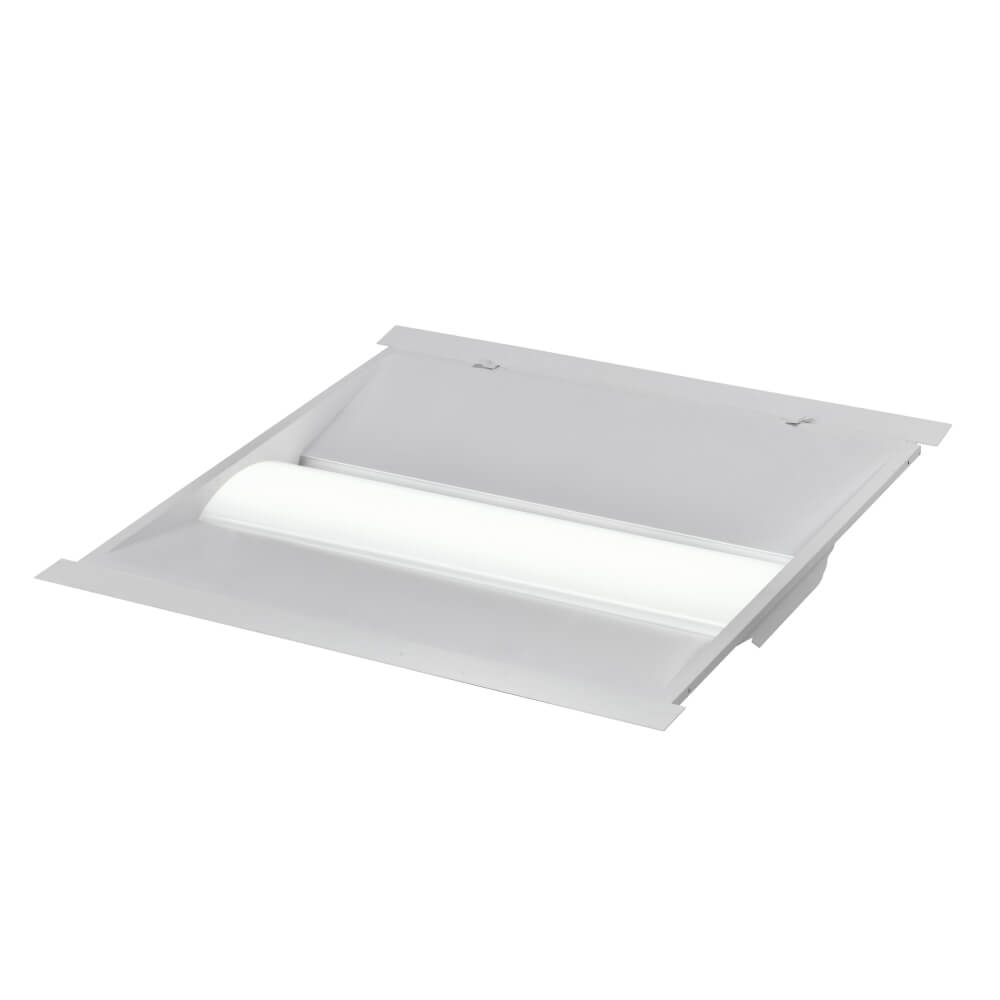

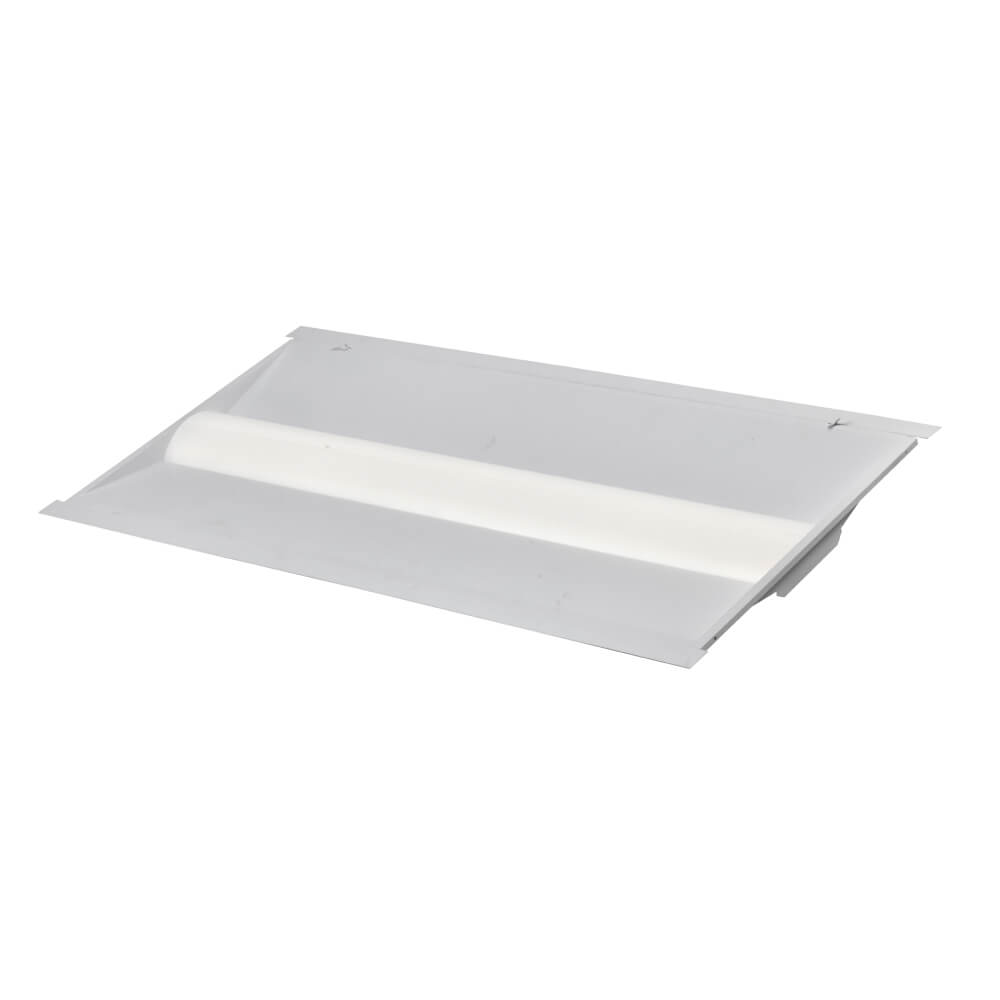

Eagleshine's innovative Troffer Retrofit Kit offers an economical solution to upgrade existing fixtures to LED technology. The Troffer Retrofit kit can be retrofitted into most existing troffers in under 15 minutes. Optional trim plates can be included and are a great way to give a "clean" look to the installed fixture. With a Wattage and CCT select option, each unit provides up to 9 variations of the product giving flexibility to the end users and distributors.

l 15W-35W various wattage selectable,
l 125 LPW, comes in 2'x2', 2'x4', 1'x4'
l Bluetooth control ready
l Emergency back up compatibility
l DLC NLC qualified, attractive for large utility rebates
l
office, education, health care, hospitality and retail interiors


Watts(W): 15W/20W/30W
Size: 2'x2'
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

2'x2', 2'x4'

Watts(W)

30W, 40W, 50W, 60W, 75W, 96W, 120W

Lumen(lm)

3750 lm-4375 lm

Heading

Value

CCT(K)

3000K / 3500K / 4000K / 5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

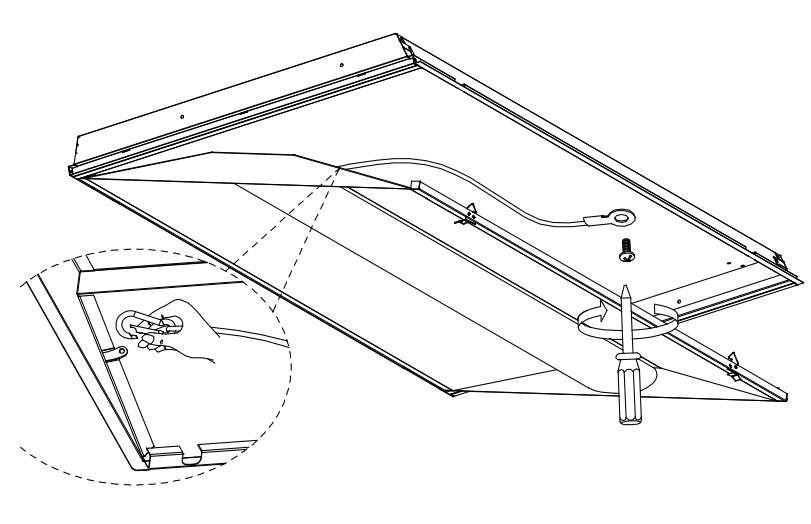

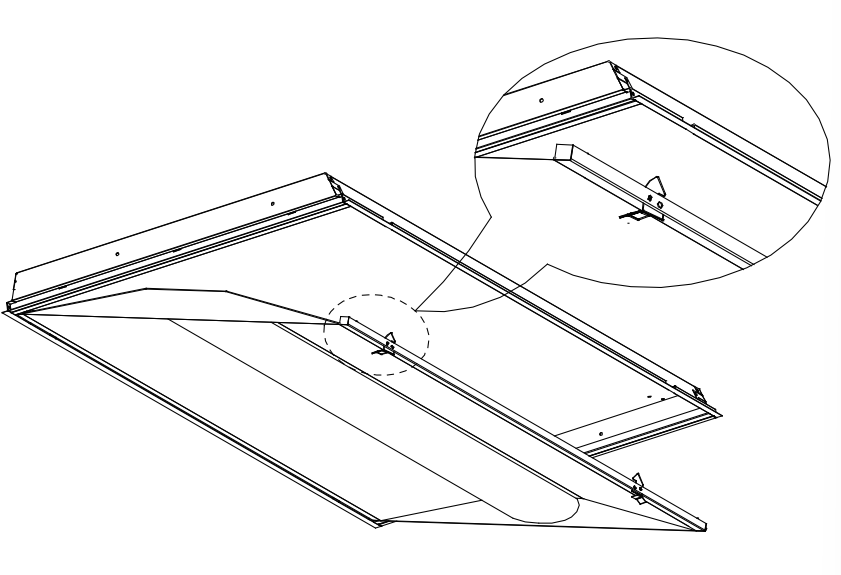

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification Comparison

HG-L249R-22-15W/20W/30W
HG-L249R-24-20W/25W/35W
Size 603x603x55mm 1213x603x55mm
Nominal Wattage 15W/20W/30W 20W/25W/35W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3750 lm 4375 lm
Nominal Efficacy 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years
