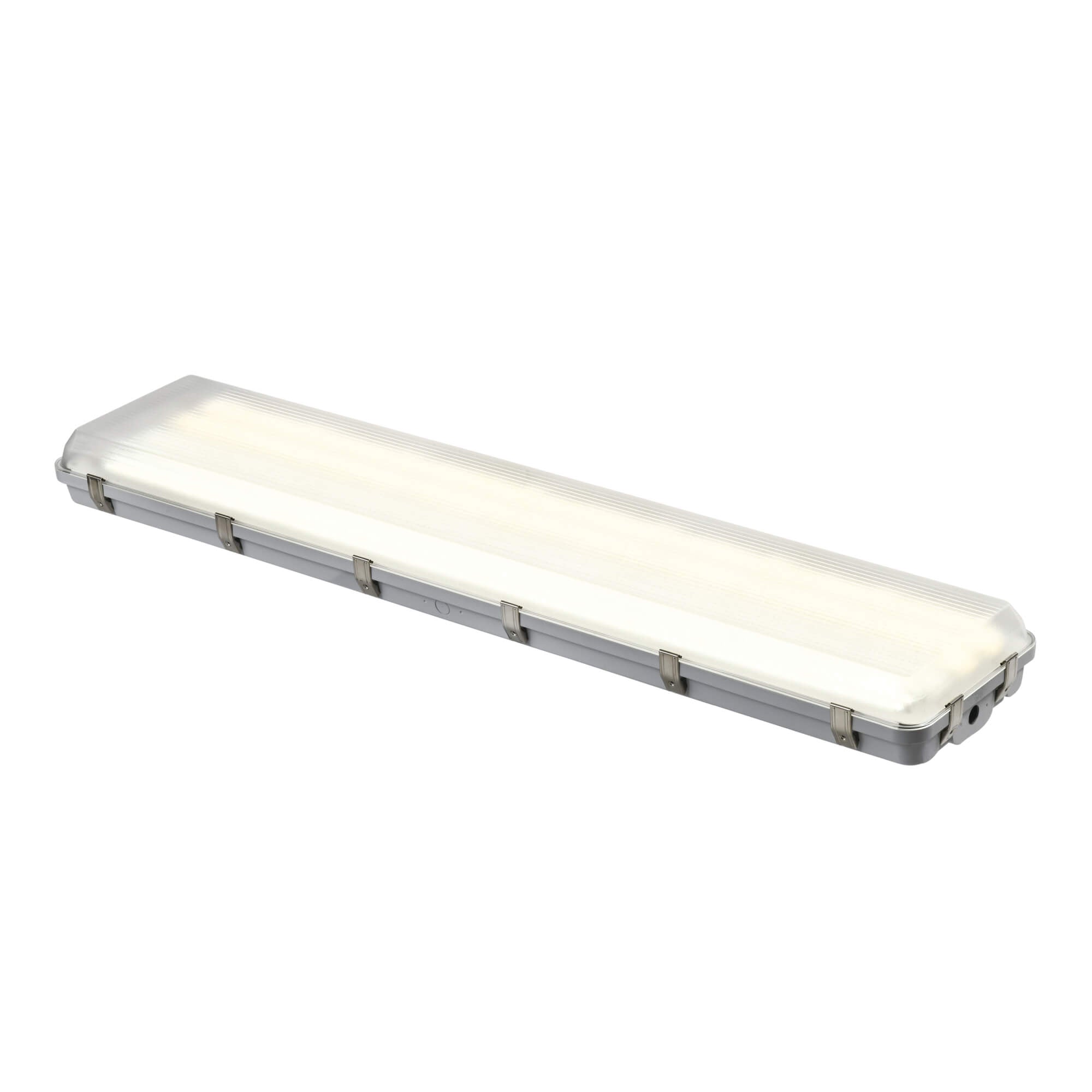

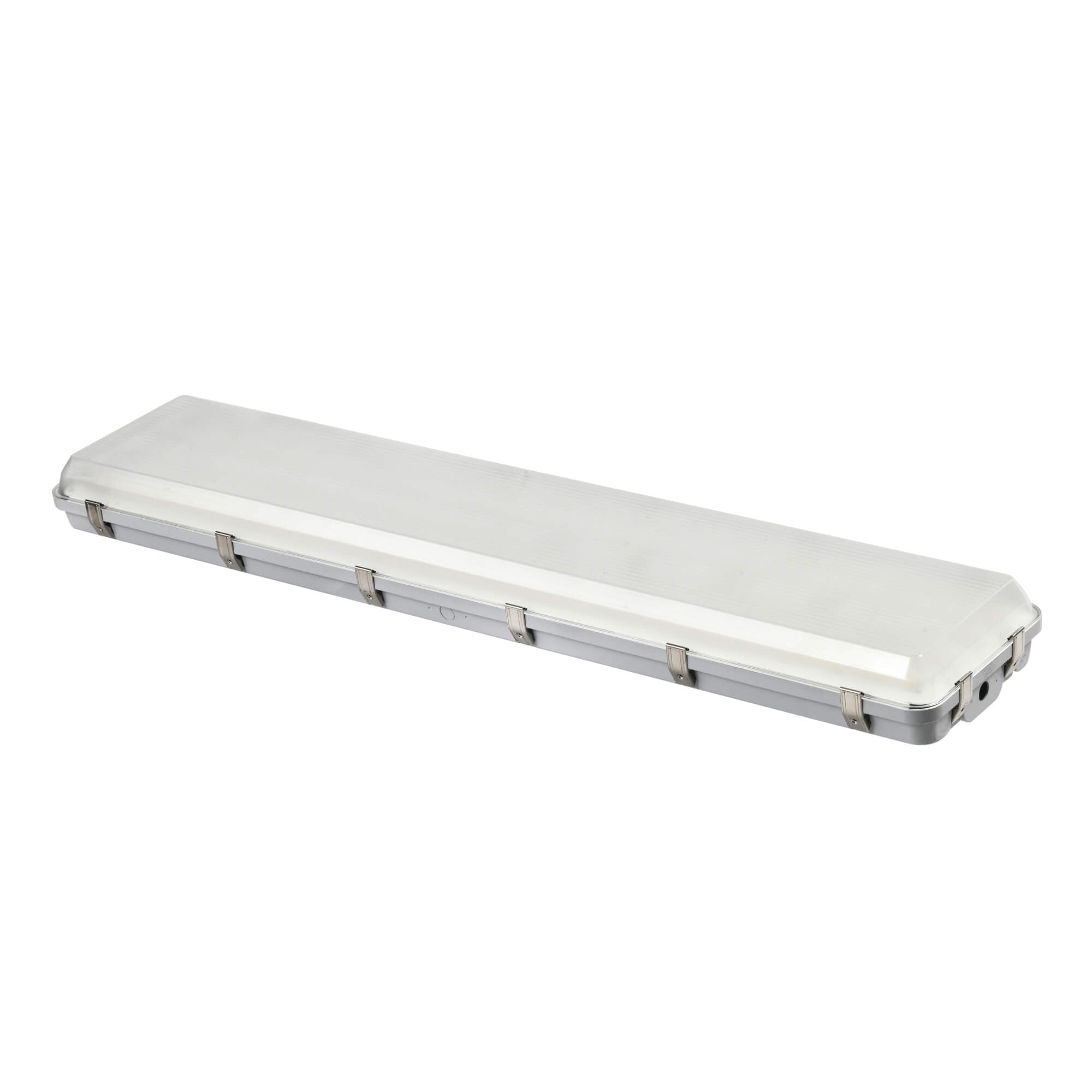

LED Vapor Proof Fixture high bay CCT and Wattage Selectable Dimmable 120-277V Emergency 90-min Battery Backup


Halcon Lighting's Vapor Tight LED light linkable fixtures are suitable for locations that can experience wet, humid or severe conditions such as industrial locations, metal or wood shop, parking garages, walkways, cold storage facilities with ease, it is IP65 rated and NSF certified which also can be used inside food processing plants. Available for wall mounted, ceiling and suspending applications. These Vapor Tight lights can provide outstanding value when it comes to energy efficiency. Halcon has the solution to meet your harshest lighting needs with a vast inventory of the industry's best lighting option.


Size: 2ft
Watts(W): 100W
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Model

C2202

Size

2ft

Watts(W)

100W/120W/150W

Lumen(lm)

19500 lm

CCT(K)

3000K/3500K/4000K/5000K

Qualifications

DLC Standard / DLC Premium.
ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup.

• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification Comparison

C2318-182F
C2318-364F
C2318-505F
C2318-608F
Size 1200x260x105mm 1200x260x105mm 1200x260x105mm 1200x260x105mm
Nominal Wattage 100W 120W 150W 150W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 19500 lm 19500 lm 19500 lm 19500 lm
Nominal Efficacy 130lm/W 130lm/W 130lm/W 130lm/W
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
