LED Vapor Tight Light Fixture Outdoor Waterproof LED Vapor Proof Light Fixture IP65 UL Approved 100-277Vac Input Voltage

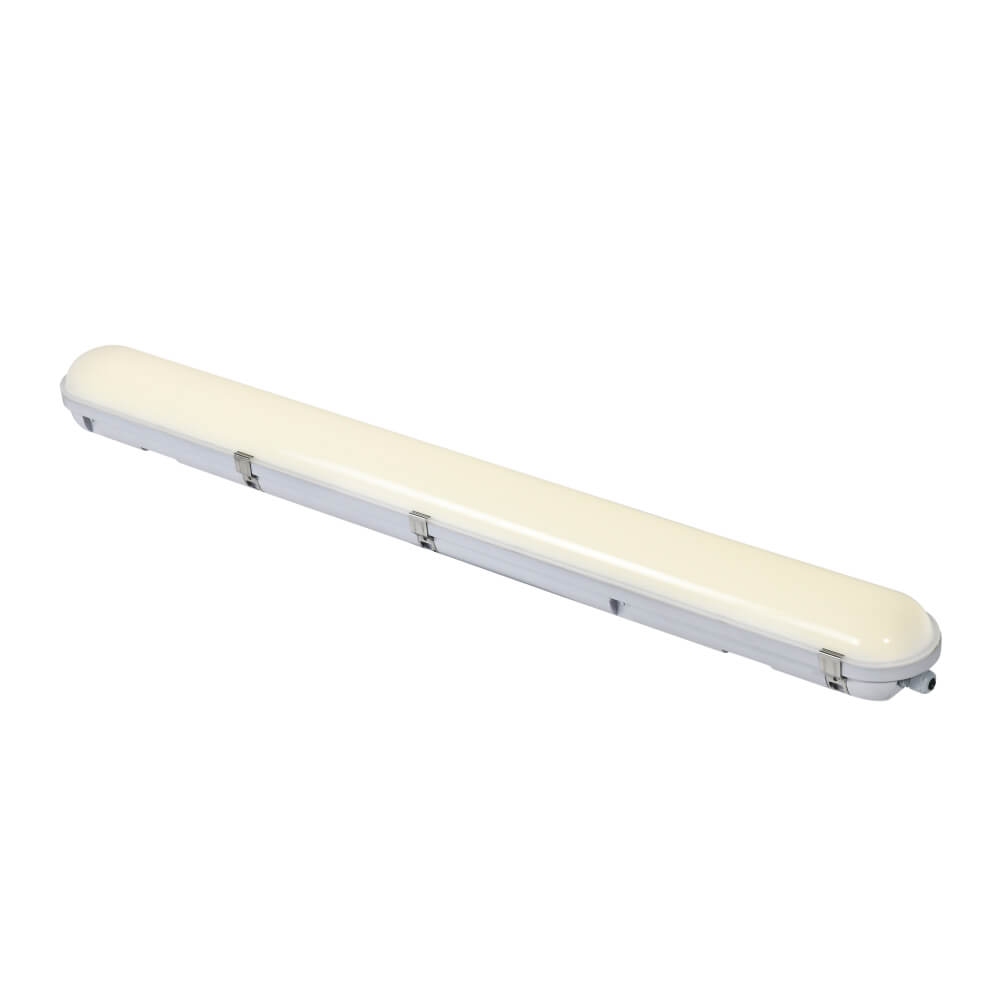

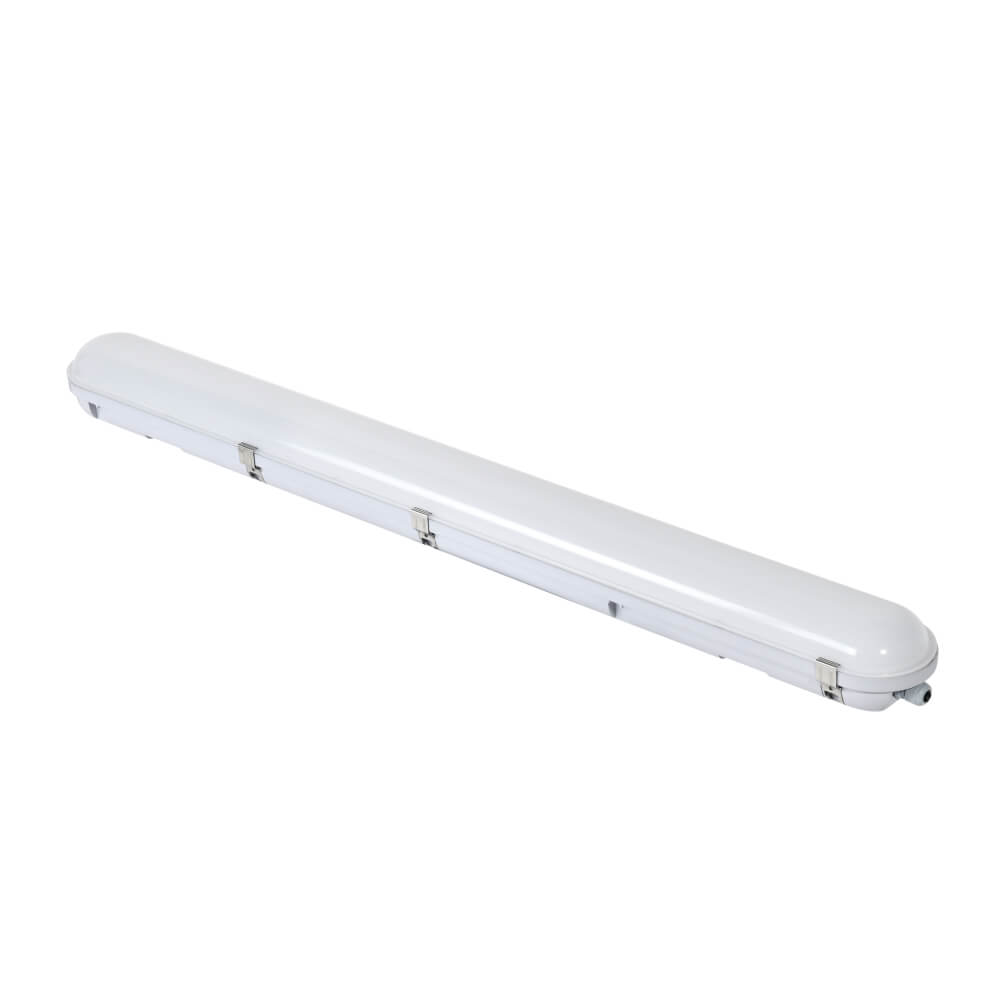

Illuminate Harsh Environments with Halcon’s Rugged Round Vapor Tight LED Lights

Engineered for wet industrial spaces, the Halcon HG-L223 vapor-tight LED delivers powerful illumination in a rugged round design. With an IP65 rating, these LED lights thrive in high-moisture areas like factories, parking garages and workshops.

Flexible Sizing From 2-8 Feet

Available in 2 and 4 foot sizes, the adaptable HG-L223 can be scaled to fit your application. Our adjustable CCTs (3000K-5000K) and wattages allow you to customize both the color temperature and brightness.

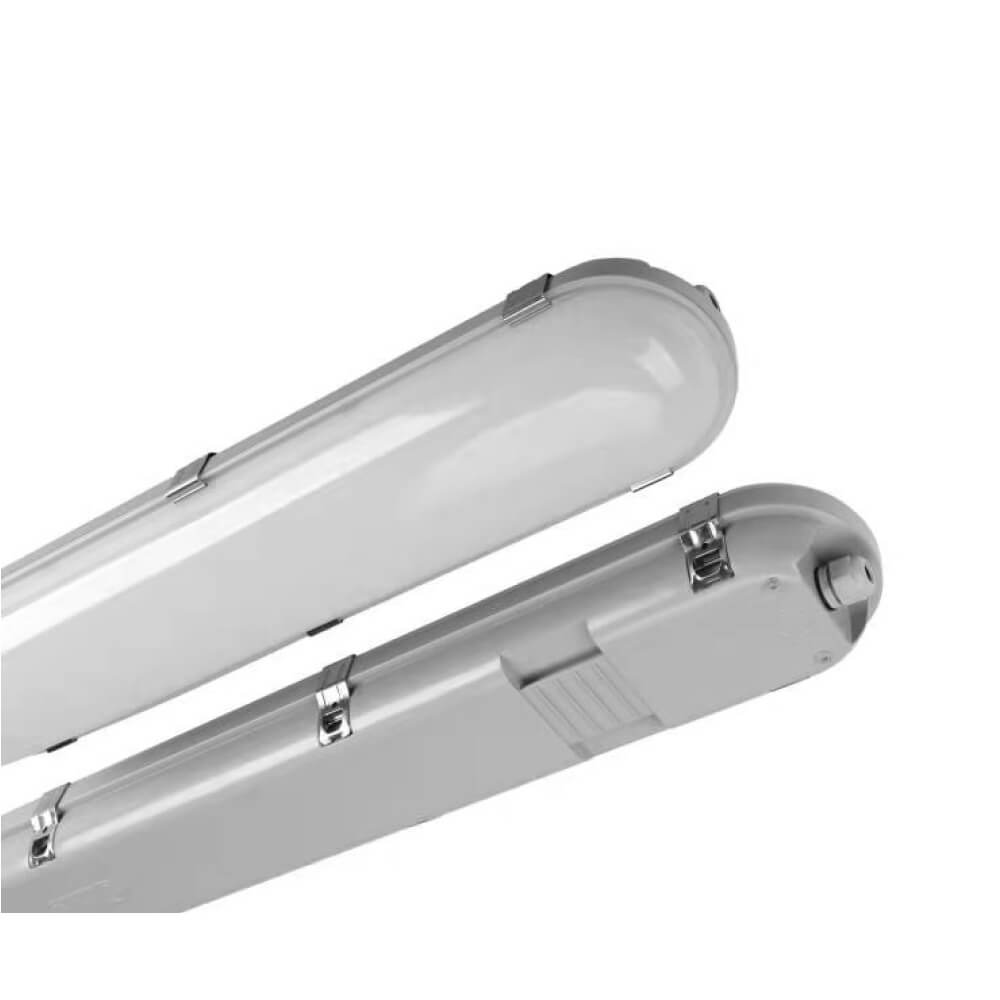

Sleek Round Profile, Heavy Duty Performance

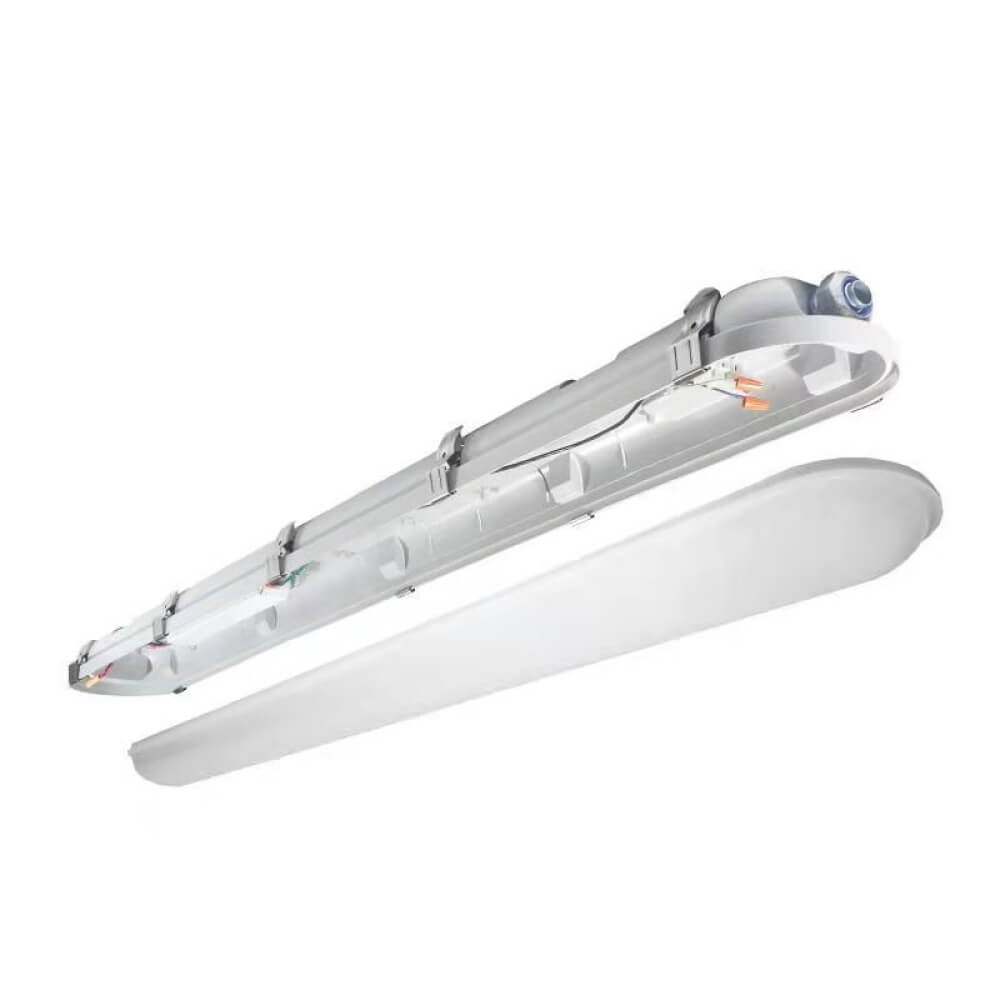

The streamlined round housing withstands both abuses and elements that damage other luminaires. Robust die-cast aluminum resists corrosive agents for long-lasting durability.

Unlock Energy Savings up to 130 Lumens per Watt

By upgrading to Halcon’s LED technology, save on energy costs and avoid frequent lamp changes. The HG-L223 replaces 400W+ metal halide and HPS lighting for upgraded performance.

Depend on Halcon’s vapor-tight LED lights to deliver high-quality illumination even in your most demanding industrial environments. Contact us today to upgrade your lighting.


Watts(W): 15W/20W/25W
Size: 2ft
Pay with Ease
Trusted Delivery

Product specification

Showcase specifications about a product to help your customers making an informed decision about their purchase.

Size

2ft, 4ft

Watts(W)

15W/20W/25W, 30W/40W/50W, 40W/50W/60W

Lumen(lm)

3250 lm-10400 lm

Heading

Value

CCT(K)

3000K / 3500K / 4000K / 5000K

Qualifications

DLC Standard / DLC Premium.ETL / CETL List

Files Download

Organize content into multiple columns to share useful information to your customers about your products, values...

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification Comparison

HG-L223-252F
HG-L223-504F
HG-L223-604F
HG-L223-804F
Size 600x110x88mm 1200x110x88mm 1200x110x88mm 1200x110x88mm
Nominal Wattage 25W/20W/15W 50W/40W/30W 60W/50W/40W 80W/70W/60W
Input Voltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3250 lm 6500 lm 7800 lm 10400 lm
Nominal Efficacy 130lm/W 130lm/W 130lm/W 130lm/W
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
