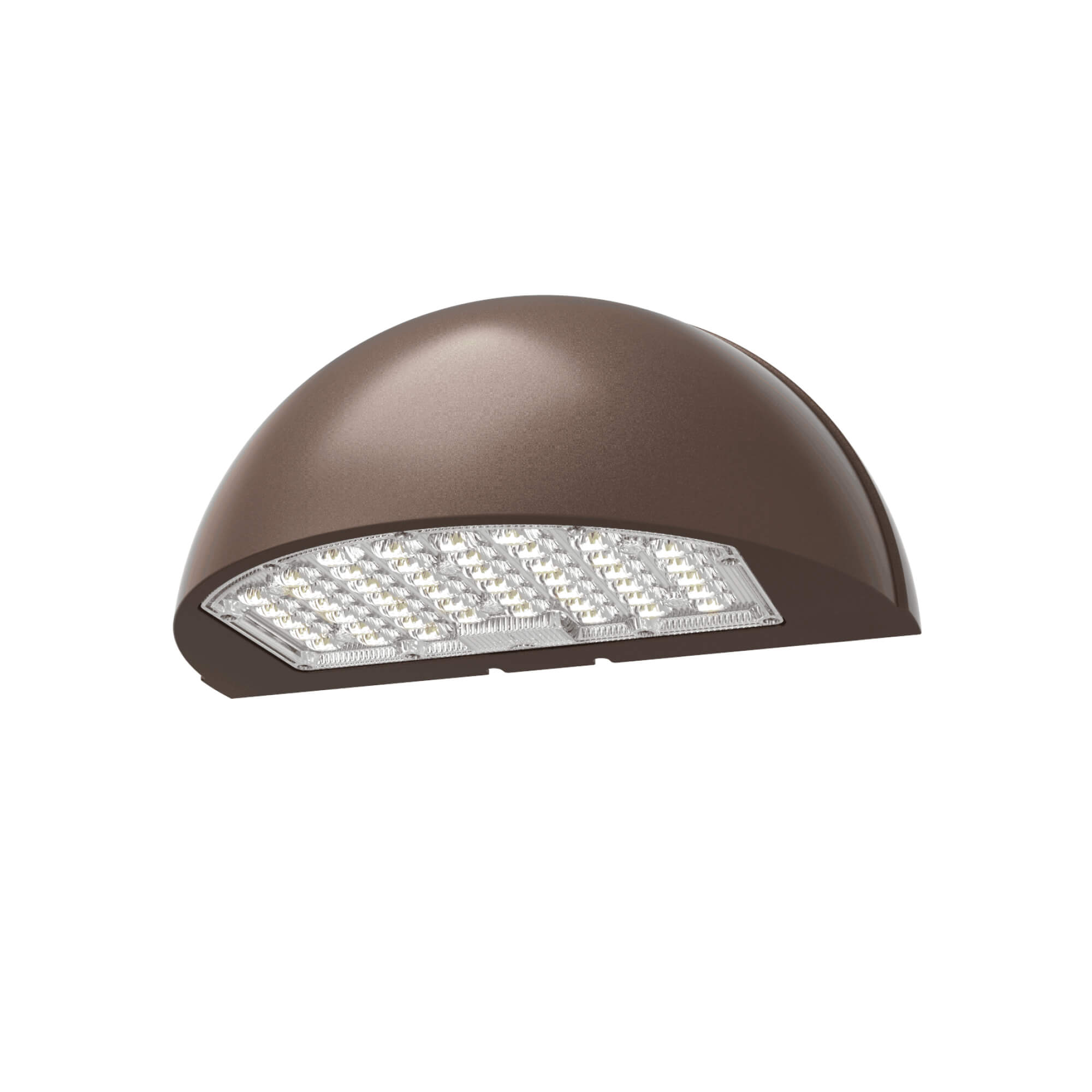

Eagleshine Wall Packs WALL PACKS EAGWP-HM03
Illuminate your outdoor spaces with our cutting-edge LED Wall Pack Lights. An efficient LED Wall Pack is ideal for brightening your exterior commercial buildings and outdoor areas. Designed to provide superior brightness and energy savings, LED wallpacks offer unparalleled performance compared to traditional lighting options. Enhance security, visibility, and aesthetics with these high-quality outdoor building lights. Discover our selection wall pack LED lights with photocell options for dusk to dawn operation.
Product specification
Showcase specifications about a product to help your customers making an informed decision about their purchase.
330mm / 13"x175.1mm / 6.89"
24W, 32W, 40W, 48W, 64W, 80W
3240 lm - 10800 lm
3000K / 3500K / 4000K / 5000K
DLC Standard / DLC Premium.
ETL / CETL List
Files Download
Organize content into multiple columns to share useful information to your customers about your products, values...
Design and Installation
Feactures
Available
Switchable Color and Adjustable Lumen Technology. Faster installation and
cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)
Controls Features
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
Accessories
SENSOR control, Emergency kits, suspension kits.
Use Cases
Organize content into multiple columns to share useful information to your customers about your products, values...
Warehouse

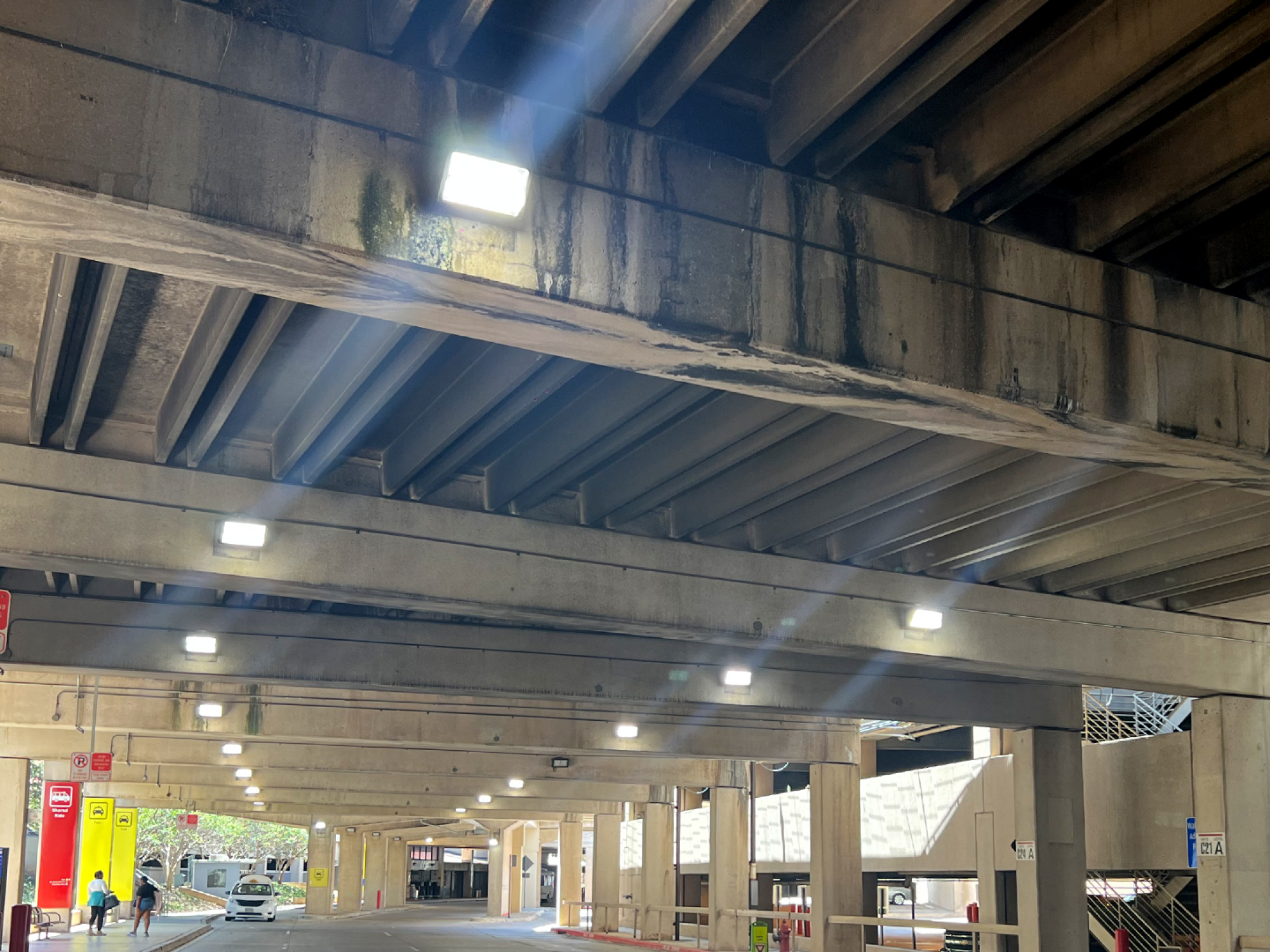

Parking Lot
Specification Comparison
 EAGWP-24W-HM03
|
EAGWP-32W-HM03
|
EAGWP-40W-HM03
|
EAGWP-48W-HM03
|
EAGWP-64W-HM03
|
EAGWP-80W-HM03
|
|
| Size | 330mm / 13"x175.1mm / 6.89" | 330mm / 13"x175.1mm / 6.89" | 330mm / 13"x175.1mm / 6.89" | 330mm / 13"x175.1mm / 6.89" | 330mm / 13"x175.1mm / 6.89" | 330mm / 13"x175.1mm / 6.89" |
| Nominal Wattage | 24W | 32W | 40W | 48W | 64W | 80W |
| Input Voltage | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V | AC 120-277V, 120-347V |
| Lumen Delivered | 3240 lm | 4320 lm | 4320 lm | 4320 lm | 4320 lm | 4320 lm |
| Nominal Efficacy | 135 lm/w | 135 lm/w | 135 lm/w | 135 lm/w | 135 lm/w | 135 lm/w |
| CCT | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K | 3000K/3500K/4000K/5000K |
| CRI | >80 | >80 | >80 | >80 | >80 | >80 |
| Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| Dimming | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V | 0-10V |
| Operating Temperature | : -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | : -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | : -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | : -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | : -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) | : -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
